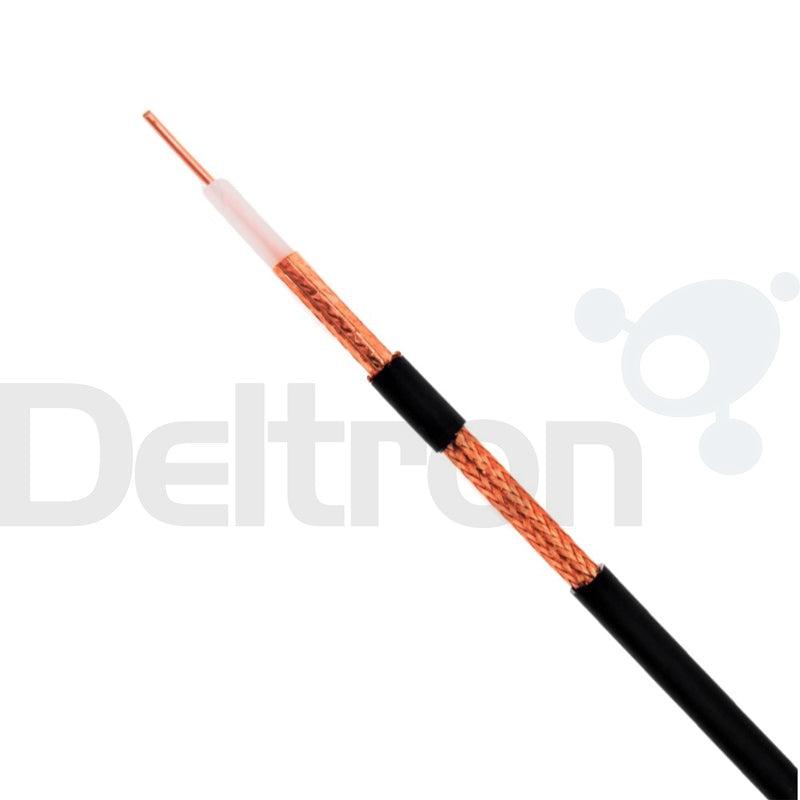

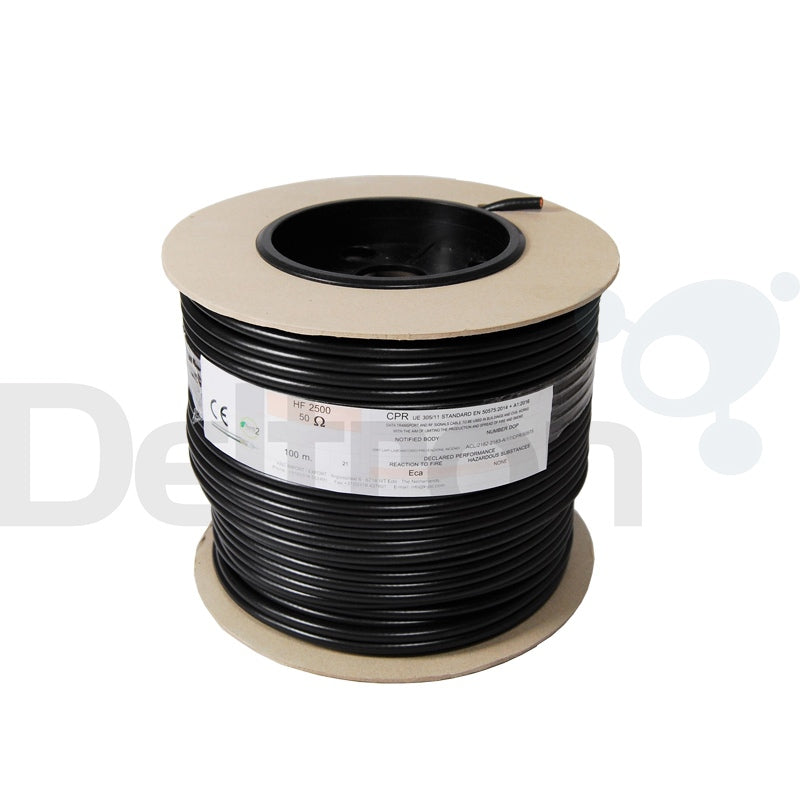

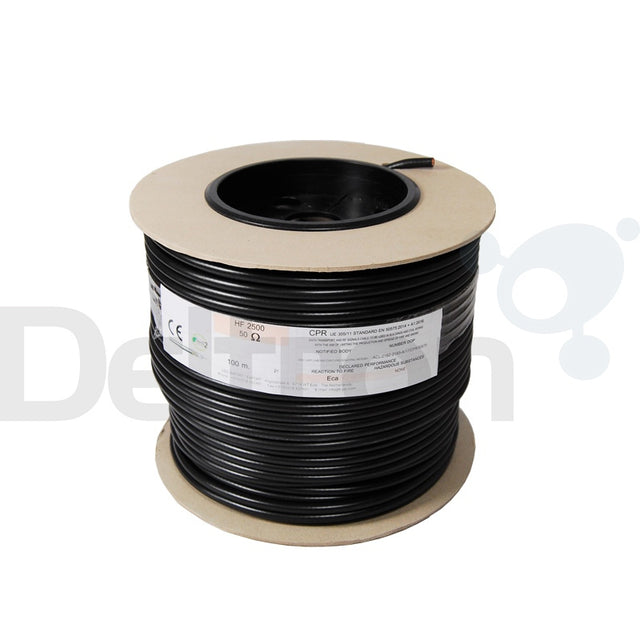

HF2500 coax

• Plain copper inner conductor: 7 x 0,65 mm
• Low density polyethylene dielectric: ø 5,00 ± 0,10 mm
• Plain copper outer conductor: h. 18 mm
• Percentage coverage: 100%
• Sheath color: Black - RAL 9004
• Copper weight: 3.47 kg (100m)
• Cable weight: 7.3 kg (100m)
• Impedance: 50 ± 3 Ohm
• Capacitance: 80 pF/m
• Velocity ratio: 80%
• Inner conductor resistance: 7,8 Ohm/Km
• Temperature range: -30°C to +70°C

Attenuations dB/100m

• 5 MHz: 2.7 dB
• 10 MHz: 4.1 dB
• 50 MHz: 9.7 dB
• 100 MHz: 14.0 dB
• 200 MHz: 20.5 dB
• 400 MHz: 30.2 dB
• 500 MHz: 34.5 dB
• 600 MHz: 38.3 dB
• 800 MHz: 45.5 dB
• 1000 MHz: 52.3 dB
