Antennas play a crucial role in any communication system. Without them, we would not be able to send and receive radio or wireless data signals. However, antennas come in different shapes and sizes, each with their own advantages and disadvantages. Two of the most commonly used types of antennas are omnidirectional and directional antennas. Knowing the difference between these antennas is essential to understanding which type is best suited for your application. This is because directional and omnidirectional antennas have different reception, transmission, and power characteristics.
If you want to learn more about the differences between an omnidirectional antenna and a directional antenna and how they can affect your communications system, read on. This article will cover the basics of both types of antennas so you can decide which is best for you.
What is an omnidirectional antenna?
As the name suggests, omnidirectional antennas receive signals equally well from all directions. This means that they have a 360-degree reception pattern and are generally omnidirectional in both the vertical and horizontal planes. Omnidirectional antennas are usually designed to have balanced antenna gain across all frequencies, allowing them to receive signals from any direction and provide consistent coverage over a wide area.
Omnidirectional antennas are most commonly deployed on base stations, cellular sites, and wireless access points. They are often used in coverage, monitoring, and point-to-multipoint applications. However, a disadvantage of omnidirectional antennas is that they have low gain, which means that they require more power to transmit signals over longer distances. This can be a problem in applications that require long-distance coverage due to weak signal strengths.
How do omnidirectional antennas work?
When omnidirectional antennas are in use, they transmit and receive signals equally from all directions. This is due to the omnidirectional radiation pattern of the antenna, which allows it to receive signals from a wide range of frequencies.
The pattern of an omnidirectional antenna is generated by the physical design of the antenna. This pattern is usually shaped like a donut, with the antenna in the center. The design includes multiple antenna arrays, such as dipoles (two or more antenna elements) and vertical rods. These radiating elements work together to create the omnidirectional radiation pattern. As radio waves pass through the antenna, the elements pick them up and send them in a complete circle. This allows omnidirectional antennas to pick up signals from all directions at the same time.
Advantages of Omnidirectional Antennas
Here are some of the key benefits of omnidirectional antennas:
- Receive signals from all directions: Their omnidirectional radiation pattern allows them to capture signals from multiple directions simultaneously, making them ideal for applications requiring long-range wireless transmission.
- Enhances 4G and 5G Signals: By boosting 4G or 5G signals, users can experience faster speeds, improved data capacity, and better signal coverage.
- Easy installation: Omnidirectional antennas are relatively easy to install and require minimal effort as they do not require aiming to work.

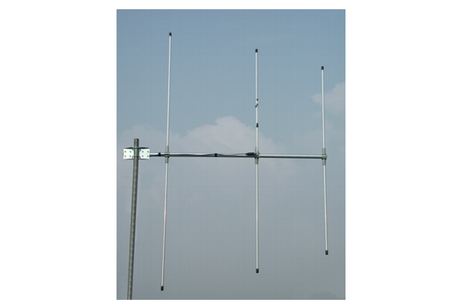

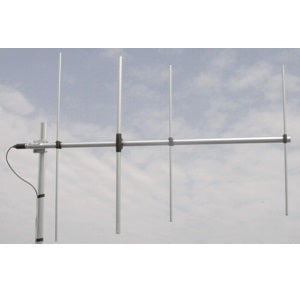

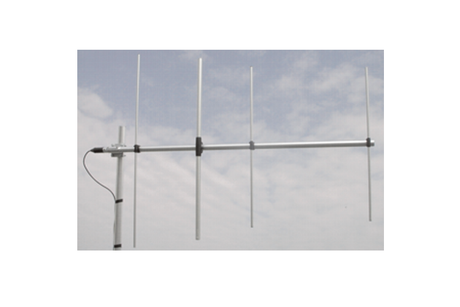

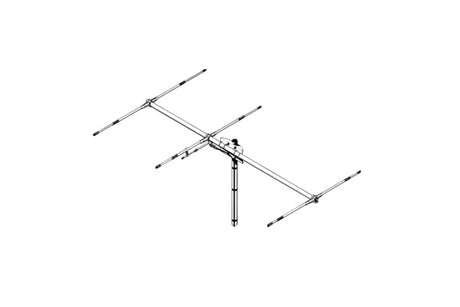

What is a directional antenna?
A directional antenna transmits or receives signals in only one specific direction. Unlike omnidirectional antennas, directional antennas have a more concentrated beam that is designed to focus more energy in one direction. This makes them more powerful than omnidirectional antennas and better suited for long-distance transmission.
Directional antennas have a higher signal gain than omnidirectional antennas, allowing them to transmit signals over longer distances. This makes them an ideal choice for applications that require a more focused and specific transmission range. For example, directional antennas are often used for satellite communications, radio astronomy, and long-range wireless networks.
How do directional antennas work?
When comparing a directional antenna to an omnidirectional antenna, directional antennas have a much smaller angular coverage. This narrow beam of radio signal strength is created by the physical design of the antenna and allows it to transmit and receive signals in a specific direction.
To achieve this narrow beam, directional antennas use antenna elements such as dipoles and parabolic dishes. These elements are arranged in such a way that they create a concentrated beam of radio frequencies. This beam allows directional antennas to transmit and receive signals more efficiently than omnidirectional antennas.
The benefits of directional antennas
Here are some of the key benefits of directional antennas:
- More powerful than omnidirectional antennas: Directional antennas have a much higher antenna gain than omnidirectional antennas, allowing them to transmit signals over longer distances.
- Suitable for areas where cell towers are further apart: Directional antennas can focus and amplify signals over long distances, making them ideal for rural areas that lack the infrastructure to support omnidirectional antennas.
How do you determine which type of antenna you need?
Now that you understand the basics of an omnidirectional antenna versus a directional antenna, you may be wondering which type is best for your application. Ultimately, the decision will depend on your specific requirements and the environment in which you plan to use the antenna. Omnidirectional antennas are best for applications that require a wide reception range, while directional antennas are better suited for a more focused and specific transmission.
Understanding the differences between these two antenna types will help you make an informed choice that will optimize your communications system. Whether you choose the versatility of an omnidirectional antenna or the power of a directional antenna, both play a vital role in enabling effective and reliable wireless communications.
Whether you are looking for the versatility of an omnidirectional antenna or the power of a directional antenna, understanding the differences between the two can help you make the best choice for your communications system. Both antenna types offer unique benefits that can significantly improve your communications performance.
