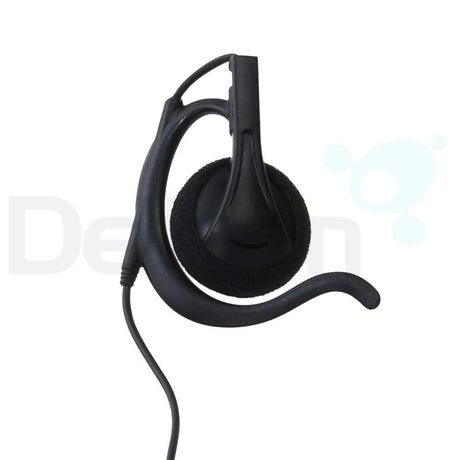

At Deltron we offer a wide range of earphones with microphones, also called ear microphones, that are compatible with different types of walkie-talkies. It is essential to know which connection your device needs. You will usually find the specifications of the required connector in the manual or description of your radio. Below you will find an overview of the most common connector types and their compatibility.

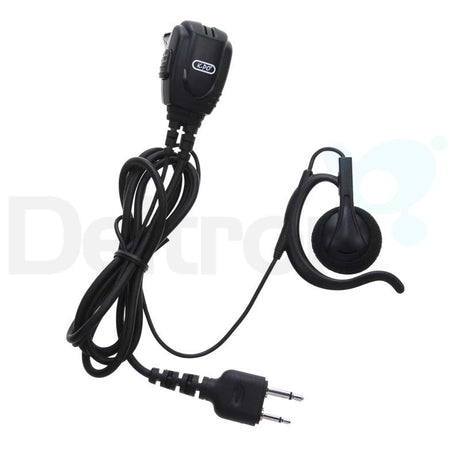

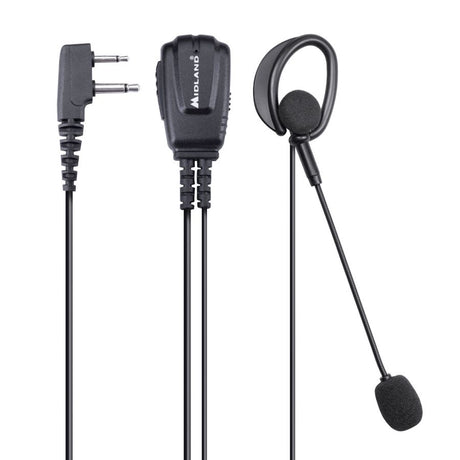

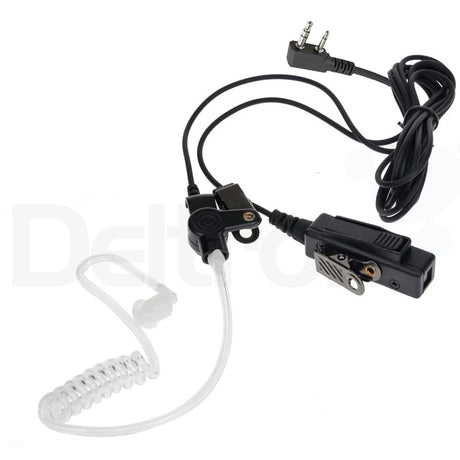

Standard S Connector

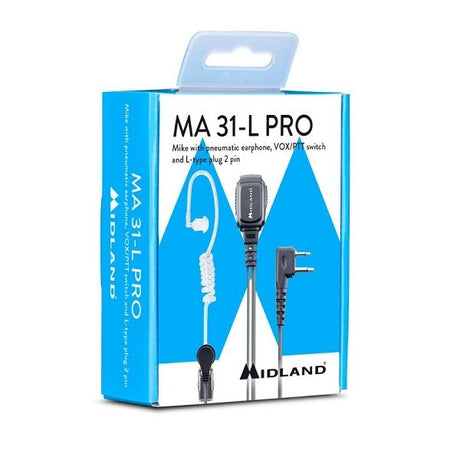

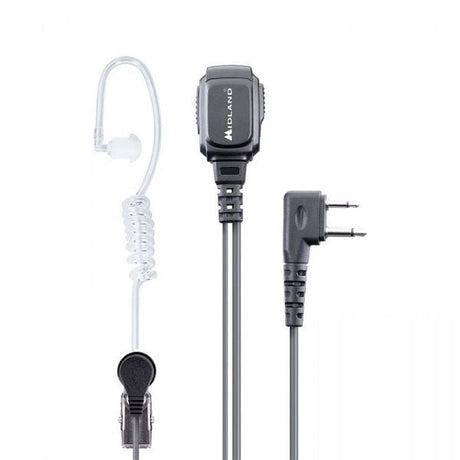

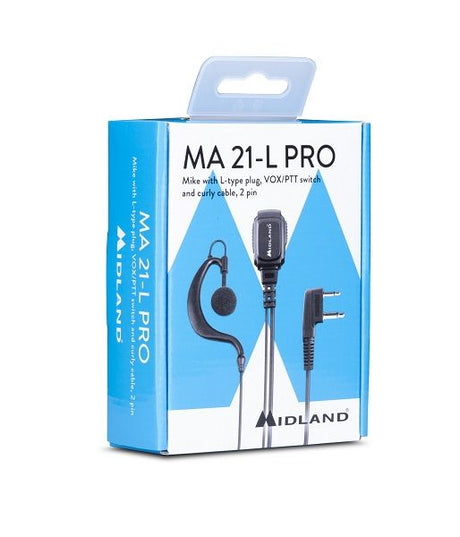

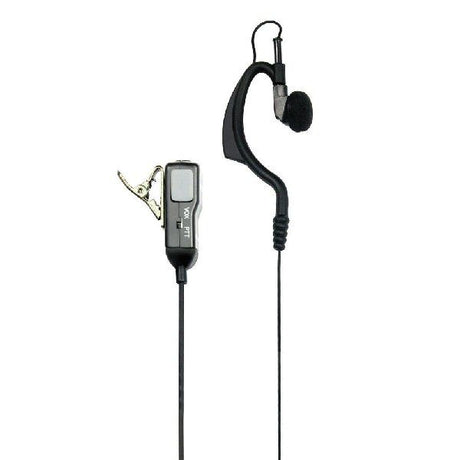

The Standard S connector is a 2-pin straight connection with a 3.5mm mono and a 2.5mm mono pin. There is also an L-type version, which is a 2-pin corner connector with the same specifications. This connector is common on Midland and Icom radios, as well as brands such as TTi, Cobra (MT-500, MT-525, MT-700, MT-725, MT-900, MT-925), Alinco and Wintec.

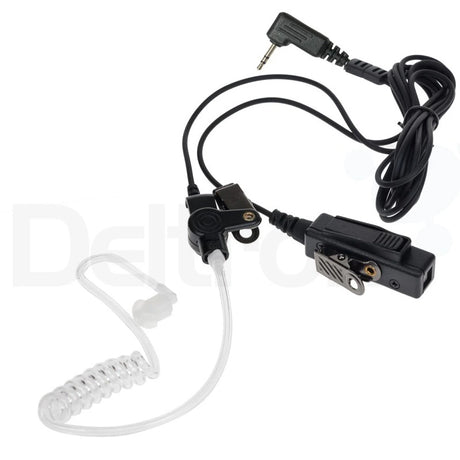

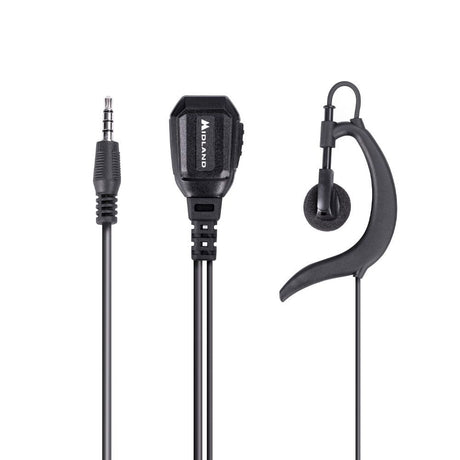

Motorola M Connector

The Motorola M connector is a 1-pin 3.5mm stereo connection. This is often used with Motorola radios from the T-series. Other models with this connection are the Cobra MT-200, MT-550 and MT-750.

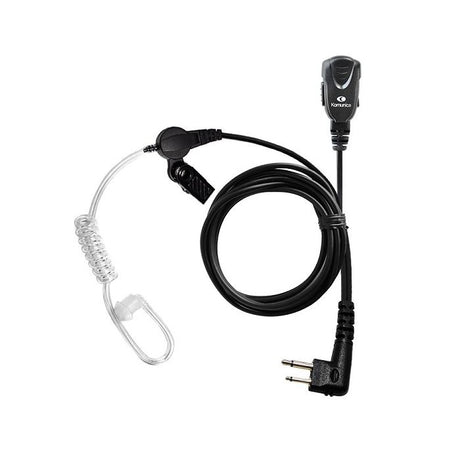

Motorola M1 Connector

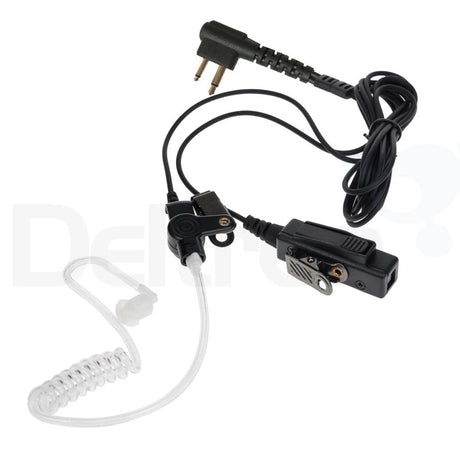

The Motorola M1 connector is a 2-pin corner connector with a 3.5mm and a 2.5mm pin. This is used on models such as the Motorola GP300, XTX-446 and XTN-446.

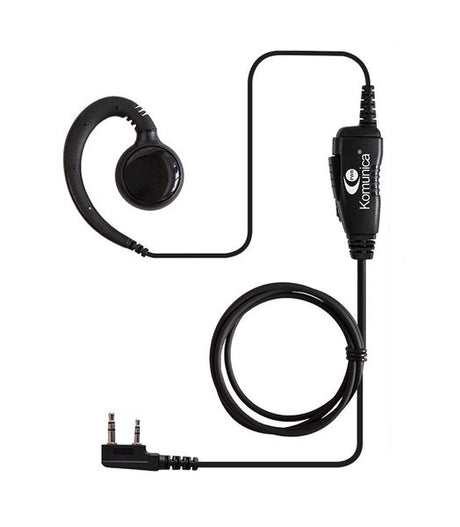

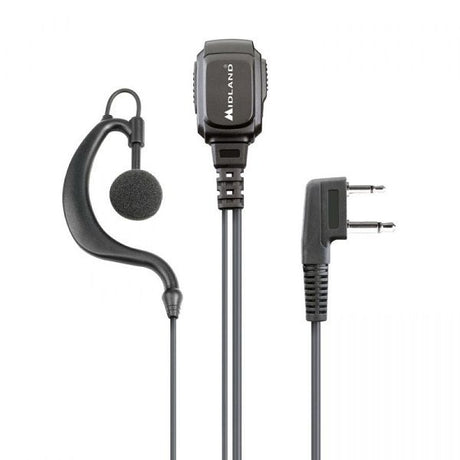

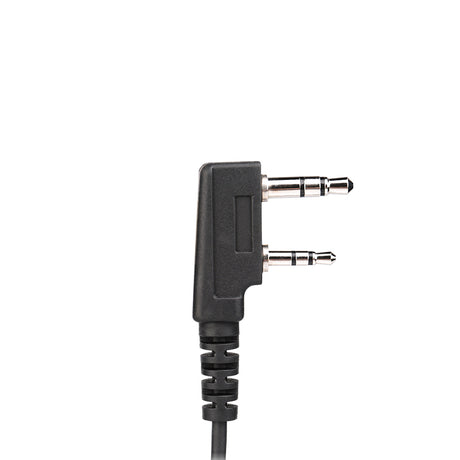

Kenwood K Connector

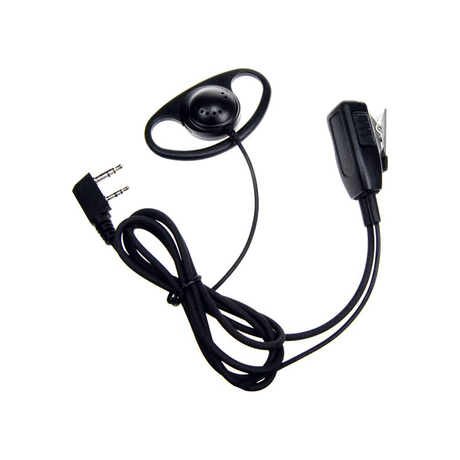

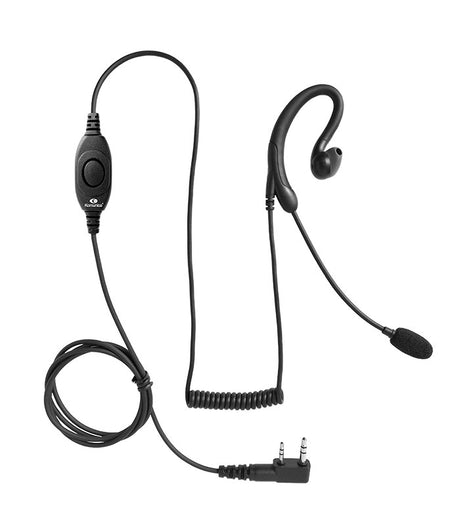

The Kenwood K connector is a 2-pin corner connection with a 3.5mm stereo and a 2.5mm mono pin. There is also a 1-pin K-type connection with a 2.5mm mono pin. This connector is common on Kenwood and Intek radios and can also be found on the Maas PT-558.

Wintec W Connector

This type of connector is specially designed for Wintec models and offers a unique connection that fits perfectly with these radios.

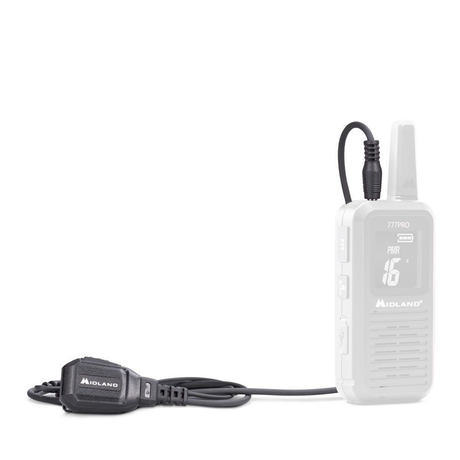

SX Connector

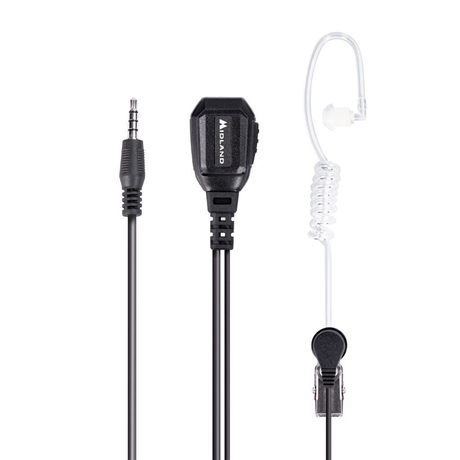

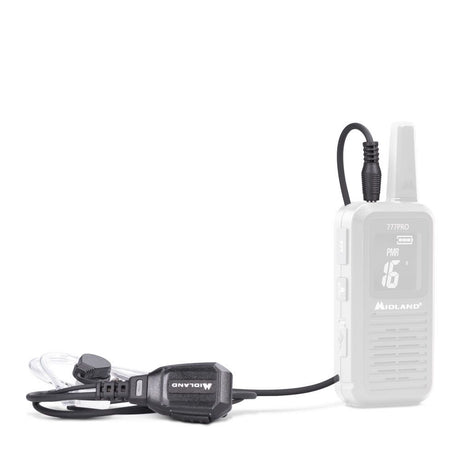

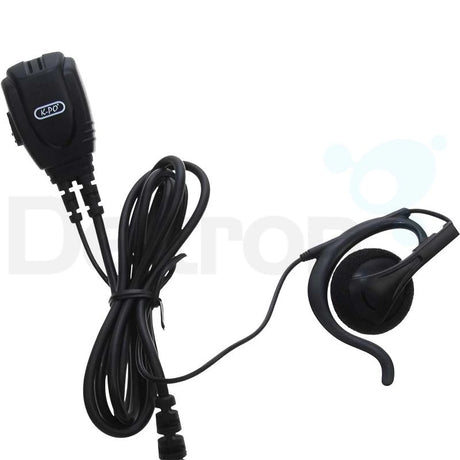

The SX connector is a 2.5mm stereo jack, specifically designed for Midland 777, G12, and G5, as well as the Intek SL-02 radio.

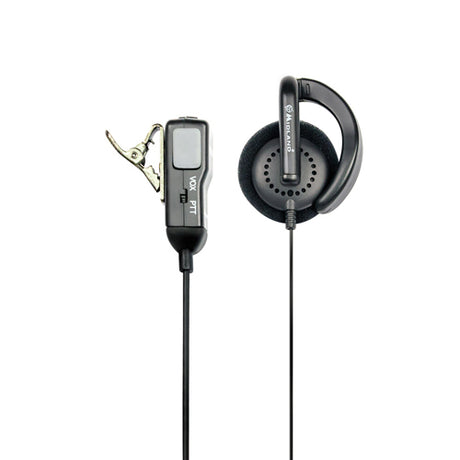

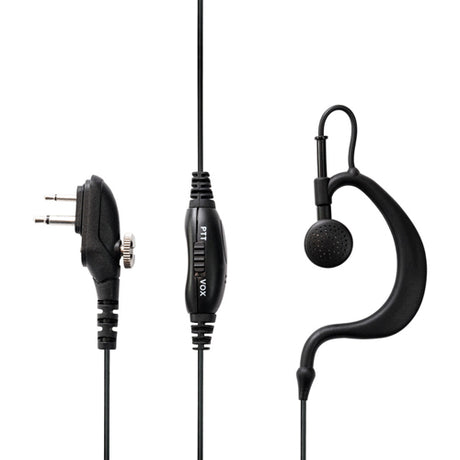

V Mention

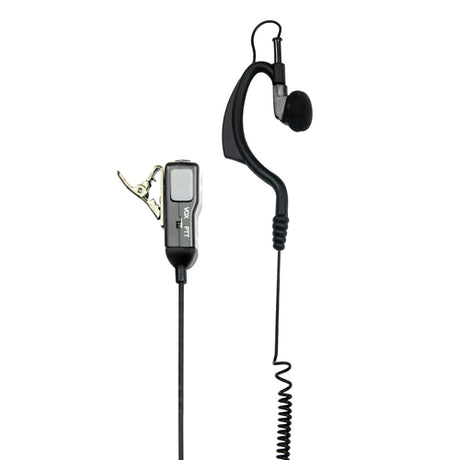

If there is a V next to the type, for example the KEP 24 VM1, this means that the headset is equipped with an M1 connector and has a VOX/PTT switch for extra functionality.
