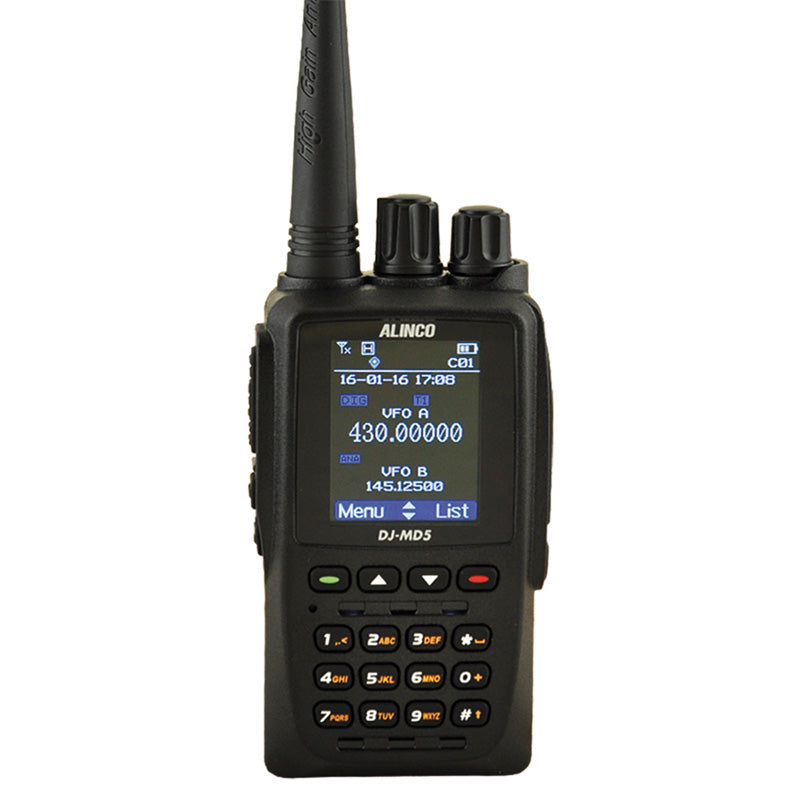

Alinco DJ-MD5XEG

General features Alinco DJ-MD5XEG radio

• Frequency range: 136-174MHz / 400-480MHz


• Number of channels: 4000ch


• Zones per radio: 250 zone (MAX 250ch/zone)


• Channel spacing:



  • …Analog: 12.5/25 kHz


  • …Digital: 12.5 kHz






• Operating voltage: 7.4 V DC nominal


• Operating temperature range: -20℃ to +55℃ (-4 ℉ to +131 ℉)


• Frequency stability: ±2.5 ppm


• Antenna impedance: 50Ω


• Dimensions (W x H x D approx.) with battery pack/antenna length: 59x118x40 mm (2.32x4.65x1.57 inches)


• Weight (approximately) with EBP-96 Li-ion pack: 256 grams (9.03 ounces)

Transmitter details

• RF output power: 5W / 2.5W / 1W / 0.2W


• Spurious Emission



  • Less than 1GHz: -36dBm


  • More than 1GHz: -30dBm






• FM buzz and noise (analog):



  • 25kHz: 40dB


  • 12.5kHz: 36dB






• Modulation:



  • Analog: 16K0F3E / 11K0F3E


  • Digital: 7K60FXD / 7K60FXE





Recipient details

• Sensitivity (analog/12dB SINAD):



  • 25kHz: 0.25uV


  • 12.5kHz: 0.35uV






• Sensitivity (digital/BER):



  • 5% : 0.3uV


  • 1%: 0.7uV






• FM buzz and noise (analog):



  • 25kHz: 45dB


  • 12.5kHz: 40dB






• Audio distortion: less than 5%


• Audio output: 1000mW/16Ω

Optionally available accessories and parts

• EME-56A = Earphone Microphone


• EMS-76 = Microphone


• EBP-87 = Li-ion battery, DC 7.4 V, 1500 mAh


• EBP-88 = Li-ion battery pack (DC 7.4V 1700mAh)


• EDC-189A = Li-ion Battery Charger


• EDC-191E (220V) = AC Adapter


• EA-228 = antenna


• EBC-34 = Belt clip


• ERW-21 = PC interface cable

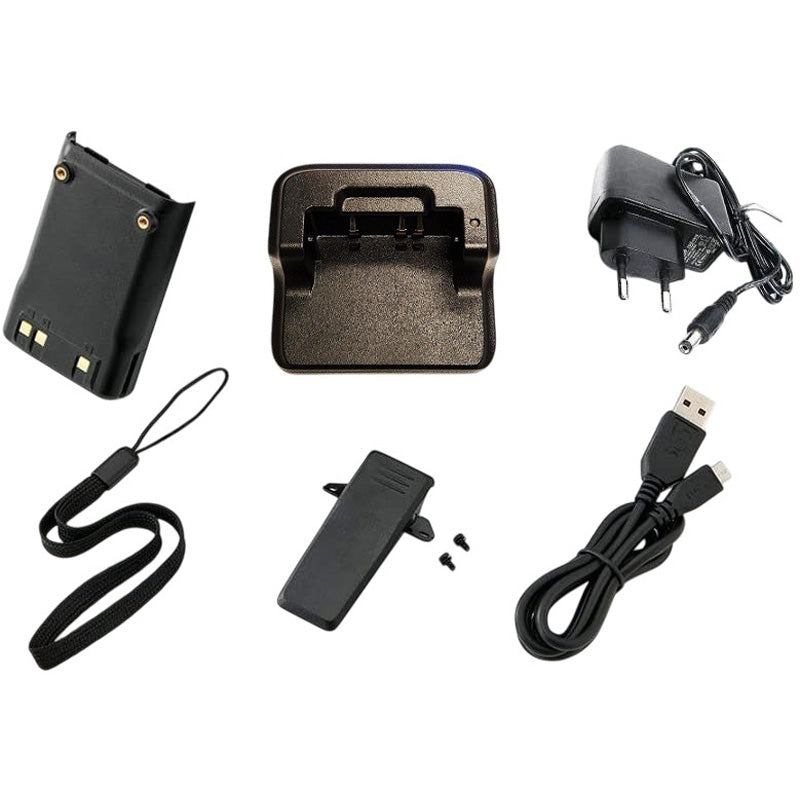

Package contents

• 1x Alinco DJ-MD5XEG radio


• 1x Li-ion battery pack (DC 7.4V 1700mAh)


• 1x Li-ion battery charger


• 1x AC Adapter


• 1x Antenna


• 1x Belt clip


• 1x PC interface cable


• 1x Wristband


• 1x Manual in multiple languages
