AOR ARL-2300 Ethernet controller

The AOR ARL-2300 Ethernet Controller is an optional remote control for the AOR AR-2300, AR-5001D, AR-6000, and AR-5700D scanners. The AOR ARL-2300 allows you to listen and record remotely via LAN. This controller is ready to use as soon as you connect it to an AOR AR-2300 or AR-5001D scanner and an available LAN port on your router. The AOR ARL-2300 receives power directly from the scanner via the control cable. Suitable for both professional and hobby use.

Software for the ARL-2300

The client software runs on the Java-2 platform and requires at least version 1.6 (Java SE6 runtime) on the PC. Settings can be easily adjusted via the local network (DHCP mode) using a browser, thanks to Apple's Zero-configuration software 'Bonjour'.

The included control software allows remote control of the receiver connected to the ARL-2300. No installation is required, so the software can be easily copied or removed to and from the PC, along with the configuration file. Once the router and the ARL-2300 are properly configured, the client software communicates with the receiver in real time. No specific LAN settings are required on the client side.

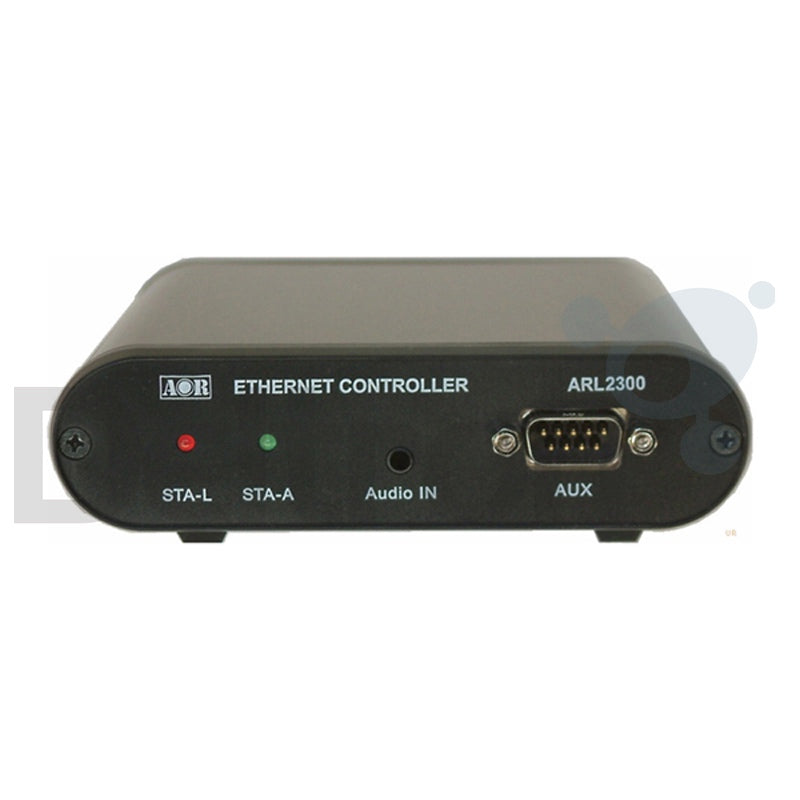

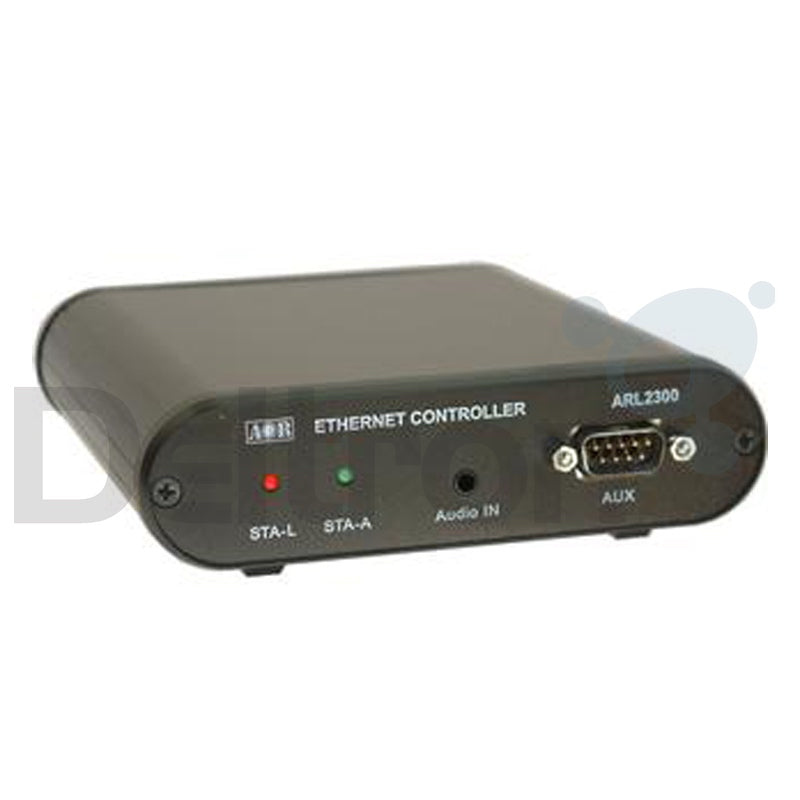

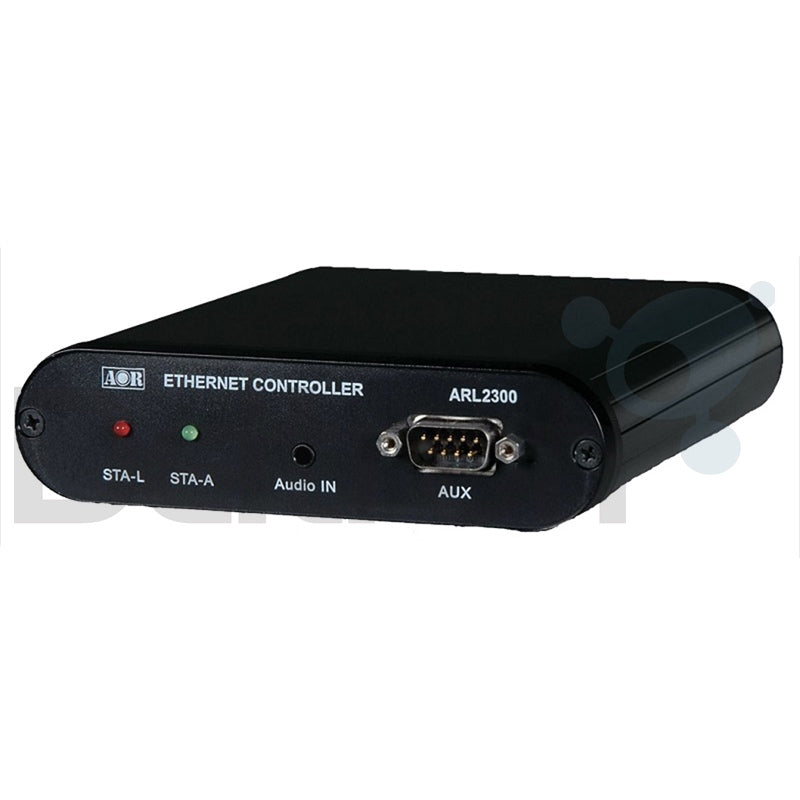

Front panel of the AOR ARL-2300

• Red STA-L LED for login status
• Green STA-A LED for operating status
• Audio input
• Additional serial port

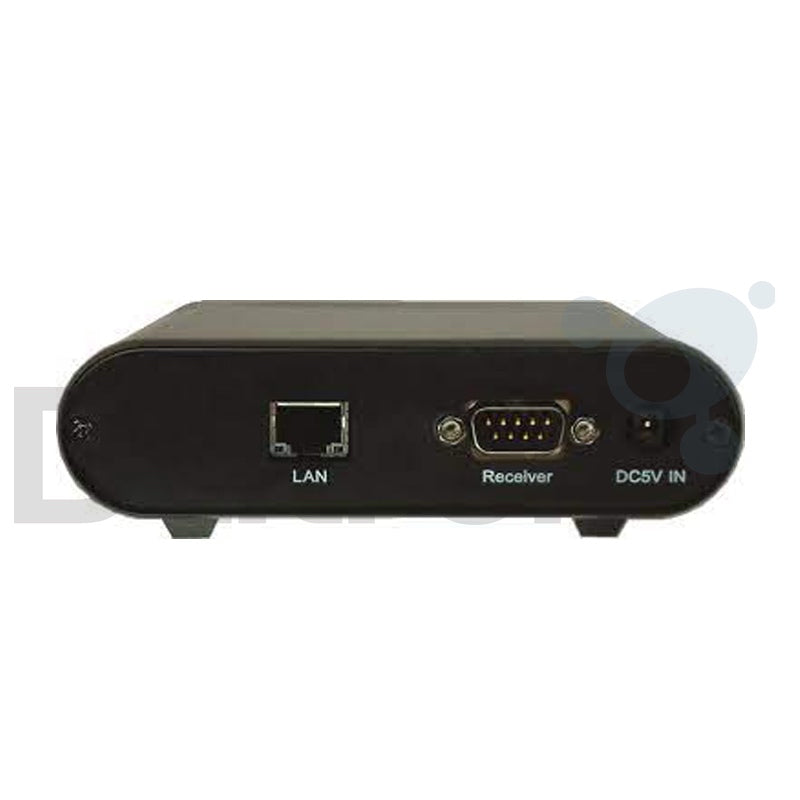

Rear panel of the AOR ARL-2300

• LAN port
• Serial connection to the receiver
• 5V DC external power input

Hardware and software requirements for the ARL-2300

• Settings: Any Windows or Mac PC with the "Bonjour" add-on
• Client: Any Windows or Mac PC with Java 2 (v.1.6 or later)

Support functions by the client software

• Five selectable VFOs
• Selection of analog/digital modes
• Simultaneous monitoring
• Remote and local audio recording
• Spectrum display (400 kHz - 10 MHz)
• Memory bank management
• Program Search and Scan
• Bank link
• Restrictions apply depending on receiver model

Minimum requirements for the software:

Windows

• CPU: Celeron M, 1 GHz
• RAM: 512 MB
• HDD: 1.5 GB free space
• Operating system: Windows XP or later

Mac

• Processor: Intel Core 2 Duo
• RAM: 512 MB
• HDD: 1.5 GB free space
• Operating System: OSX 10.5 or higher
