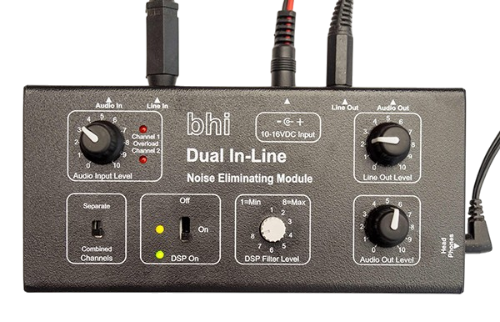

BHI Dual In-Line DSP Module

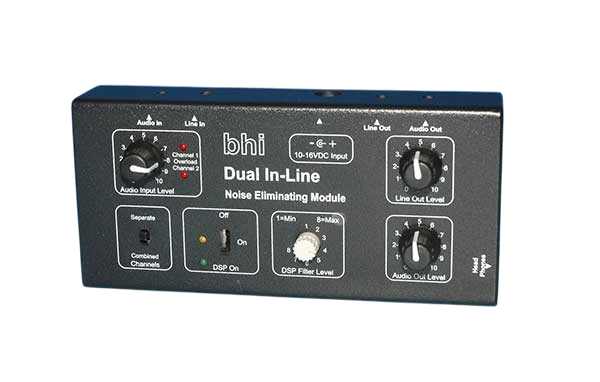

The BHI Dual In-Line is a versatile Mono/Stereo DSP module that offers high-quality audio processing at a very attractive price. Made of impact-resistant black ABS plastic, this module uses advanced DSP noise reduction technology to separate voice signals from noise and interference. This results in clear and intelligible sound, even under the most challenging conditions. Your listening experience is significantly improved as weak signals are reproduced more clearly and without interfering noise.

User-friendly controls

The Dual In-Line module is easy to operate with intuitive knobs and switches. It features an input level control with LED indicators and separate controls for adjusting the line level and speaker output levels. You can listen with headphones, a passive mono speaker or active speakers. The noise reduction is easily activated with a filter on/off switch and an 8-way rotary switch for adjusting the noise filter level. A switch allows you to separate or combine the input signals.

Versatile connection options

The Dual In-Line module offers a variety of connectivity options with 3.5mm mono or stereo jacks and three different outputs: a 7 Watt mono speaker output, a stereo line output and a 3.5mm stereo headphone output. This gives you the flexibility to connect up to two mono inputs or one stereo input and use up to three separate outputs. The unit is supplied with an ALD-007 stereo plug to plug cable, an ALD-001 3.5mm mono plug to plug cable, a user manual, rubber feet and a DC power cable. For optimum performance a separate 12V DC power supply such as the Worldwide PSU-12-2A-WW is recommended.

Compatibility and Applications

The Dual In-Line module is suitable for use with all radios, receivers and SDR devices and supports both mono/stereo speaker level and stereo line level audio input signals. Active speakers can be connected to the stereo "Line Out" jack, while a passive speaker can be connected to the 7W amplified mono "Audio Out" jack. This allows you to listen to both headphones and a mono speaker at the same time, ideal for DXing, club stations, special events and field day events. The Dual In-Line module replaces the outdated BHI NEIM1031MKII, but offers enhanced features and the latest DSP noise reduction technology.

Enhance your audio with the EQ20 parametric equalizer

Further enhance your reception sound by combining the Dual In-Line module with the EQ20 10W parametric equalizer. Simply connect the "Line Out" signal to the EQ20 and connect your passive speaker or headphones to the EQ20 output for personalized audio settings, ideal for people with hearing loss.

Features of the BHI Dual In-Line DSP Module

• Powerful, high-quality audio processing system
• Latest BHI dual-channel DSP noise reduction technology

• Ultra low latency of 32ms

• Improved sound quality - clear and intelligible speech

• Suitable for mono, stereo or two separate mono channels

• 8 noise filter levels - 8 to 40 dB noise reduction

• High flexibility - accepts speaker-level and line-level audio

• Separate 7 Watt mono audio and stereo headphone amplifiers

• Easy operation with rotary knobs and switches

• Suitable for headphones, passive speakers and active speakers

• Dimensions: L165mm x W78mm x D50mm

• Made of impact resistant black ABS plastic

• The BHI Dual In-Line DSP module is the ideal choice for anyone looking
• to high-quality audio processing with flexible connectivity and easy operation. Order today and experience the difference in your listening quality!

Available BHI product accessories

• PSU12-2A-WW - 12V DC 2A 24W International Power Supply, 2.1mm center positive

• LSPKR - 20 Watt 4 ohm 4" Extension Speaker with mounting bracket

• SPKR8 - 8 Ohm 8 Watt extension speaker

• EXTSPK25 - 8 Ohm 25W single cabinet style extension speaker, black ABS

• 1042 Six Way Switch Box - 1042 6-way switch box allows up to 6 pieces of equipment to connect to your bhi DSP noise canceling product.

• Mni-Switch - The BHI Mini Switch is a two-way switch box enabling the connection of two radios to your bhi DSP noise canceling product.

• Dual In-Line Stand - Quality lightweight Perspex mounting stand for the Dual In-Line module

• HP-1 Wired Stereo Headphones - Comfortable Folding dynamic stereo headphones for Radio Communications

• HPA1 - Headphone adapter lead

• ALD-001 - Audio lead 3.5mm mono plug to 3.5mm mono plug lead 1.2M long. (As used on NEIM1031MKII, ANEM MKII and 1042 switch box).

• ALD-007 - 3.5mm stereo jack plug to 3.5mm stereo jack plug 1.2m long

• HPE1 Headphone extender lead - 3.5mm stereo jack plug to 3.5mm stereo socket 20cm. Protects and extends the life of the headphone socket of your audio equipment
