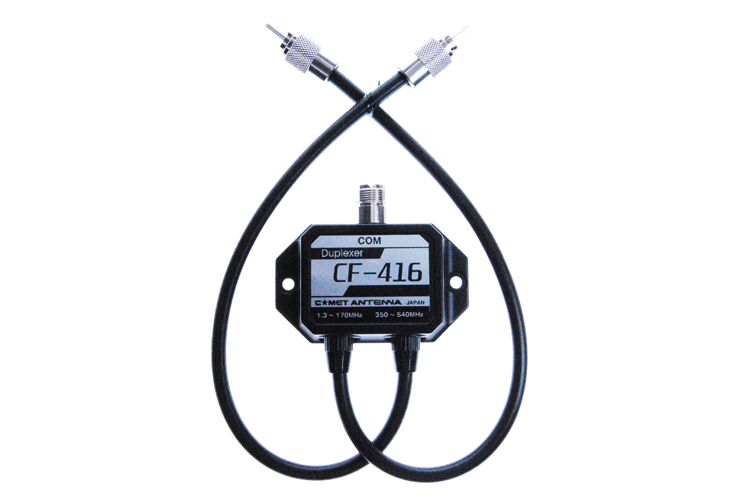

Comet CF-416A

Comet calls these "duplexers", but they are also referred to as combiners or splitters. They are basically band-pass filters, simultaneously passing RF in both directions through the common connector while the band-pass filters provide a high degree of isolation between ports.

The CF 416A Duplexer is for transmitting and receiving the 144 (or HF/50Mhz) and 433Mhz at the same time. It is combined with high grade filters to work for preventing TVI at the same time. In the case of using the CF-416 for one frequency, the other end can remain open, although the use of a dummy load would be preferred.

Features:

• TX and RX from two radios at the same time into a dual-band antenna


• Combine a dual-band radio with separate outputs into a dual-band antenna


• Separate a single connector duplexed radio into separate antenna systems


• Allow a single coax run into two antennas at the top of the tower, and two radios at the bottom by using a duplexer at both ends of the coax run, avoiding cost and weight.

Technical specifications:

• BandPass Frequency & Input Loss : 1.3 - 170Mhz / Less than 0.15dB


• BandPass Frequency & Input Loss : 350 - 540Mhz / Less than 0.25dB


• Impedance: 50 Ohms


• VSWR: Less than 1:1.2


• Maximum Input Power: 1.3 - 60Mhz / 1000Watts (PEP)


• Maximum Input Power: 100 - 170Mhz / 800Watts (PEP)


• Maximum Input Power: 350 - 540Mhz / 500Watts (PEP)


• Input 1 x SO239 Socket


• Output 2 x Leads with Fitted PL259 Plugs

Package contents:

• 1 x Comet CF-416A Duplexer
