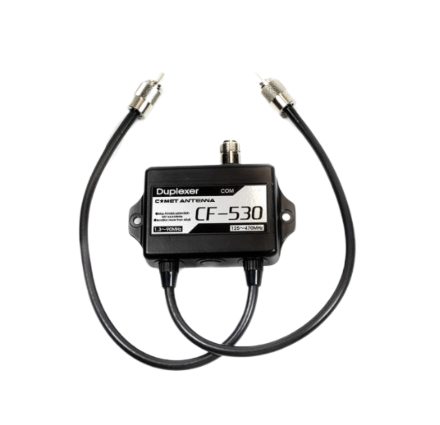

Comet CF-530

The Comet CF-530 duplexer 50MHz / 430MHz for simultaneously sending and receiving both 50MHz (or HF bands) and 144 MHz (or 430MHz band). The combined high-quality filters in the Comet CF-530 are to prevent TVI at the same time. The isolation between the two connectors is more than 45dB, in case the CF-530 is used for one frequency the other connector can be left open, although the use of an additional dummy load is preferred.

The Comet CF-530 is equipped with the popular combination of two (2) output connectors with PL259 connection and an input with an SO239 connection.

Features of the Comet CF-530 duplexer:

• Bandpass frequency and input loss



  • 1.3 - 90 Mhz / less than 0.2db


  • 125 - 470 Mhz / less than 0.3dB






• Impedance: 50 Ohms


• VSWR: less than 1:1.2


• Maximum input power:



  • 1.3 - 90 Mhz 600 Watts (PEP)


  • 125 - 250Mhz 600 Watts (PEP)


  • 300 - 470 Mhz 600 Watts (PEP)






• Connectors: Input socket SO239


• Output connectors: 2 x PL-259 fitted


• Dimensions: W 66 x D 90 x H 26 mm


• Weight: 300 grams

Package contents

• 1x Comet CF-530 duplexer


• 1x Manual in English
