Comet CF-706

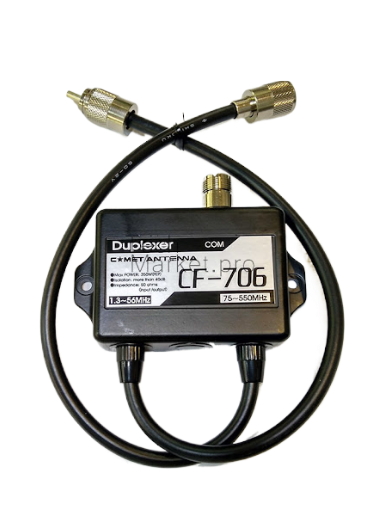

This Comet CF-706 duplexer for sending and receiving both 1.3 - 57MHz and 75 - 550MHz simultaneously. The Comet CF-706 has combined high-quality filters to prevent TVI at the same time. The isolation between the two connections is more than 45dB. When using the Comet CF-706 for one frequency, the other connector can be left open, although an additional fictitious load is preferred. Equipped with the popular combination of 2 outputs with PL259 connectors and input from SO239 connector. This model is therefore very suitable for use with, for example, the Icom IC-706 series of transceivers with its 2 antenna outputs.

Specifications Comet CF-706 duplexer:

• Bandpass Frequency and Input Loss:



  • 1.3 - 57 Mhz / Less than 0.4db


  • 75 - 550 Mhz /Less than 0.4dB






• Impedance: 50 Ohm


• VSWR: less than 1:1.2


• Weight 300g


• Dimensions W 66 x D 90 x H 26 mm


• Maximum Input Power



  • 1.3 - 57 Mhz 350Watts (PEP)


  • 75 - 550 Mhz 350 Watts (PEP)






• Input connector: SO239


• Output connector 2 x PL259

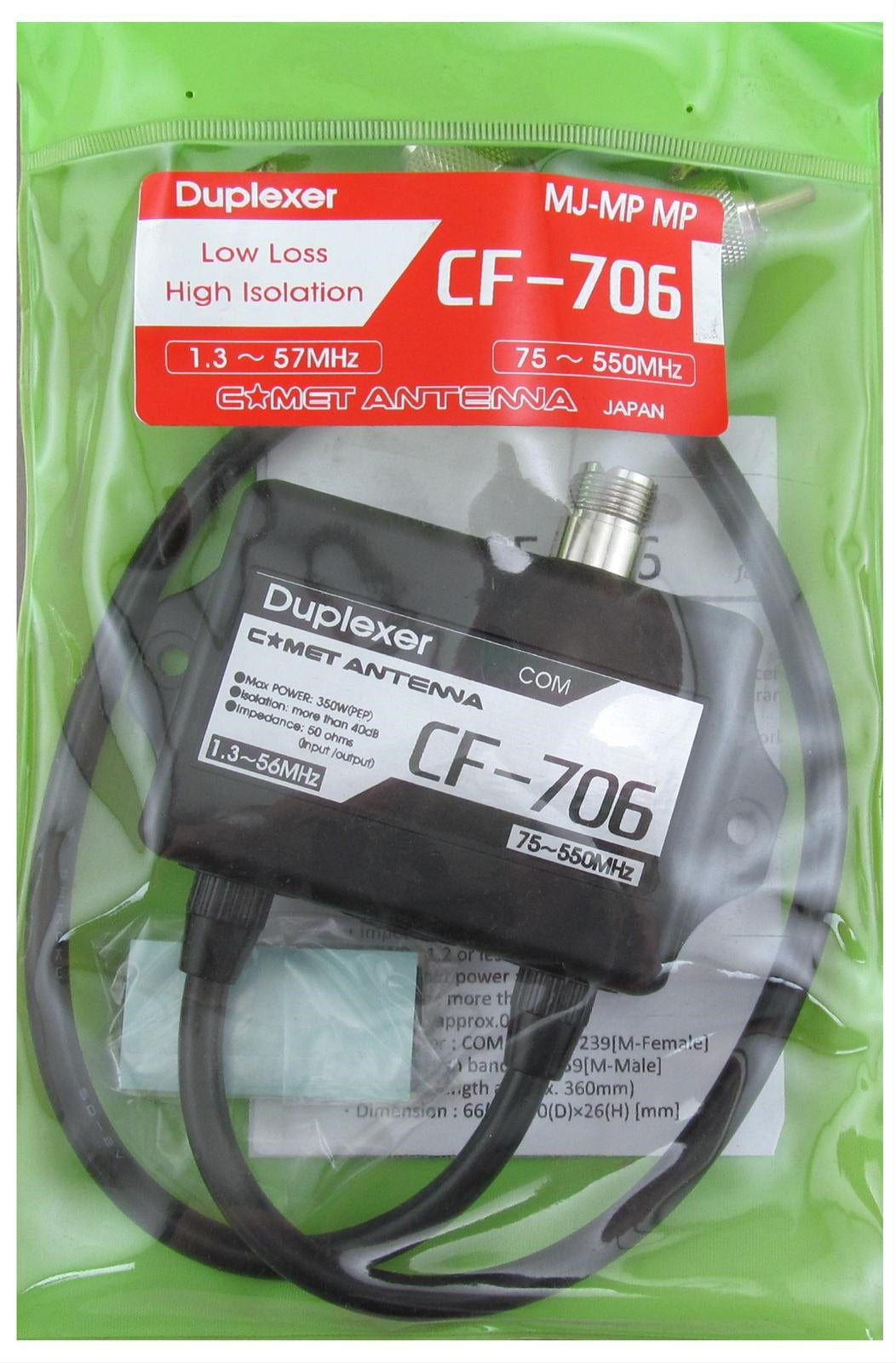

Package contents

• 1 x Comet CF-706 Duplexer


• 1x Manual
