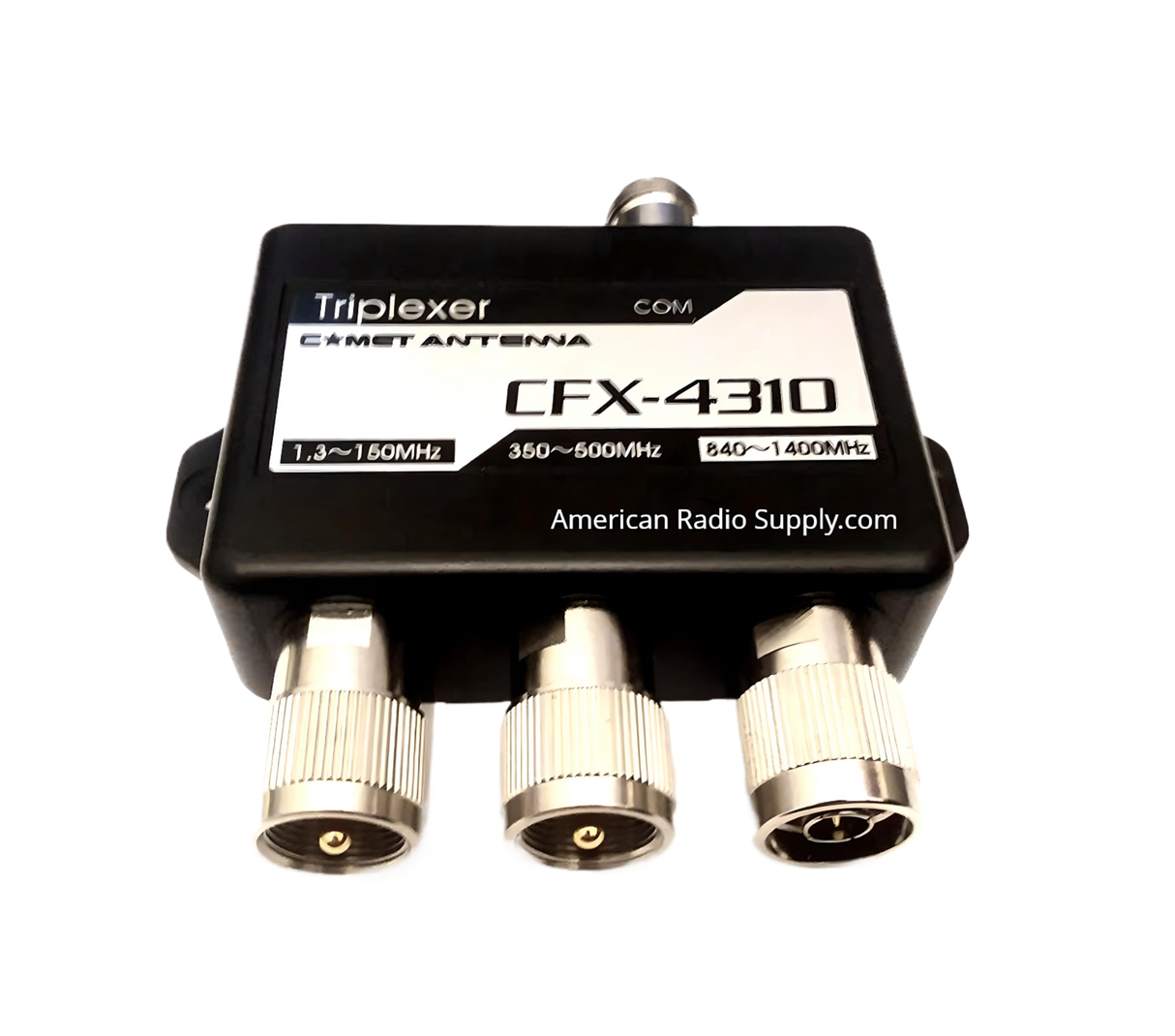

Comet CFX-4310C

The Comet CFX-4310C is the triplexer that allows you to simultaneously transmit and receive on all three bands of the HF 150/400 MHz and 900 MHz bands. With one or two Comet CF-4310Cs you can connect transceivers and antennas via one coaxial cable. The Comet CFX-4310C is equipped with high quality combined filters that prevent the occurrence of TVI. The isolation of each connector is more than 50 dB. The Comet CFX-4310C is equipped with an N-connector on the COM and 840-1400 MHz side.

TVI stands for Television Interference and is a specific electromagnetic interference that affects reception.

Features Comet CFX-4310C

• Power peak:



  • 1.3-60MHz: 1000Watt (PEP)


  • 100-150MHz 800Watt (PEP)


  • 350-500 MHz: 500Watt (PEP)


  • 840-1400 MHz: 200Watt (PEP)






• VSWR: 1.2 or less


• Impedance: 50 Ohms


• Isolation: more than 50 dB


• Connector type(s): N-Female


• Connector type(s):



  • 840-1400 MHz: N-Male


  • 1.3-150 MHz: UHF Male (PL)


  • 350-500 MHz: UHF Male (PL)






• Dimensions: L 66 mm x H 26 mm x W 90 mm

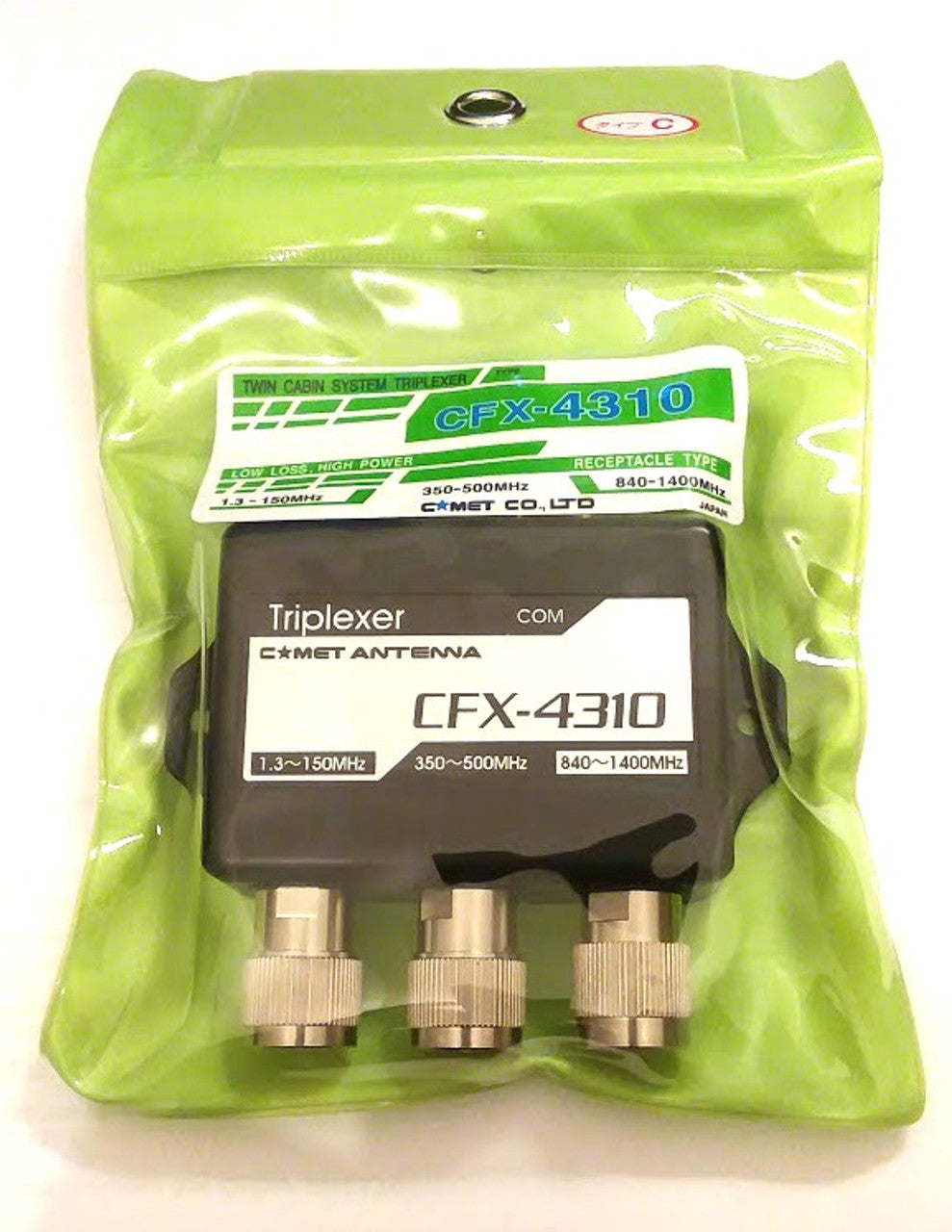

Package contents

• 1x Comet CFX-4310C triplexer


• 1x Manual in English
