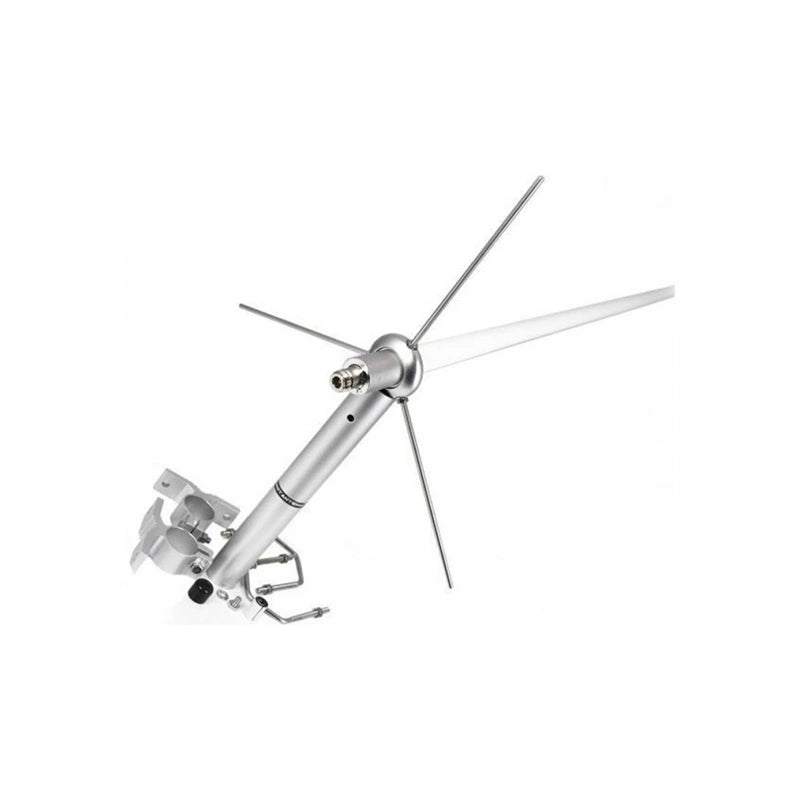

Comet GP-6N

The Comet GP-6N is a High Performance Dual-band antenna for 144 and 433 Mhz that uses Comet's SLC system (super linear converter), which ensures a low-loss and very high-performance antenna. The Comet GP-6N offers wide band coverage, which means that tuning is required in both bands. The Comet GP-6N is made of high-quality fiberglass, is waterproof and has a long lifespan. The newly designed ABS connection system of this antenna offers the finest beam pattern and the Comet GP6N is also easy to mount.

By combining the Comet GP-6N with a Comet CF416 duplexer, full duplex operation is possible.

English

The Comet GP-6 is a High Performance Dual Band Antenna for 144Mhz and 433Mhz. It is a high performance base antenna using Comet's SLC-system, (super linear converter) for a low loss, high efficiency antenna. Wide band coverage means no tuning is necessary in both bands, and high quality fiberglass ensures waterproof and a longer working life. Newly designed ABS-Joint system provides the finest beam pattern, and easy assembly. Additional use of a Comet CF 416 duplexer would also allow full duplex operation.

Specifications Comet GP-6N antenna:

• Frequency range: 144 and 433 MHz


• Gain & Wave



  • 146 MHz 6.5dBi 5/8 wave x 2


  • 446 MHz 9.0dBi 5/8 wave x 5






• VSWR: 1.5:1 or less


• Max. Power: 200 Watts SSB / 100 Watts FM


• Length 3.07m


• Construction: high quality fiberglass, in 2 sections


• Gain: 6.5/9.0dB


• Impedance: 50 Ohms


• Connector: N connector


• Weight: 1400 grams

Package contents:

• 1 Comet GP 6N Dual-Band VHF/UHF basic antenna
