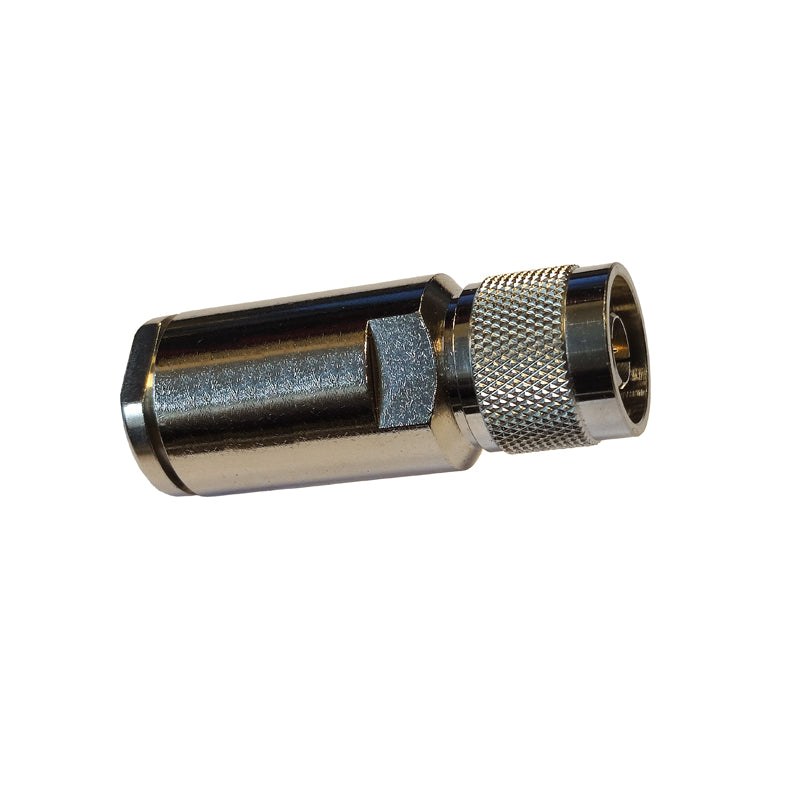

SSB N-Male Aircom-15
SSB N-Male Aircom-15 is backordered and will ship as soon as it is back in stock.
Delivery time:
Delivery time:
1-3 Business Days

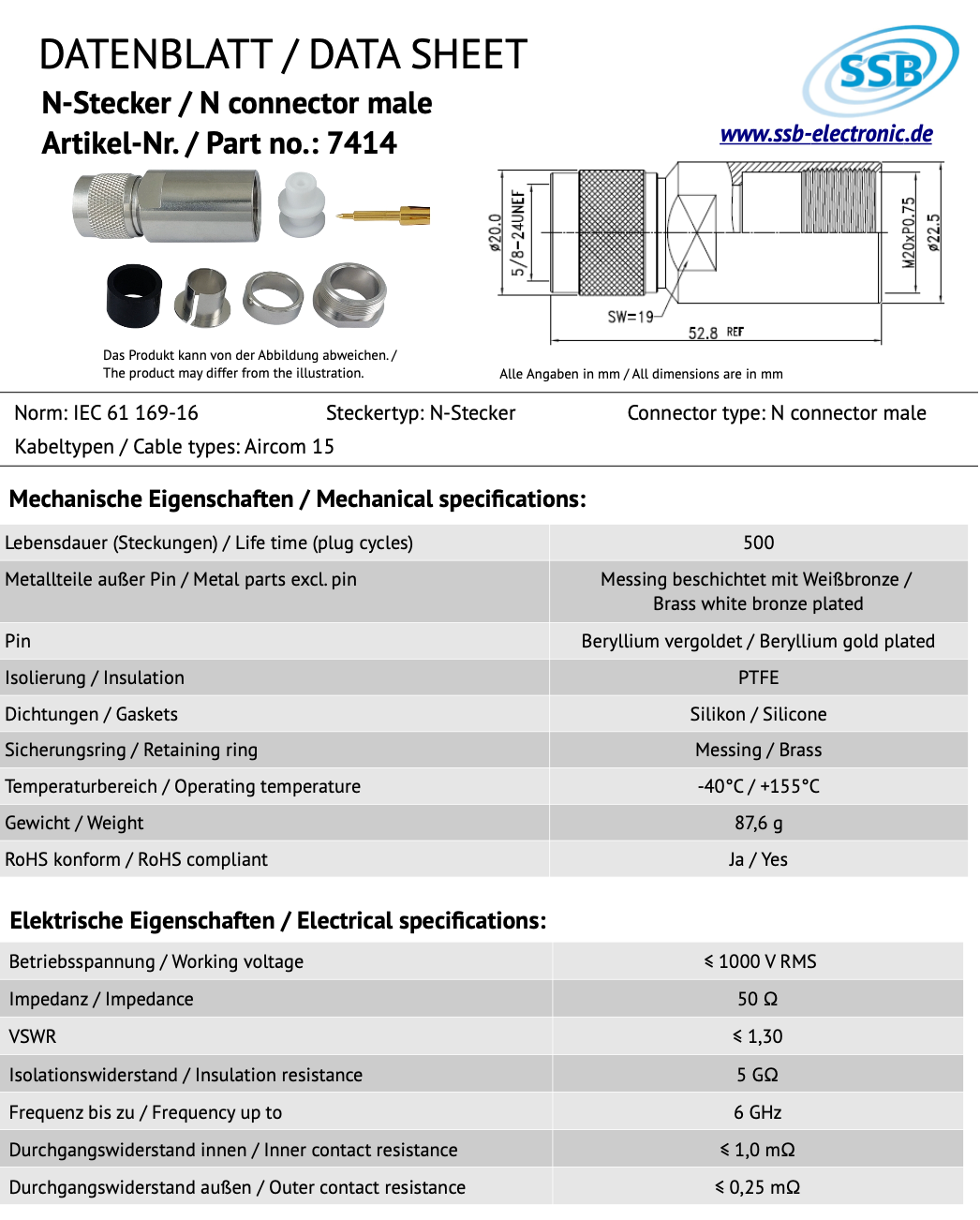

FEATURES, FUNCTIONS AND SPECIFICATIONS:
Connector: N-Male
Type: Inner, Solder
Type: Outer, Screw
Use for: Aircom Premium 15
Packing: Bag-1
Mechanical specifications:
Nut: Brass with white bronze finish
Washer: Brass with white bronze finish
Gasket: Silicone black
Braid clamp: Brass with white bronze finish
Shell: Brass with white bronze finish
Gasket: Silicone red
Retaining ring: Brass
Chassis: Brass with white bronze finish
Insulation: PTFE white
Pin: Beryllium gold plated
Body: Brass with white bronze finish
Weight: approx. 89 grams
RoHS compliant: yes
Electrical specifications:
Working voltage: ≦ 1000 V RMS
Impedance: 50 Ω
Insulation resistance: ≧ 5 GΩ
Frequency: up to 6 GHz
Inner contact resistance: ≦ 3 mΩ
Outer contact resistance: ≦ 2 mΩ
