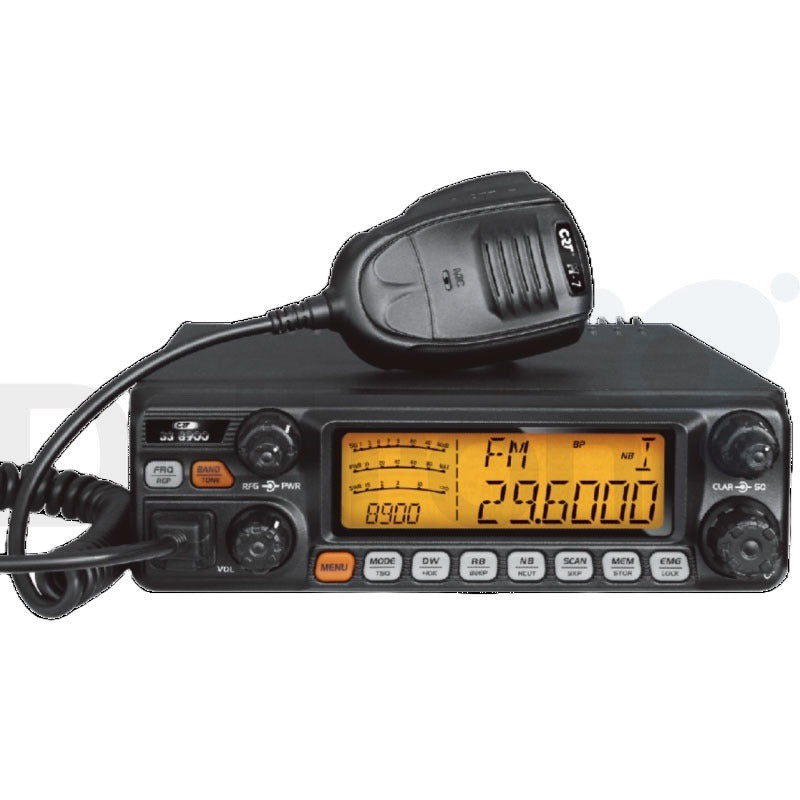

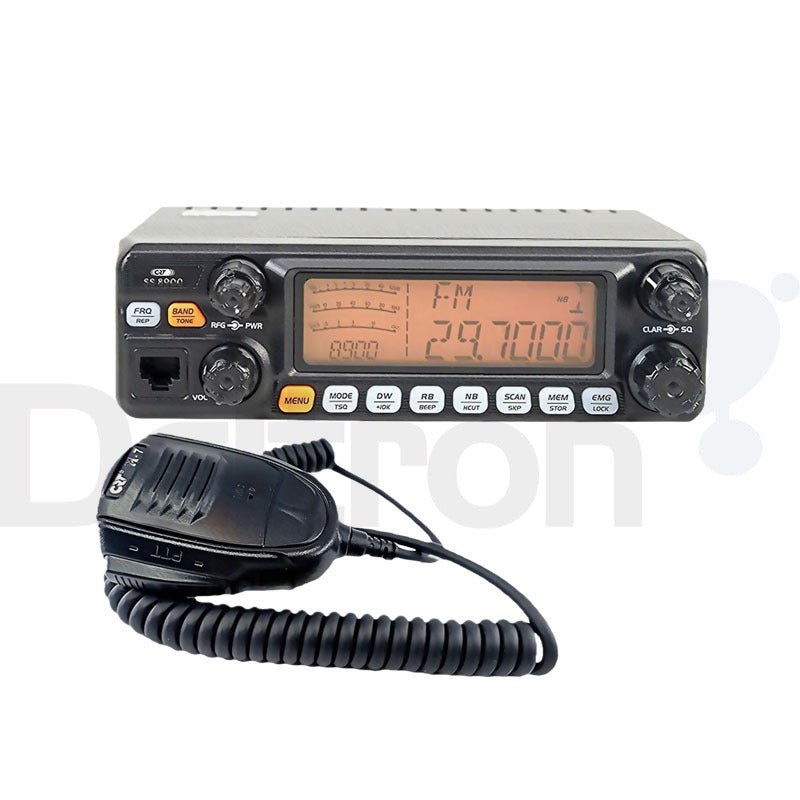

The CRT SS-8900 is a powerful and versatile mobile transceiver, designed as the successor to the SS-7900V Turbo. This compact device, with a significantly reduced mounting depth from 280 mm to 230 mm, offers advanced functionality and improved performance in a smaller housing. The special feature is that the CRT SS 8900 offers the possibility of reception on the VHF band (2M).
Performances
- Standard 10/11 meter transceiver
- High power (export) with AM/FM/SSB (25.615 – 30.105 MHz) 60 Watts PEP, 50 Watts, 60 Watts PEP.
Key Features:
- Transmitting Power : Up to 60 Watts PEP in AM mode, 50 Watts in FM, and 60 Watts PEP in SSB, with adjustable power levels to meet your communication needs. VHF receiver FM: 136 – 174 Mhz
- Frequency Range : Supports AM, FM, SSB (28 - 29.7 MHz) and has a VHF receiver for reception in the 2 meter band (136 - 174 MHz). Via optional programming software, frequencies in the VHF band can be stored for reception.
- Enhanced functionality : equipped with a VOX function, a 5 kHz step size for precise frequency settings, and a modern NRC filter for excellent noise rejection.
- LCD display : large and clear, for easy reading of frequencies and settings.

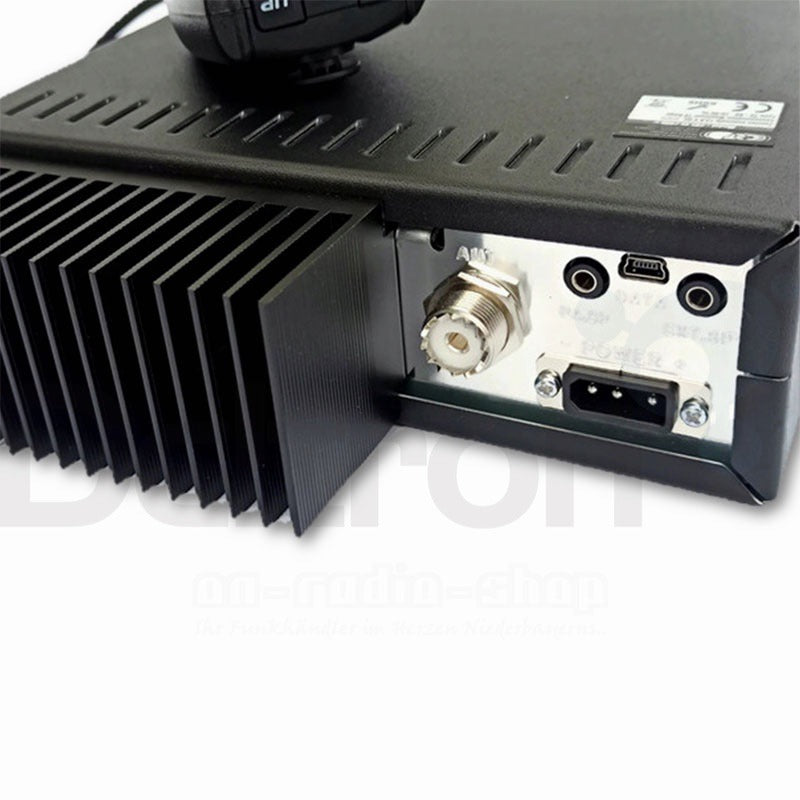

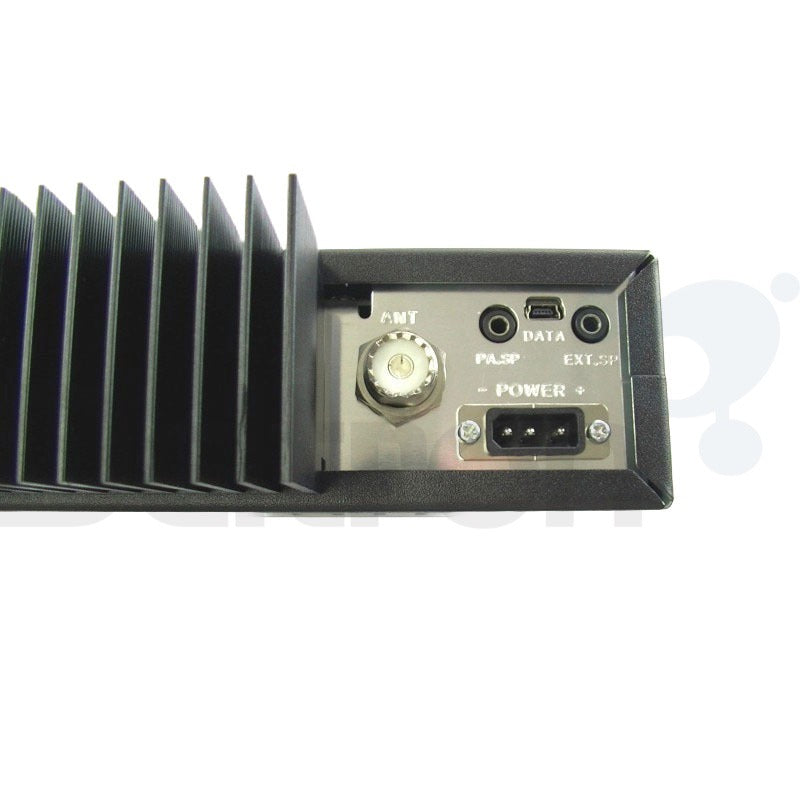

- USB Programming Port : The "DATA" port on the back allows the device to be programmed via a USB programming cable. Be careful not to use a conventional USB cable as this may damage the device.
- Compact Design : The newly designed PCB and ultra-compact size make the SS-8900 ideal for installation in limited spaces.
- Optional accessories : Available with a programming cable and software, and a microphone adapter for using other microphones.
All specifications
-
Mode: AM/FM
/ LSB / USB / CW - Frequency range: 28 - 29.7 MHz
-
Receptor: VHF FM 136-174 MHz
(with the possibility of 99 memory settings) -
Power: 60 Watt with modulation
AM, 50 Watt FM, 60 Watt SSB (adjustable
AM/FM/SSB) - Input voltage: 13.8V DC
- Memory settings: 6
-
Step size: 100Hz / 1kHz /
5kHz / 10kHz / 100kHz / 1MHz -
S-METER: AGC S-meter speed
available in 2 levels -
CLARIFIER: clarifies the
voice in SSB (range ± 500Hz/± 5kHz) -
RELAY MOD / OFFSET / SPLIT: makes
it is possible to enter a relay with two different frequencies -
SQUELCH: automatic (ASQ) - 9
automatic squelch levels -
ROGER BEEP: TX is beeping at the
end (out / 1-5) -
RF GAIN: adjusts the sensitivity
on RX -
MICRO GAIN: (via menu) adjusts the
audio gain on (1-36 levels) -
CTCSS / DCS (encoder/decoder):
38 CTCSS / 104 DCS: sub-audio code to activate repeater such as selective
tone (RX setting / TX setting / RX+TX setting) - Filters NB/HI CUT: noise filters
-
NRC filter function: RX/TX
noise reduction - adjustable 5 levels - particularly effective in SSB -
SPLIT function: makes it
possible to transmit and receive on two different frequencies in half
duplex - DOUBLE WATCH function
-
VOX function: this function
activates your microphone sound (hands-free) (9 sensitivity levels + VOX
delay time + VOX speaker) -
TOT function: time limit timer
(off / adjustable up to 600 seconds) -
CTCSS/DCS SCAN function: code
search by scan -
SCAN function:
automatic search for busy channels -
RESET function: in case of a fault
or incorrect operation it is possible to restore the factory settings
or reset the functions -
Various functions: selection
FM Deviation 4K (Standard 2.5K) + Emergency Channel + (+) 10kHz Function / ECHO On/Off
(32 levels) / monitoring and offset function + SWR protection + beep
function keys + keyboard lock -
Bonus: Clarifier Frequency
display - oversized radiators to dissipate heat -
Microphone: Electret type -
UP/DOWN selection (front panel connector) microphone type selection: electret
or dynamic -
Display: large LCD display + dimmer
function: 5 backlight dimmer levels available -
Level display: clear
display of frequency or channel + display of modulation mode + Indicator
signal reception and transmission + SWR level indicator -
Optionally available: programming cable
+ software -
Dimensions: W 200 x L 230 x H 60
very compact size - Weight: 1.5 kg
The CRT SS-8900 offers an excellent balance of power, functionality and compactness, making it an ideal choice for both experienced radio amateurs and professionals who require a versatile mobile transceiver with modern technology and a user-friendly design.
