Diamond AZ-805N

The Diamond AZ805N is a mobile VHF and UHF antenna

Features Diamond AZ805N VHF/UHF antenna

• Antenna type:



  • 1/4wave (144MHz)


  • C-Load radialless (430MHz)


  • 3x5/8 wave C-Load radialless (1200MHz)






• Frequency range: 144, 430 and 1200MHz (2m, 70cm and 23cm)

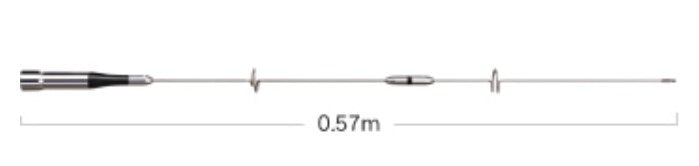

• Length: 57cm


• Weight: 84 grams


• gain:



  • 3.8dBi (430MHz)


  • 7.2dBi (1200MHz)






• Maximum power: 50Watt FM (Total)


• Impedance: 50 Ohms


• VSWR: less than 1.5

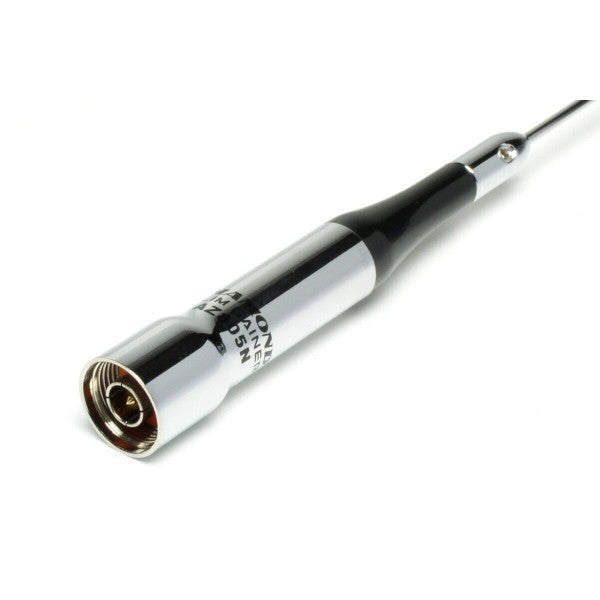

• Connection: NP (N-Male)

Package contents

• 1x Diamond AZ805N VHF/UHF antenna


• 1x Manual in English
