Diamond GZV-4000

The Diamond GZV04000 is a compact and lightweight switching mode Power Supply with high output power. It delivers adjustable output voltage from 5V to 15V 40Ampere under continuous operation and is suitable for various applications. especially for direct current radio equipment .

Specifications Diamond GZV-4000

• Dimensions 210 x 110 x 300mm


• Switched Mode


• Input 220 - 240VAC


• Weight 3.5Kg


• 40 Amp Continuous Rating, 100% Duty Cycle


• Variable Voltage Control 5-15 VDC


• Voltage Control Knob has center detent at 13.5 VDC


• Overload short-circuit protection with Current Foldback at approximately 42 Amp


• About Temperature Protection; variable speed fan automatically controlled for quiet operation


• Meter Selector allows monitoring of voltage current

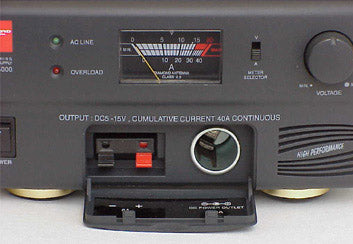

• Access to front panel DC terminals and cigarette lighter jack; standard 40A terminals on rear panel


• Built-in 8W speakerCircuitry yields high RFI protection from external sources


• AC line filter for EMI protection


• Standard 3-wire heavy duty line cord


• Power Indicator Overload Indicator


• Ripple Noise less than 8 mV rms

Package contents

• Diamond GZV-4000 power supply


• Manual
