Diamond K9000 motor drive antenna mount

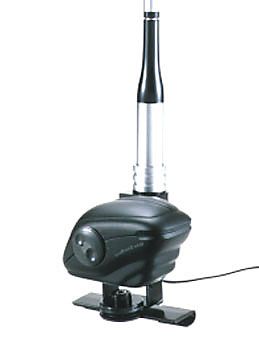

The diamond K9000 is a motorized antenna bracket that can tilt the attached antenna in approximately 4 seconds at the touch of a button. The K9000 is specially designed for mobile UHF and VHF antennas that do not require direct RF grounding. It is recommended to use flexible UHF/VHF antennas such as the NR770H series because their flexibility transmits less shock and vibration to the K9000, thus guaranteeing its operation.

Why use an electrically tilting antenna bracket?

The idea behind an electrically tilting antenna holder or a motor drive mount base is that when you have to drive your vehicle under something low, you can tilt your antenna within a few seconds at the touch of a button so that you can continue driving. without damaging your antenna.

Antennas that are recommended for use with this motorized antenna bracket;

• Diamond NR and SG series


• Series below 45 degrees such as the NR73BNMO, NR770HA, NR770HB, NR770RA, NR7700A, SG7500A and SG-M510

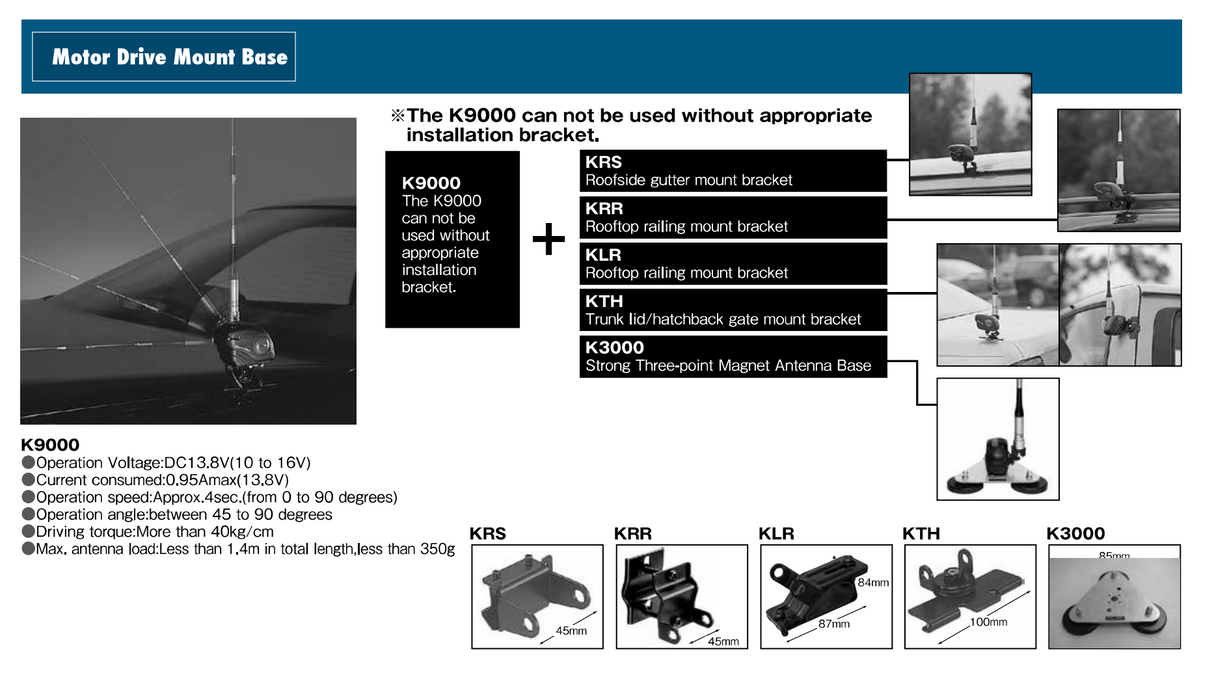

NB!! The Diamond K9000 only works with one of the brackets below;

• Diamond KRS


• Diamond KRR


• Diamond KLR


• Diamond KTH


• Diamond K3000

Warning when using the K9000

• Vibrations while driving can cause the bolts and screws to loosen, so we advise you to regularly check the mounting materials.


• You may choose to use “Locktite” to secure threads.


• In the event of an accident, the holder may break or fall off, causing damage.


• Avoid low hanging branches of trees, etc.


• Strong vibrations can cause excessive tension on the holder, take into account the position where you are going to mount this holder.

Features Diamond K9000

• Antenna holder with electronic controls


• Dimensions: (W) 64 × (H) 66 × (D) 102 cm


• Weight: 440 grams


• Operating voltage: DC 13.8 V (10 to 16 V)


• Power consumption: maximum 0.95 A (13.8 V)


• Operating Speed: Approx. 4 sec. (from 0 to 90 degrees)


• Operating angle: between 45 and 90 degrees


• Drive torque: more than 40 kg/cm


• Max. antenna length: 140cm


• Max. antenna weight: 350 grams


• The K9000 cannot be used without the correct installation bracket

Package contents

• 1x Diamond K9000 antenna holder


• 1x power cable with cigarette lighter plug


• 1x Manual in English and Japanese
