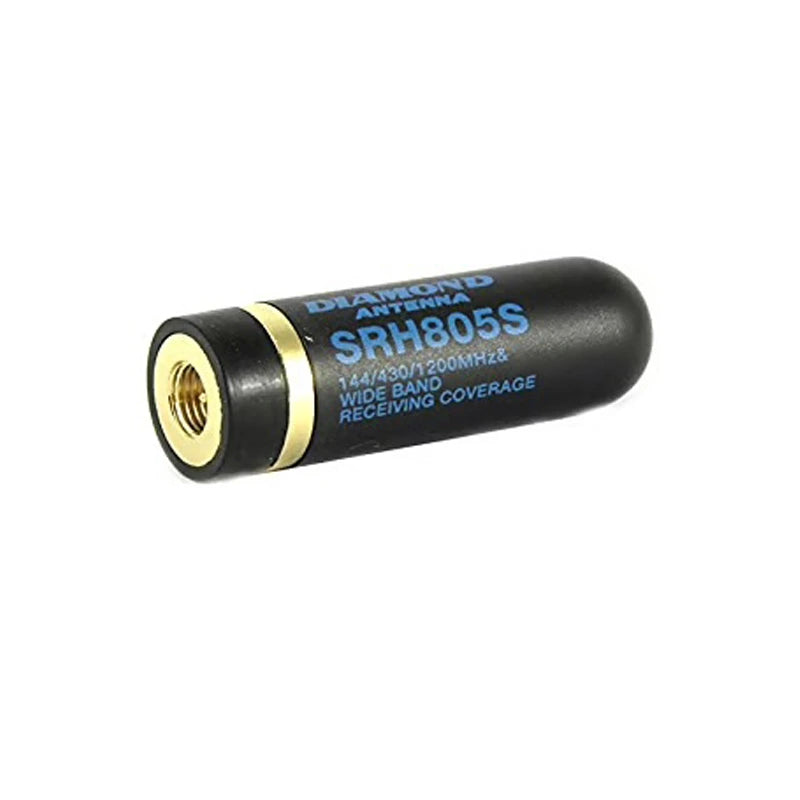

Diamond SRH-805S

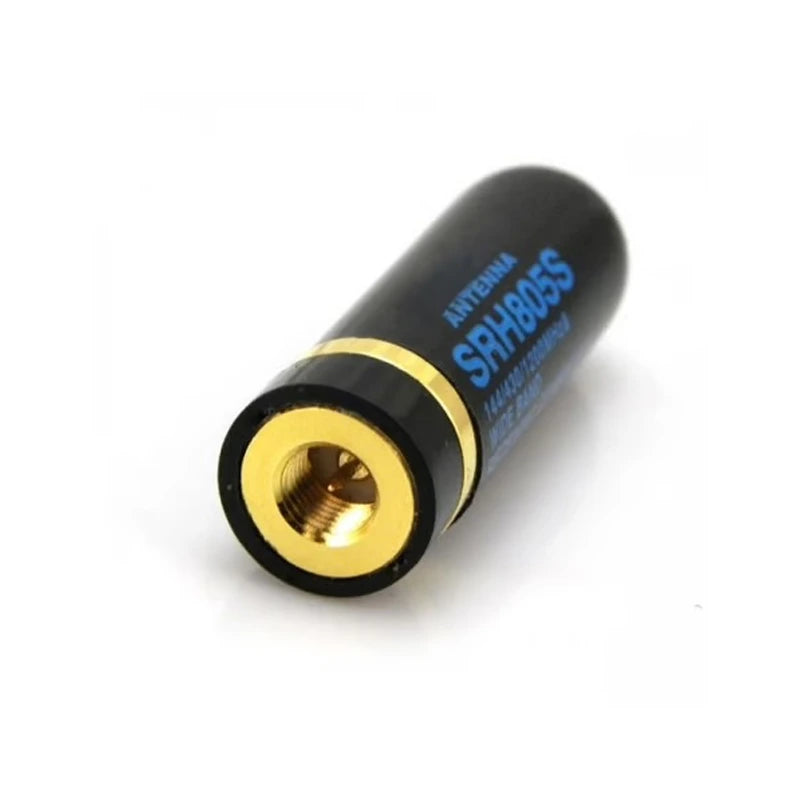

The Diamond SRH805S is a SMA-F (female) dual band antenna that can be used on almost all radios with a corresponding connector. This antenna is ideal for motorcycle driving schools where the student has the walkie-talkie in his pocket and a longer antenna is inconvenient.

Technical specifications:

• Dual Band: VHF/UHF


• Frequency: 136-174MHz and 400-480MHz


• Gain : 2.15dBi (430MHz)


• Connector: SMA-F


• Type: 1/4 wave


• Impedance: 50 Ω


• Max. power: 10 W


• Length: 4.5cm

Suitable for:

Baofeng/Pofung:

UV-5R UV-5RA, 5RB, 5RC, 5RD, 5RE, 5RO, BF-666S, BF-777S, BF-888S, UV6 and UV-8D

Kenwood:

TK-240, TK-250, TK-255, TK-260, TK-260G, TK-270, TK-270G, TK-272G, TK-278, TK-278G, TK-340, TK-349, TK- 350, TK-353, TK-360, TK-360G, TK-370, TK-370G, TK-373G, TK-378, TK-378G, TK-430, TK-431, TK-715, TK-2100, TK-2102, TK-2107, TK-2118, TK-2160, TK-3100, TK-3101, TK-3102, TK-3107, TK-3118, TK-3160 HYT: TC-268, TC-268S, TC -270, TC-270S

PUXING:

PX-777, PX-666, PX-3288, PX-888, PX-328, PX-333, PX-999, PX-555 PX-888K PX-728

WOUXUN:

KG-659, KG-679, KG-669, KG-689, KG-699, KG-801, KG-703, KG-UVD1P, KG-816, KG-833

Package contents:

• 1 x Diamond SRH805S antenna
