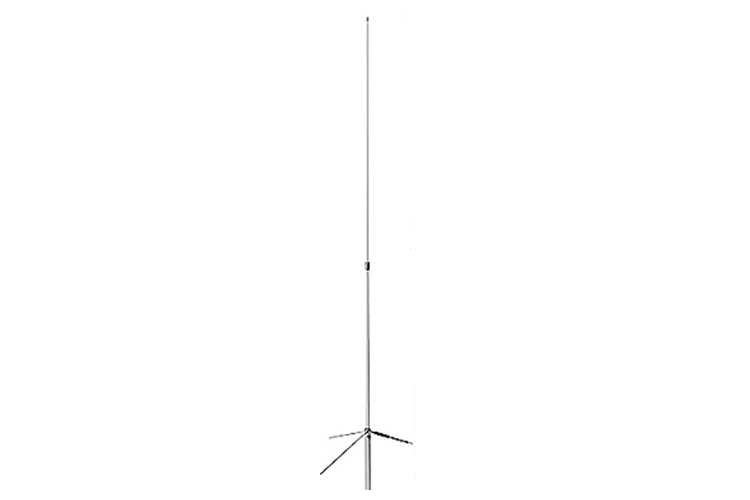

Diamond V-2000

The Diamond V-2000 is a three-band basic antenna. This V2000 antenna consists of 2 parts.

The V2000 Diamond antenna is a 3-band 6M, VHF, UHF antenna

Specifications Diamond V-2000

• Antenna type:



  • 1/2wave C-Load (50MHz)


  • 2 x 5/8 wave C-Load (144 MHz)


  • 4 x 5/8 wave C-Load (430 MHz)






• Length: 2.5 meters.


• Radians Length: approx.92 cm.


• Weight: 1.2 kg


• Gain: 2.15 dBi (50～52 MHz), 6.2 dB (144 MHz), 8.4 dB (430 MHz)


• Max. power: 150 Watts FM


• Impedance: 50 Ohms


• VSWR: less than 1.5:1


• Nominal wind speed: 50 m/sec.


• Mast diameter: 30 mm to 62 mm


• Connector: UHF-Female (MJ)

Package contents

• 1x Diamond V-2000 antenna


• 1x Set of mounting materials


• 1x manual in English and Japanese
