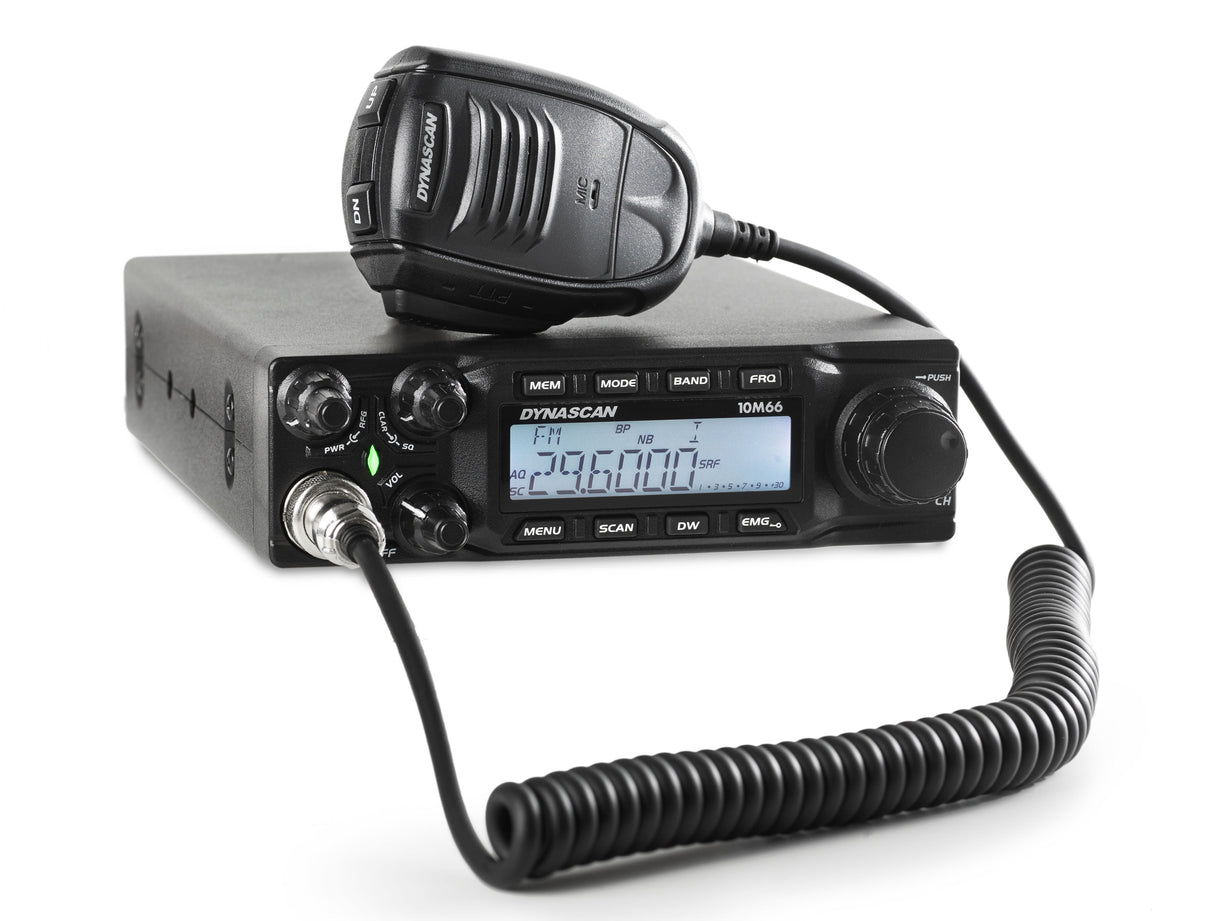

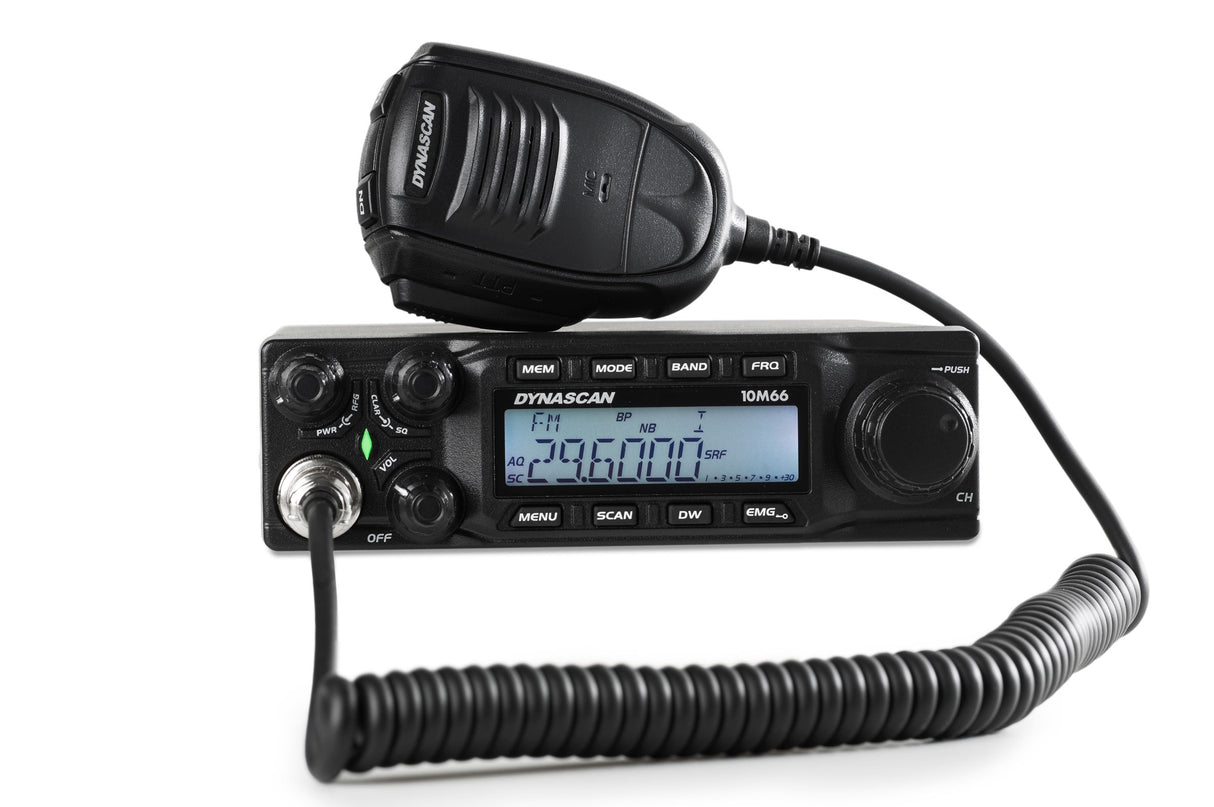

Dynascan 10M66

FEATURES, FUNCTIONS AND SPECIFICATIONS:

• Big LCD screen displaying frequency and all kinds of information
• FM, AM, SSB, LSB, PA mode
• Frequency tuning step 100 Hz, 1 kHz, 10 KHz, 100 kHz, 1 MHz..
• +/-1.5kHz clarifier adjustment
• Menu option setup
• ECHO function incorporated
• SQ, ASQ function (FM&AM mode only)
• RF GAIN adjustment
• RF PWR adjustment
• SCAN function
• Programmable RB function
• DW DUAL WATCH function
• Offset frequency function
• Beep keypad function
• +10KHz function
• Signal, Power and SWR meters
• UNTIL function
• HI-CUT function
• EMG emergency channel function
• Power Supplier voltage protection
• Key lock function
• Six memory channel
• Model name customized function
• CTCSS/DCS signaling (optional)

TECHNICAL SPECIFICATIONS:

• Frequency range: 28,000 Mhz to 29,700 Mhz
• Modulation: AM, FM, USB, LSB
• Frequency band: A/B/C/D/E/F/G/H/I
• Microphone: with PTT, UP/DN keys and coiled cord
• Input Voltage: 13.8 VDC
• Dimensions:  250mm (W) x 280mm (L) x 60mm (H)
• Weight: 1.5 Kg
• Antenna Connector: UHF-Female (SO239)

Note:

10M  vs 10M66 : March 2022 the type name changed from 10M to 10M66.
10M had a microphone with RJ-45 connector, 10M66 comes with a 6-Pin connector.

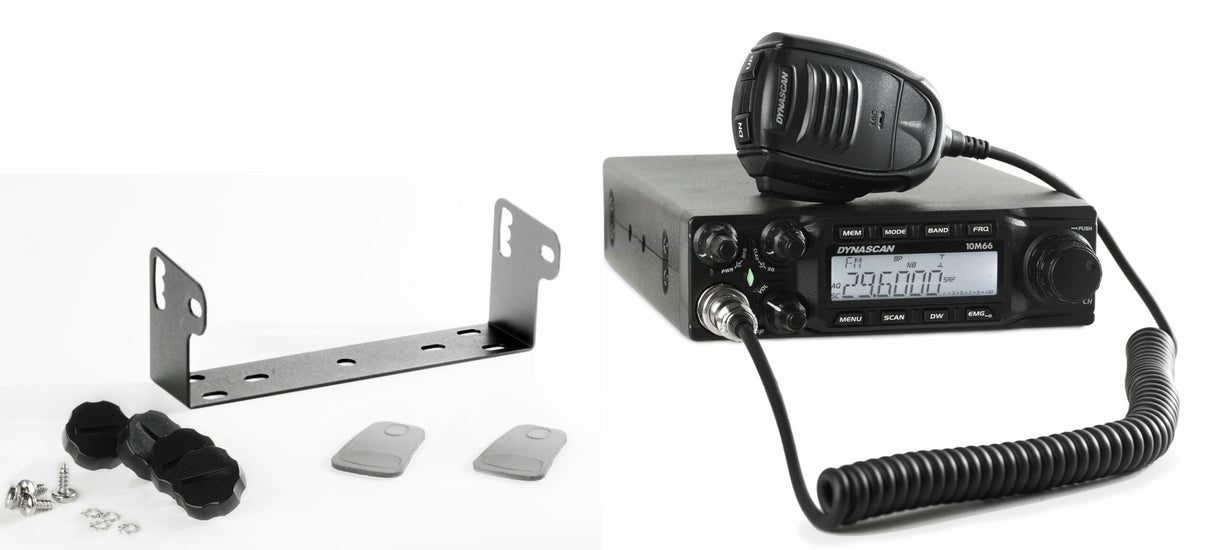

 PACKING INCLUDES:

• 1 x Transceiver
• 1x Microphone

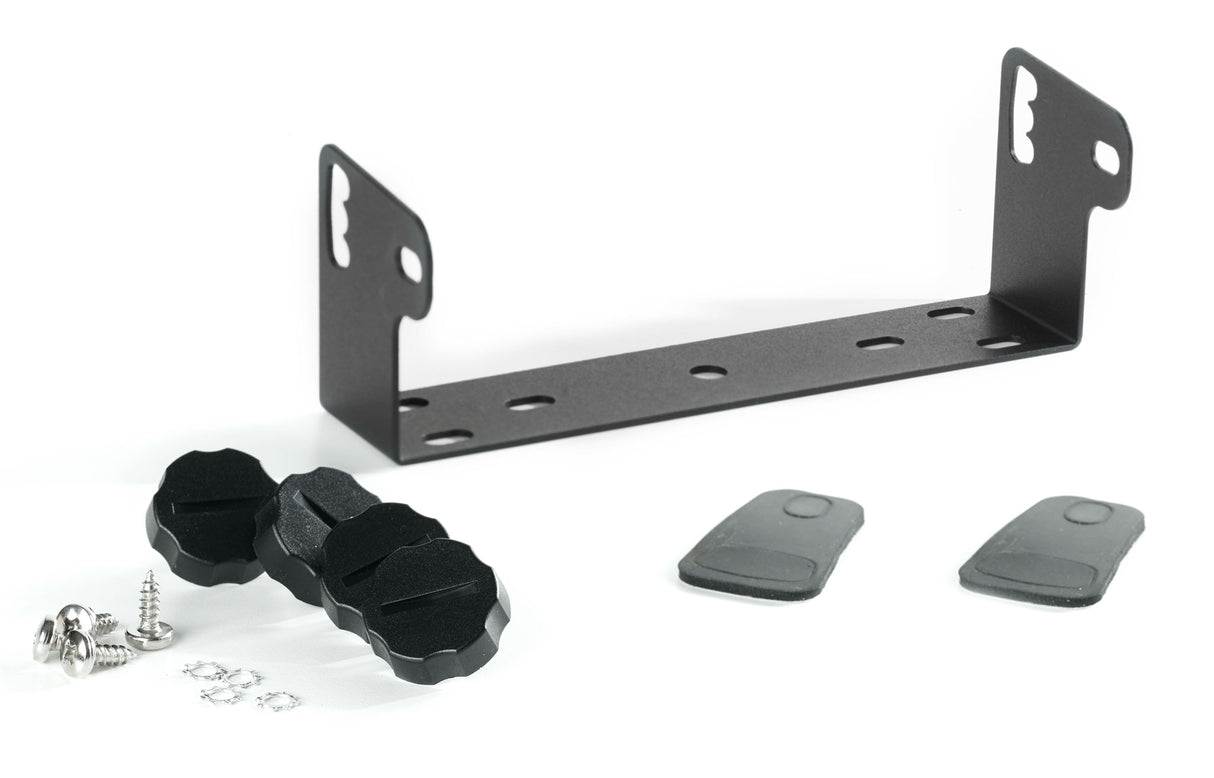

• 1 x Bracket
• 1 x Microphone Holder
• 1xCable
• 1 x Mounting Screws
• 1 PC or User Manual in English and Spanish
