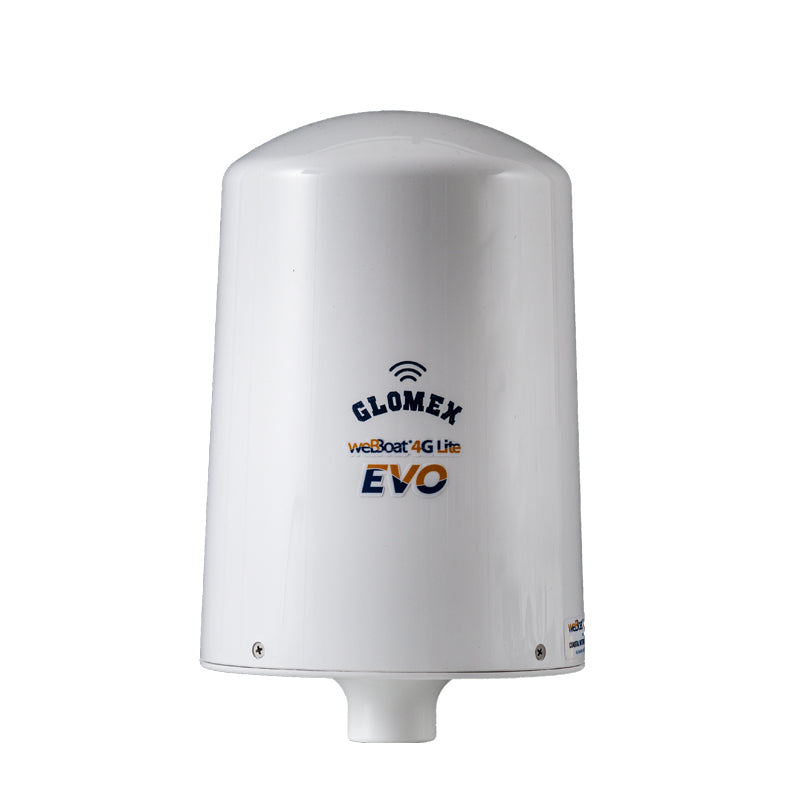

Glomex Webboat 4G Lite Evo

The WeBBoat 4G LITE EVO is the latest compact internet antenna system from Glomex for your boat. This internet antenna is suitable for use on a sailboat, powerboat, large yacht, steel ships and other vessels where an internet connection is preferred. This Glomex WeBBoat 4G Lite Evo offers the perfect balance between small size and great performance and provides stable and super-fast internet connection up to approximately 24km* (15 miles) from the coast, depending on conditions.

*The Range depends on the local situation and weather conditions.

With this Glomex WeBBoat 4G Lite Evo you have a WiFi range extender for your boat that can connect to the internet via both WiFi and 4G. With an internet connection via the Glomex WeBBoat 4G Lite Evo, a maximum of 24 devices can log in to the built-in router.

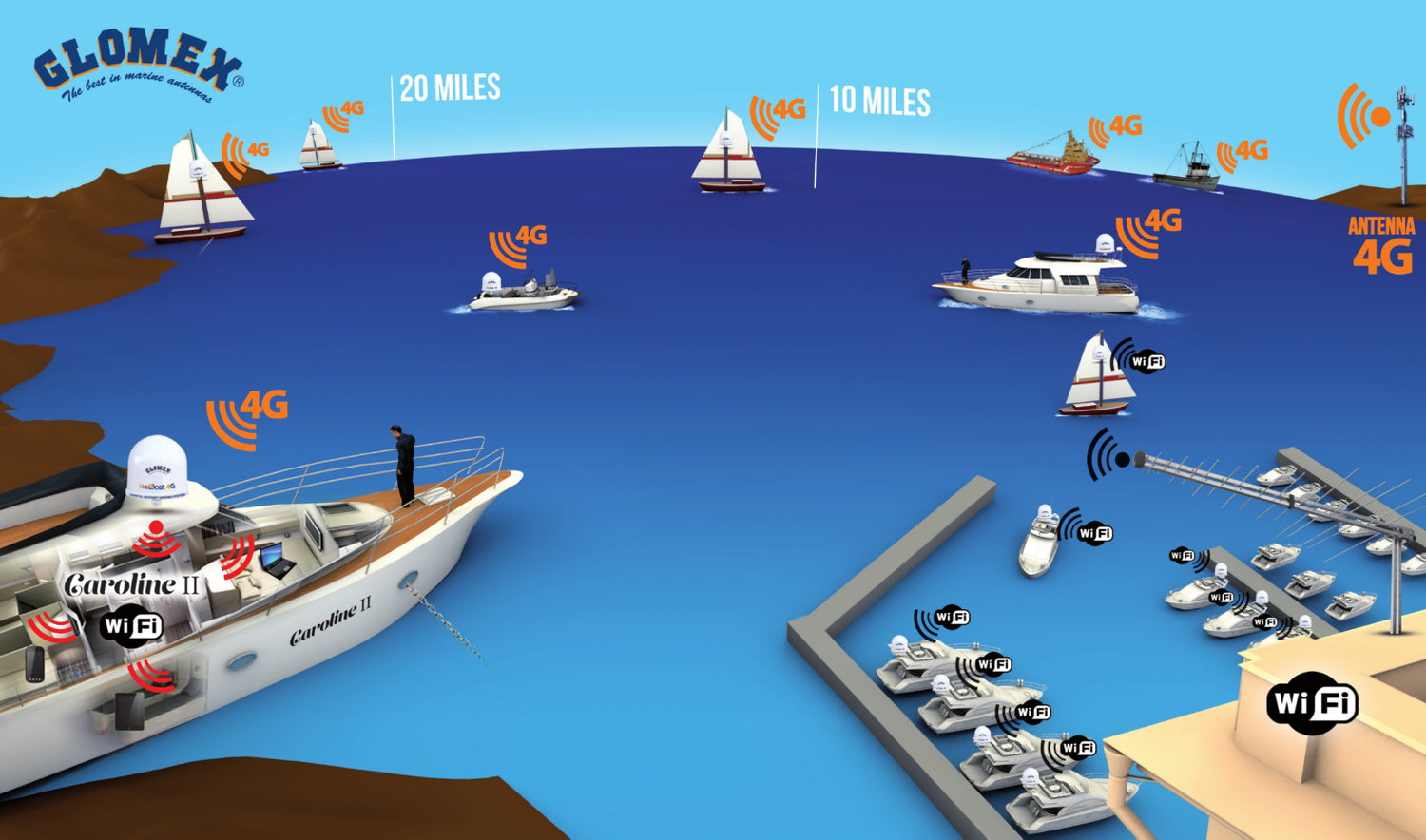

If the WiFi signal from the port is too far away to receive with your smartphone or tablet, the Glomex WeBBoat 4G lite Evo offers a solution. Depending on the local situation and the capabilities of the WiFi signal, you can bridge up to several hundred meters via WiFi with the WeBOAT 4G Lite Evo. When you return to a port where you have been before and the WiFi signal is recognized, the Glomex WeBBoat 4G Lite Evo automatically switches from 4G to the recognized WiFi signal.

Only 1 administrator can be registered per Glomex WeBBoat who can manage and configure the WeBBoat. This is for security reasons, so that, for example, nearby boat owners who also have a Glomex WeBBoat cannot log in to your WeBBoat route or that someone else can disrupt the WiFi settings.

WeBBoat 4G Lite Evo also suitable for steel ships

The Glomex WeBBoat 4G LITE EVO is also suitable for steel ships. Because many steel hulls of a ship block WiFi signals, the Glomex WeBBoat 4G LITE EVO is equipped with an extra LAN connection. This makes it possible to install a wired connection to the interior of the ship. You then connect an extra router to this wired connection or plug the cable directly into a network port on your laptop or PC. You will need a separate UTP cable with sufficient length for this. .

Why a Glomex WeBBoat 4G LITE EVO boat antenna

• WiFi Receive signal from the nearest port


• If you are out of range of a port, the WeBBoat switches to the built-in 4G connection. You do need a SIM card with a data subscription for this). You can easily set up the WeBBoat via a handy app on your tablet or smartphone. You can easily set up the WeBBoat via a handy app on your tablet or smartphone. This intuitive app is available for both IOS and Android devices and can be downloaded for free from the AppStore or PlayStore.

Connecting a Glomex WeBBoat 4G LITE EVO

You can easily connect the Glomex WeBBoat 4G Lite to your 12 Volt or 24 Volt on-board voltage. No further cabling is required. The Glomex WeBBoat 4G Lite Evo can be mounted on a 1 1/4 marine radio antenna base or completely flat (flush mount) on the roof. A standard flush mount ring is included for the latter mounting method.

Benefits of a Glomex WeBBoat 4G Lite EVO Wifi exender

• Plug'n Play Installation - Connect the antenna to a 12 or 24 volt power supply and after a short configuration you can go online


• Up to 15 nautical miles of connection via 3 or 4G (depending on the environment and installation.


• Surf directly via your 3 or 4G subscription from your telephone provider


• Reduces mobile data usage by automatically switching to a known WiFi network.


• Up to 24 devices can be connected and used simultaneously with the Glomex WeBBoat 4G Lite Evo internet antenna without sacrificing signal or performance.


• Intuitive Glomex WeBBoat app that allows you to easily install and manage your WeBBoat antenna. This can be downloaded for free from the Playstore or Appstore.


• The sturdy and UV-resistant housing of the Glomex WeBBoat 4G Lite Evo protects the interior of the antenna


• Automatic firmware updates

Features Glomex WeBBoat 4G Lite WiFi extender

• The weBBoat 4G Lite is equipped with two 4G / 3G diversity antennas; one diversity WiFi Antenna and an internal single SIM card slot and a super fast 3G / 4G / Wi-Fi router that creates a hot spot on the ship or on the boat.


• The built-in advanced switching software allows the user to save money on expensive roaming and other costs by automatically switching to Wi-Fi. The weBBoat 4G Lite Evo is a Plug & Play Device that requires only minimal set-up and works with one power cable for the antenna that operates from 10-30 Volts.


• All functions of this Glomex WeBBoat 4G Lite Evo can be controlled with the free App that is available for both Android and iOS devices.


• Installation is very easy by mounting the Glomex WeBBoat 4G Lite on a support or bracket. You connect the WeBBoat 4G Lite to 12Volt or 24Volt and go through the configuration via the App. You can download this app for free from the Android Playstore or the Apple App store.

The Glomex WeBBoat 4G Lite is equipped with:

• Single micro SIM card slot


• Renewed free WeBBoat Lite App with automatic firmware update to always have the best performance without being dependent on technicians.


• 2 diversity high-gain broadband 4G antennas for more internet bands


• New powerful WiFi antennas with double WiFi range to receive external WiFi signals such as from marinas, restaurants, campsites, etc.


• A built-in fast 4G/3G/WiFi router specially developed for the maritime world with a personal and secure WiFi network on the boat


• Automatically switch from 4G to WiFi to limit 4G costs

Specifications Glomex WeBBoat 4G Lite:

• Dimensions: Diameter: 140 mm x Height: 200 mm


• Antenna weight: 900 grams


• One SIM card slot


• Automatic switching software from Wi-Fi network to 4G


• 4G backup WAN function


• Wi-Fi connection speed up to 72 Mbps in DL


• LAN connection speed up to 100 Mbps in DL


• Power supply: 10/30 Volt (12/24 Volt)


• Other consumption: 500mA @12 Vdc

Networks:

• LTE FDD bands: B1/B3/B5/B7/B8/B20


• LTE TDD bands: B38/B40/B41


• DC- HSPA+/HASPA+/HSPA/UMTS: 850/900/2100 MHz


• GSM/GPRS/EDGE: 900/1800 MHz

Other characteristics:

• Mode LTE: DL 150 Mbps - 50 Mbps UL


• DC-HSPA+: DL 42 Mbps - 5.76 Mbps UL


• IEEE 802.11b/g/n WiFi standards (2.4 GHz): speed up to 72 Mbps in DL


• 1 x LAN 10/100Mbps Ethernet port


• 1 x WAN 10/100Mbps Ethernet port


• 2 LTE Diversity (high) performance antennas


• 1 x Wi-Fi antenna


• Android and iOS App for operation


• Easy installation > plug'n play 12/24V


• UV resistant antenna dome


• This type of Glomex WeBBoat 4G Lite Evo (IT1104EVO) is especially for Europe, the Middle East, Africa and Asia.

Most importantly, all functions of the Glomex WeBBoat 4G Lite Evo are controlled by the free app available for both Android and iOS devices. weBBoat® 4G Lite EVO has additional features such as automatic APN, SMS management/reading/sending to monitor internet consumption and automatic switching mode with built-in satellite internet devices/V-SAT and an encrypted real-time peer-to-peer connection for remote setup and service. that increase the performance and usability of your integrated Internet system.

Package contents

• 1x Glomex WeBBoat 4G Lite Evo


• 1x Manual in English, Italian, French, German and Spanish
