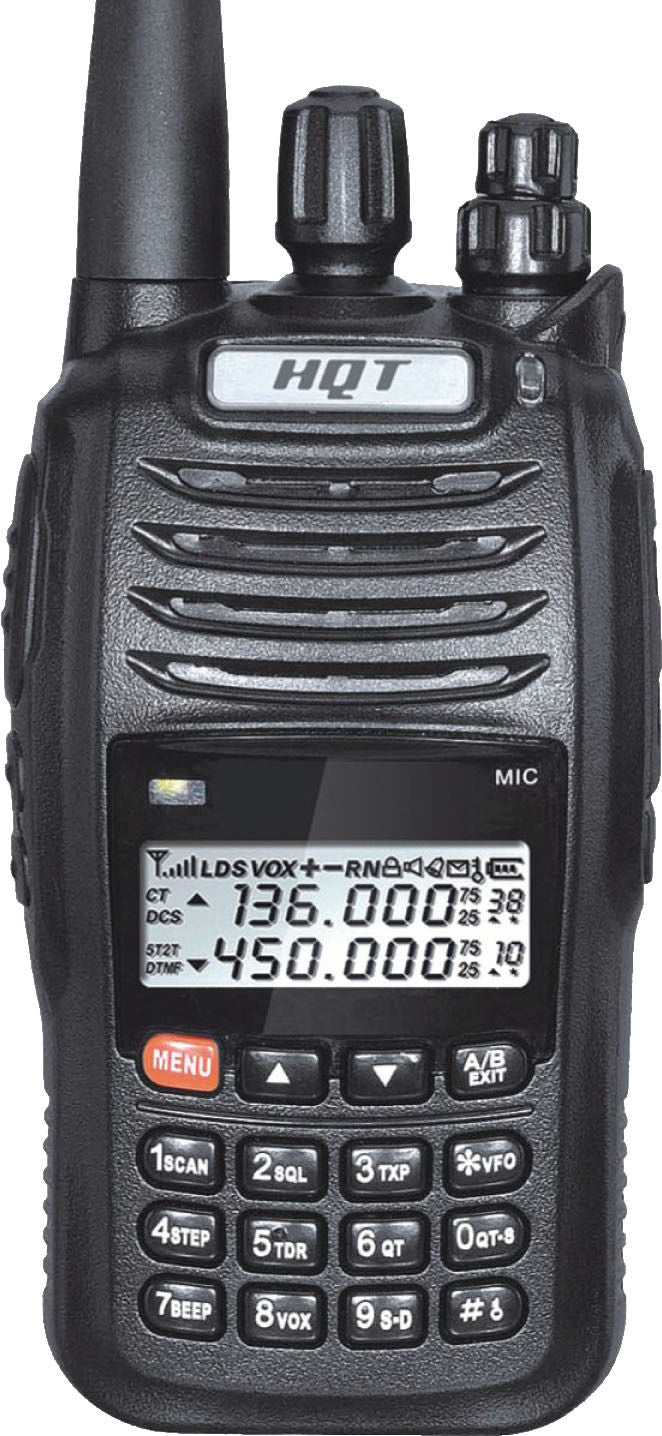

HQT TH-2890 (M-1443D2)

The HQT TH-2890 M-1443D2 is a 2m/70cm dual-band radio (amateur radio) with a transmission power of up to 5 Watts on the 2m band and up to 4 maximum Watts on the 70cm band. This HQT TH-2890 M-1443D2 comes complete with charger, belt clip and Lithium-Ion battery.

With the HQT TH-2890 M144D2 VHF/UHF radio it is possible to work in duplex mode. This device has two separately adjustable VFOs (Variable frequency oscillators). The 2m/2m, 2m/70cm and 70cm/70cm frequencies can be set on the HQT TH-2890 M1443D2. This makes it possible to use this portable VHF/UHF radio crossband. (e.g. 2m transmission and 70cm band reception). For example, if 2m/2m or 70cm/70cm band frequencies are set, you can listen to both frequencies. When transmitting on one band frequency, it is not possible to receive on the other VFO.

Features HQT HT-2890 M-1443D2

• Frequency range (TX and RX): 400 - 470 MHz and 136 - 174 MHz


• Number of channels: 199


• Normal Voltage: 7.5Volt DC


• Working temperature: -25°C to +55°C


• Battery: Lithium-ion 1600 mAh


• Working method (RX):



  • Simplex with the same frequency


  • Simplex with different frequencies


  • Duplex mode






• Output power:



  • VHF: 1 Watt / 5 Watt switchable


  • UHF:1 Watt / 4 Watt switchable






• Max. Frequency deviation: +/- 2.5 kHz and +/- 5 kHz


• Audio distortion <+-5%


• Frequency stability +- 2.5PPM


• Receiving sensitivity: 0.2µV


• Audio power >700mWatt


• Dimensions: 118x62x35mm


• Weight: 230 grams


• Colour black

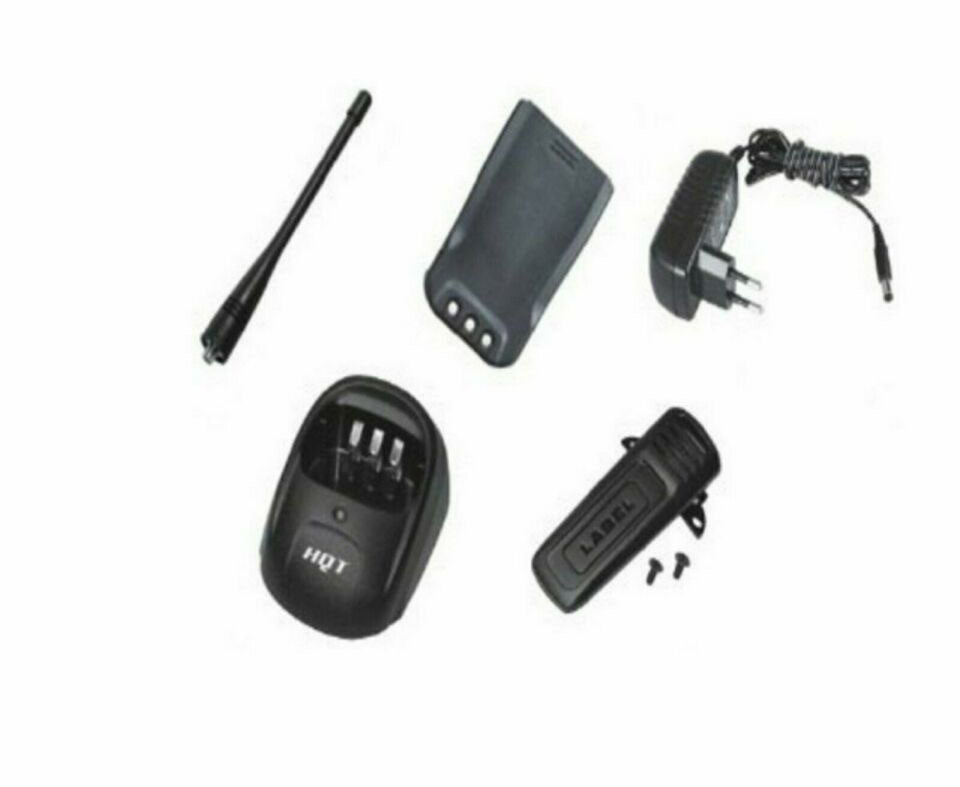

Package contents

• 1x HQT TH-2890 M-1443D2 VHF/UHF radio


• 1x Antenna


• 1x Lithium-Ion battery 1600mAh


• 1x Charger


• 1x Manual
