JCD-201M 8-Pin HF-Proof

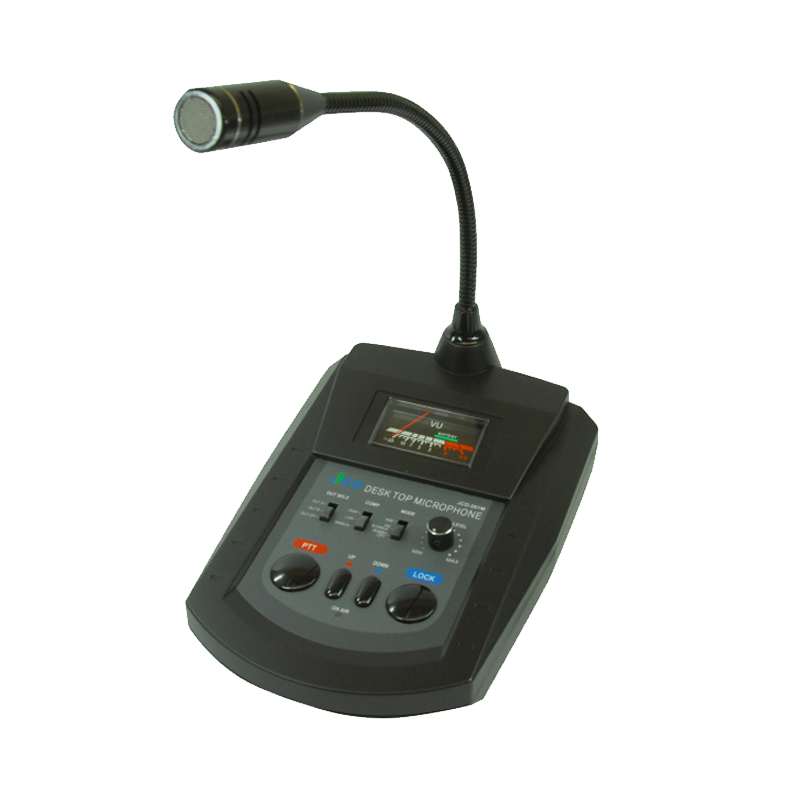

This JCD-201M 8-Pin HF-Proof (HF-Proof up to 100Watt) table microphone is suitable for radio amateur sets and comes with a free adapter cable to standard (RJ45) 8-Pin Kenwood.

Specifications JCD-201M 8-Pin HF-Proof table microphone:

• HF resistant up to 100 watts


• Two selectable output connectors 8-pin


• Compressor level: 'high/low' or 'manual'


• FM/SSB 'power on'/'power off' switch


• LOCK function


• UP/DOWN function (does not work on all transceivers)


• 'ON AIR' LED indicator


• Clear VU level meter (battery check)


• Electret condenser microphone type


• TX warning (alarm) after 2-3 minutes goes through TX. Microphone automatically switches back to RX


• Connector for optional PTT foot pedal (not included)

Connector wiring of the free 'standard Kenwood 8-pin (RJ45)' adapter cable:

1. DOWN


2. Not connected


3. MIC


4. MIC GND


5. PTT


6. GND


7. D.C


8. UP

NB!

Always carefully check that your transceiver is compatible with your version of the JCD-201M microphone. We are not responsible for any damage caused by improper use (or wiring) of the microphone to your microphone or transceiver

Package contents

• 1x JCD-201M table microphone 8-pin HF-Proof


• 1x Adapter cable to standard (RJ45) Kenwood 8-Pins
