Maas/Manson SPS-9400
Delivery time:
Delivery time:
Temporarily sold out
Maas/Manson SPS-9400 is backordered and will ship as soon as it is back in stock.
Why Customers Choose Deltron
✅ More than 17 years of expertise in communication equipment and accessories
Our knowledge is your security. Since 2007 we have been helping professionals and enthusiasts with reliable solutions.
✅ Fast delivery from stock
Ordered today = delivered quickly. No waiting time, but certainty.
✅ 100% original A-brand products
With us you only buy original, certified products from renowned brands – no counterfeits, no worries.
✅ Purchase on account for business customers (B2B)
Easy and trusted payment via invoice. Specially for companies and governments.
✅ Certified webshop with reliable reviews
Deltron is Webshop Keurmerk certified and reviewed via Trustpilot – so you can be sure that you are ordering safely and reliably.

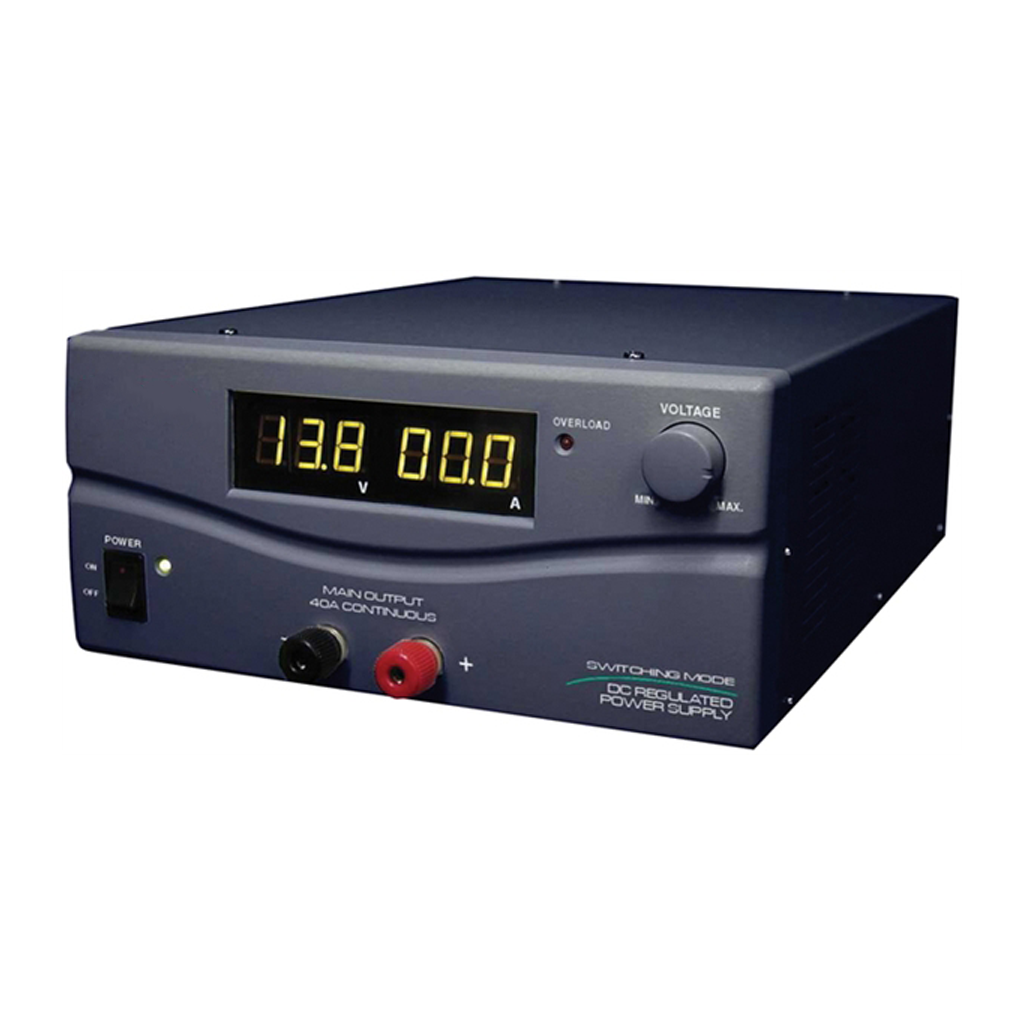

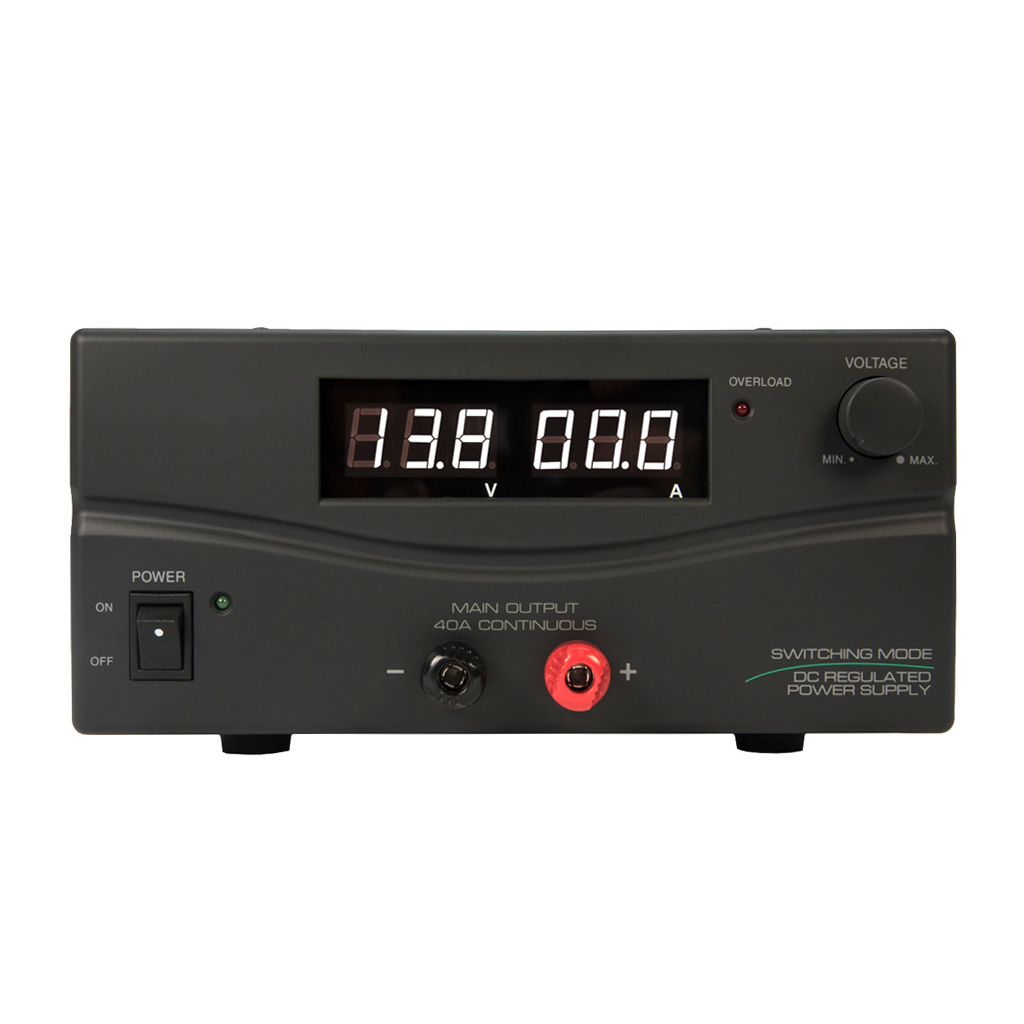

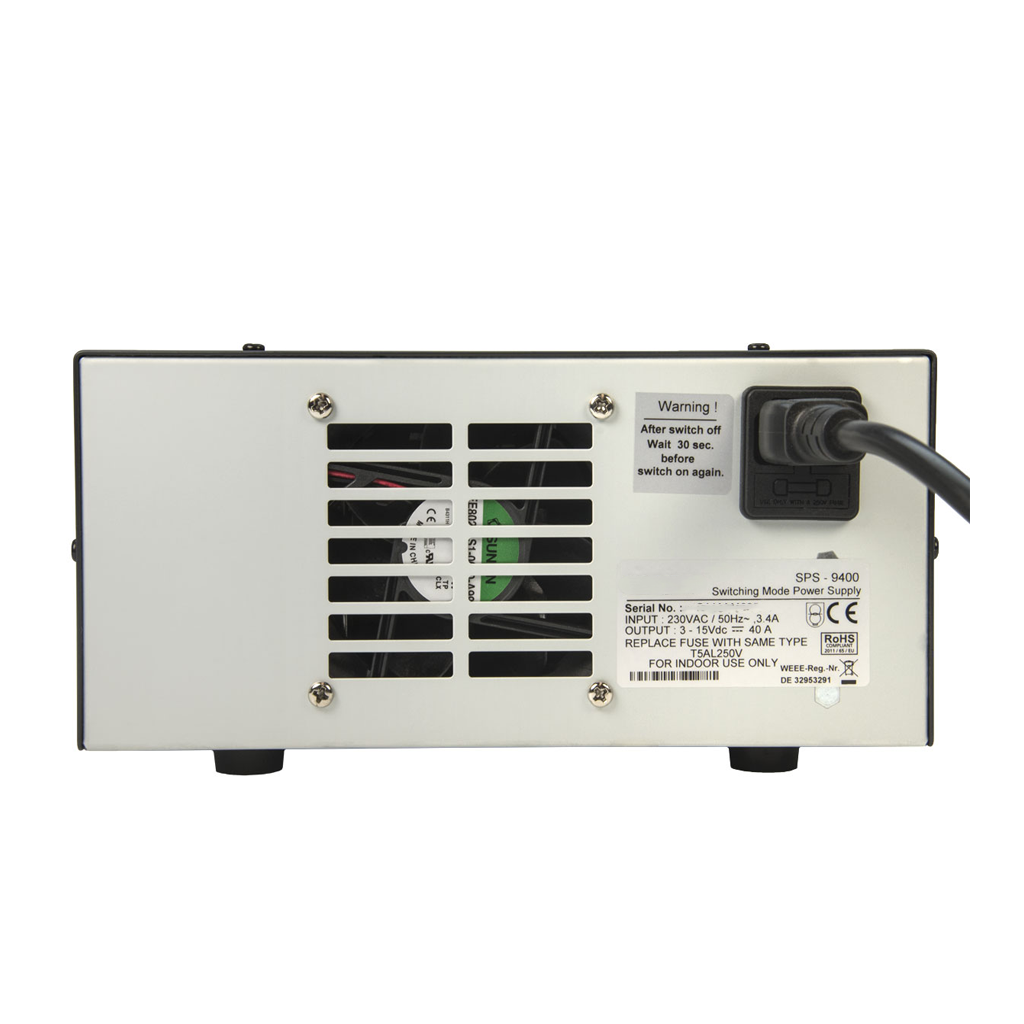

The K-PO / Manson SPS-9400 is a high-quality power supply in a lightweight and compact housing. The K-PO / Manson SPS-9400 delivers an output voltage of 40 amps. The K-PO / Manson SPS-9400 is suitable for a wide range of applications such as various radio equipment. In addition to the variable output from 3 Volt to 15 Volt, a fixed voltage of 13.8 Volt can also be selected. This power supply is protected against overload, excessive temperature and overvoltage.
Specifications K-PO / Manson SPS-9400:
- Output voltage: 40 amps
- Adjustable output voltages from 3V to 15V
- Adjustable fixed voltage of 13.8 Volt
- Light weight and small size
- Overtemperature protection
- Overvoltage protection at 16.5V
- Variable speed thermally controlled fan.
- High RFI stability
- Power factor correction > 0.95
- Constant current overload protection
- Floating ground
- Low ripple and noise
- Type: Switch mode
- Input voltage: 200-240VAC 50Hz ~ (or on request)
- Rated output power: 600W
- Number of output: 1
- Output voltage range: 3-15V
- Output current range: 40A
- Voltage load regulation:? 200mV
- Current tax arrangement:-
- Voltage line regulation:? 50mV
- Current regulation: -
- Output ripple and noise:? 50mVp-p
- Voltage Setting Resolution: -
- Voltmeter and accuracy: 3-digit LED display ± (1% + 2counts)
- Current set resolution: -
- Current Meter Digit and Accuracy: 3 Digit LED Display ± (1% + 2counts)
- Additional output voltage: N/A
- Auto range (con): No
- Constant current mode: Yes
- Remote programming: No
- Connection type: N/A
- Preset program: No
- Internal program: No
- Commend Set: N/A
- Optimal efficiency: 79%
- Cooling method: thermostatic control fan
- Protections: over temperature, short circuit, over voltage
- Certification: CE EMC: EN 55022 LVD: EN 60950
- Dimensions W 220mm x H 110mm x D 220mm
- Weight: 2.7kg
