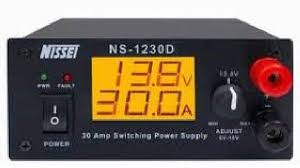

Nissei NS-1230D

Specifications Nissei NS-1230D:

• Power supply with switching mode


• New digital switching power supply connecting current version to analog instrument NS-1230M.


• Adjustable voltage from 5 to 16 VDC and current output from 25A @ 13.8Vdc to 30A intermittent max.


• Input power adjustable between 110 and 220 Volt. (± 10% and 47-63Hz), with compact dimensions and low weight.


• Large LCD screen with backlight for easy reading


• Forced cooling fan


• Output connections: Output connections on the front


• Output connections: Anderson Type on rear


• Precise output voltage adjustment with peak-to-peak ripple of less than 0.3%


• Digital meter for volts and amperes


• Input voltage: 220 to 240 Volts


• Input: power cord with 2-pin EU / Schuko


• Output voltage: adjustable 5 to 16 Volts or fixed 13.8 Volts


• Output current: 25 to 30 amps


• Output connections Front: terminal output connections


• Rear output connections: Anderson type

Package contents

• 1x Nissei NS-1230D power supply


• Manual in English
