President Harrison II ASC

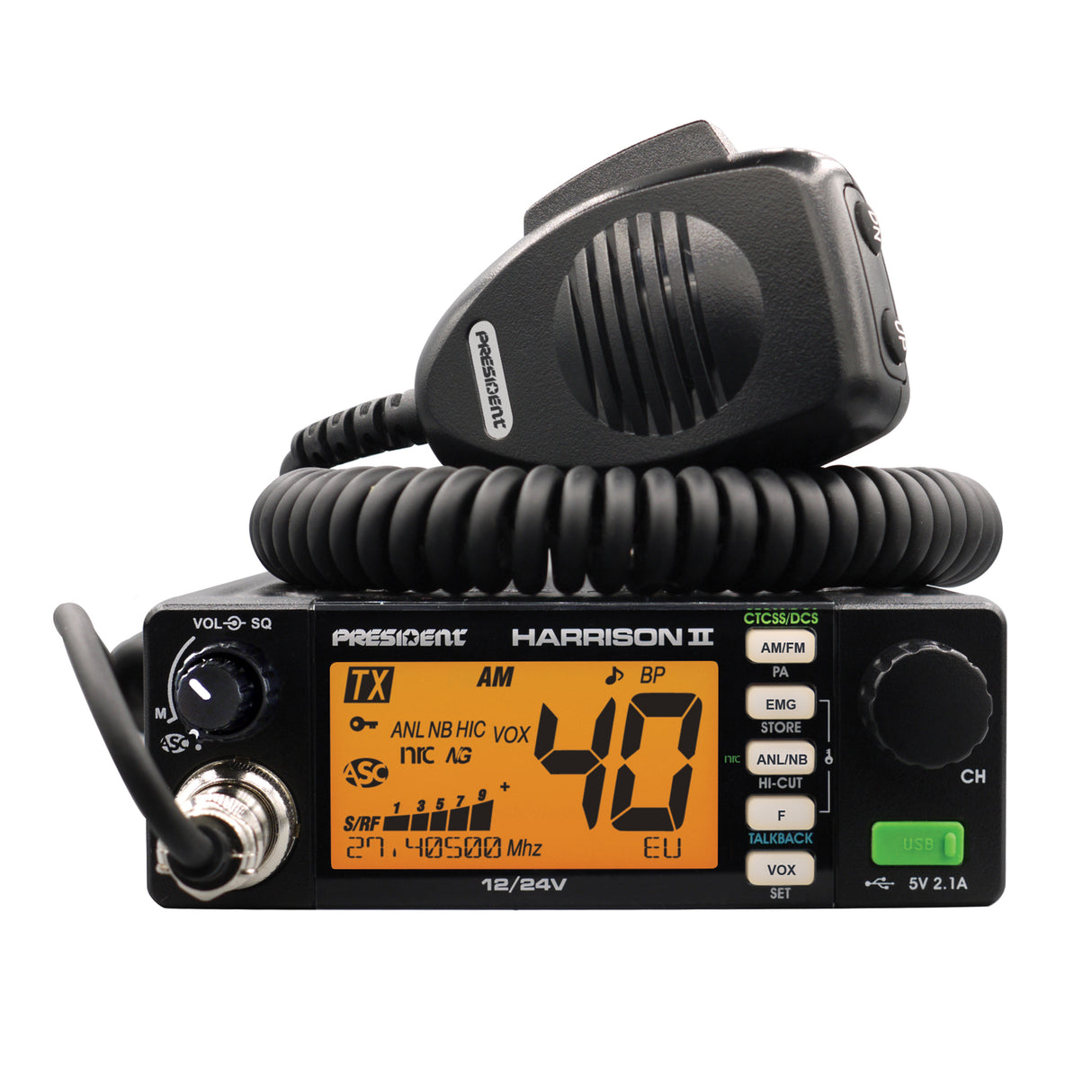

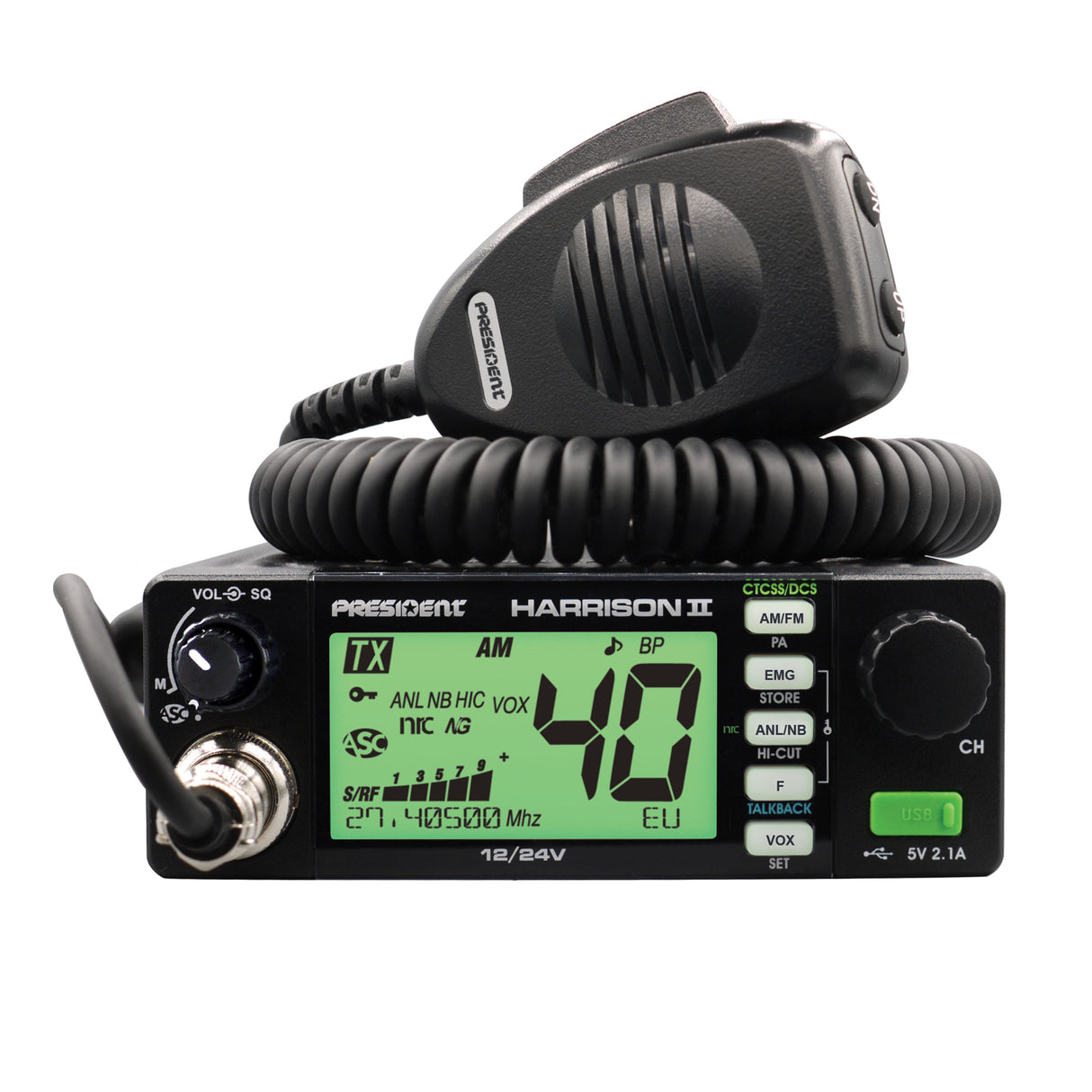

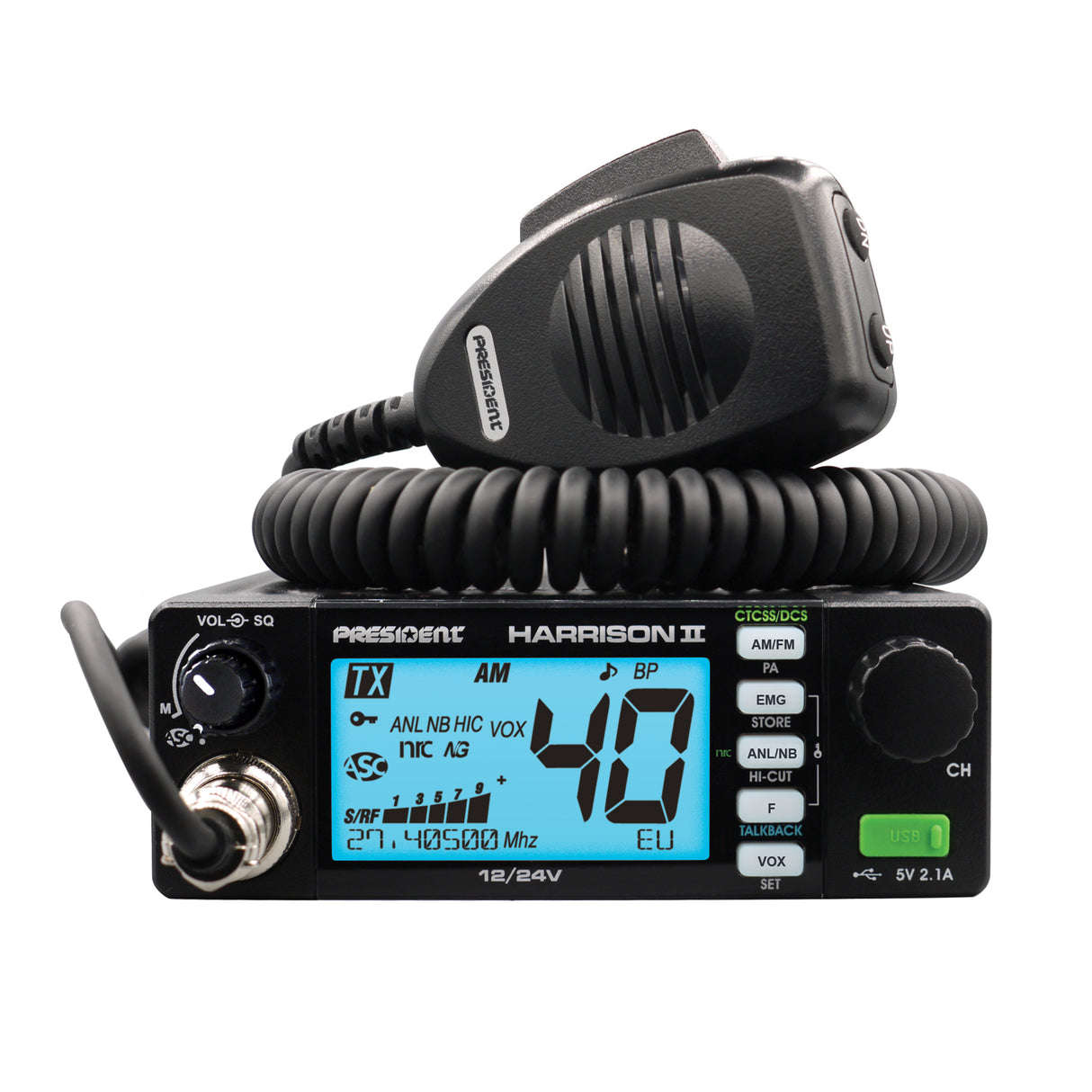

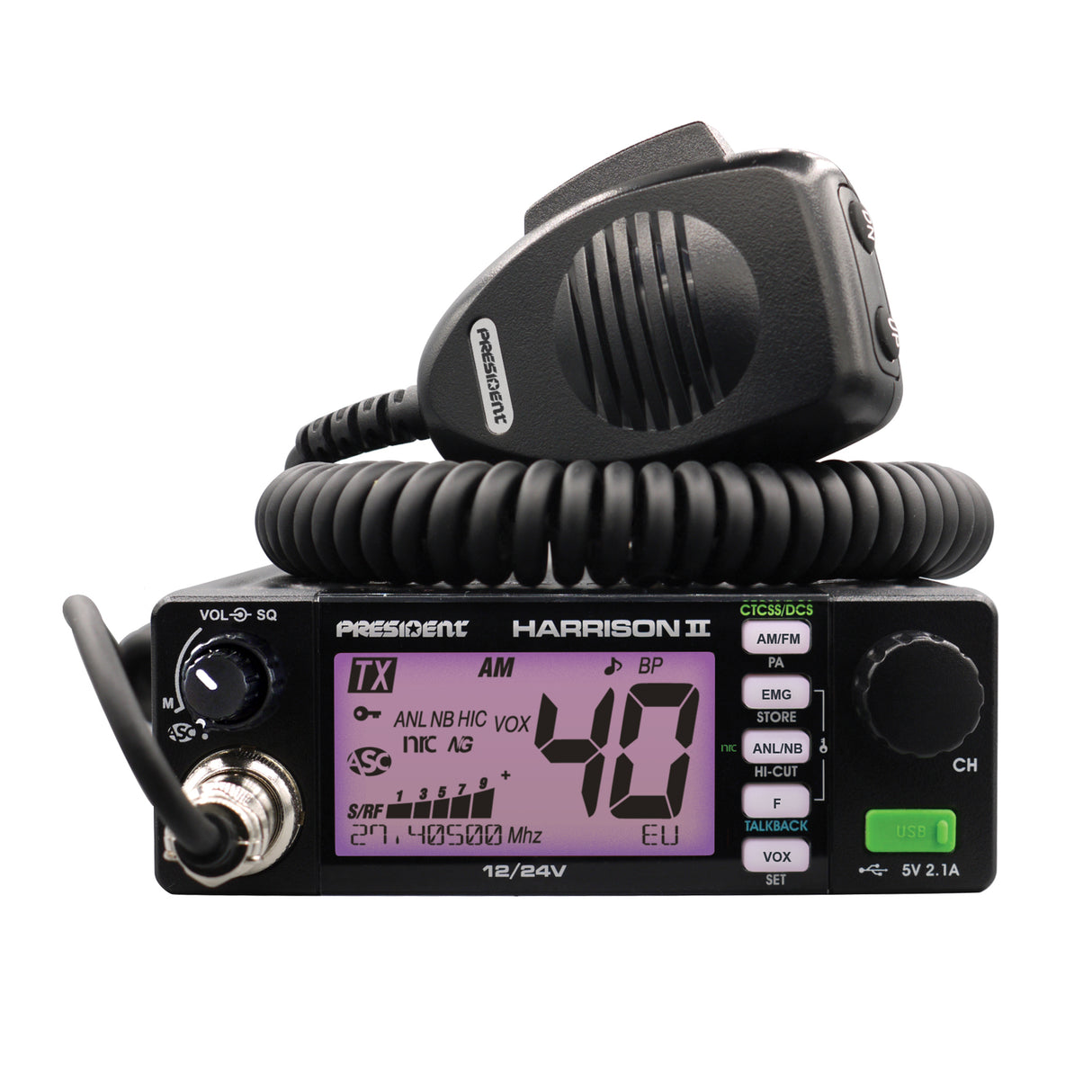

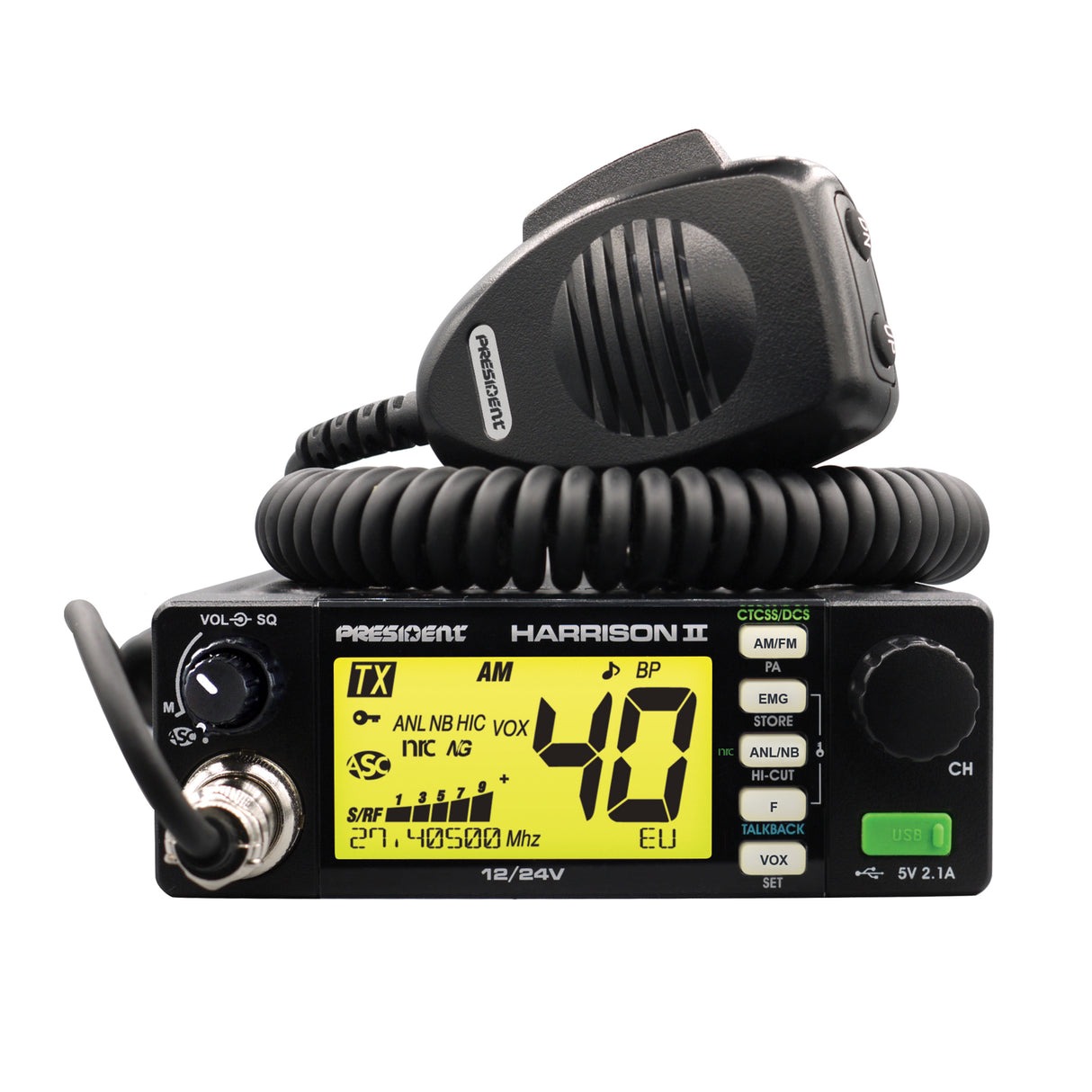

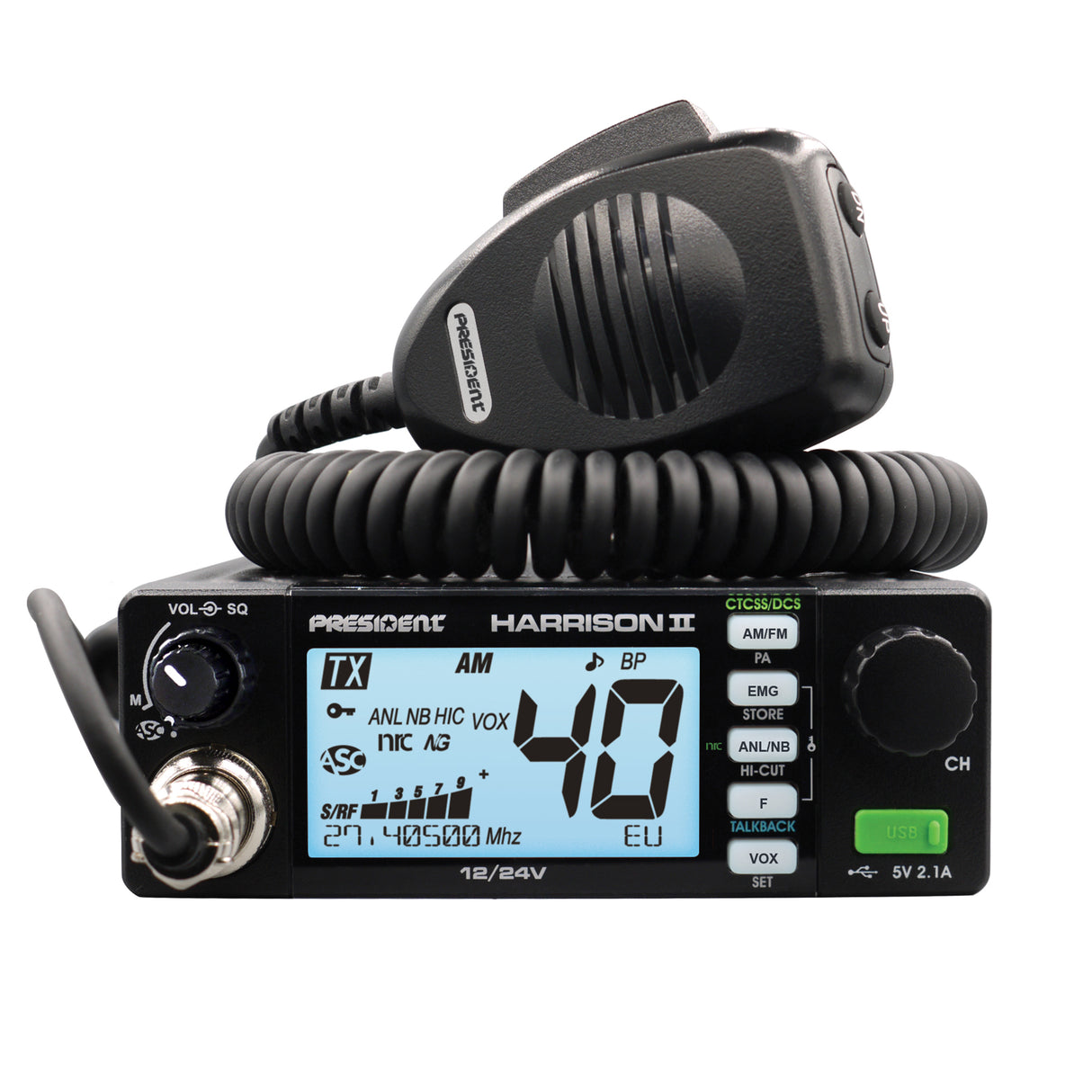

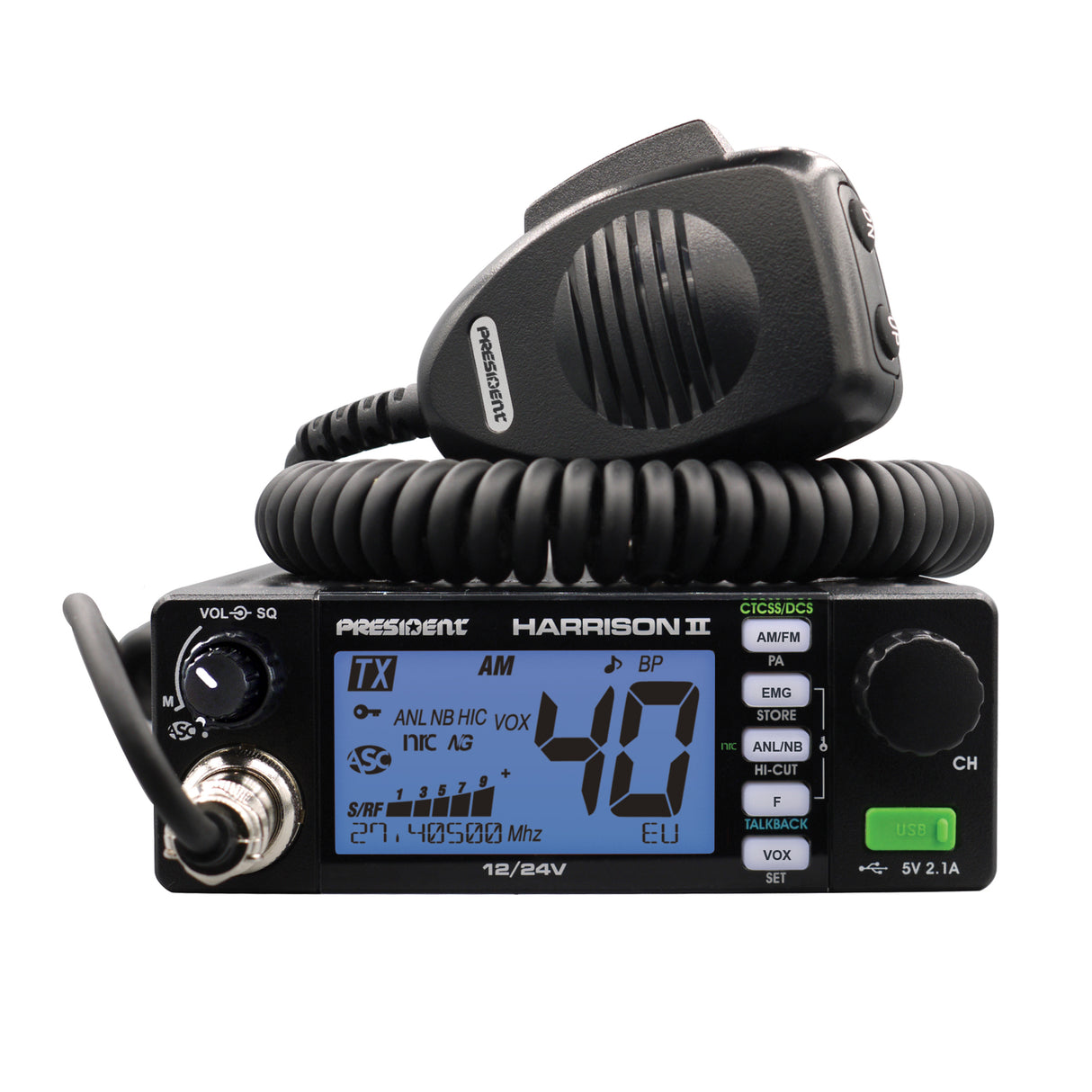

The new President Harrison II ASC is a 27Mhz with a frequency range of 26.965 to 27.405MHz (AM/FM) that can be connected to both 12Volt and 24Volt. The display of the President Harrison II is adjustable in 7 different colors: green, orange, purple, blue, turquoise, yellow and bright blue. The Harrison II is also equipped with a USB connection and VOX function.

Transmitter

• Audio frequency response: 300 Hz - 3 kHz
• Microphone sensitivity: 7 mV
• Frequency allowance: ± 200 Hz
• Transmission interference: inferior to 4 nW (- 54 dBm)
• Emitted power in the adjacent channel: inferior a 20 μW
• Modulated signal distortion: 2%
• Drain: 13.2 Volt: 1.7 A / 26.4 Volt: 0.85 A

Receiver

• AM sensitivity: 0.5 µV - 113 dBm
• FM sensitivity: 0.35 µV - 116 dBm
• Frequency response: 300 Hz - 3 kHz
• Adjacent channel selectivity: 60 dB
• Maximum audio power: 3 Watts
• Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
• Frequency image rejection rate: 60 dB
• Intermediate image rejection rate: 70 dB
• Drain: 13.2 Volt: 180 - 500 mA / 26.4 Volt: 90 - 250 mA
