Shackmaster Power 500

The new Shackmaster brand, Powered by RigExpert, delivers very high quality and aesthetic innovations. This Shackmaster Power 500 is a compact, ultra-modern power supply that takes user-friendliness and experience to a whole new level. The Power 500 is the first to enter the market in the high-end class of Shackmaster,

The Shackmaster Power 500 is expected soon and can now be pre-ordered.

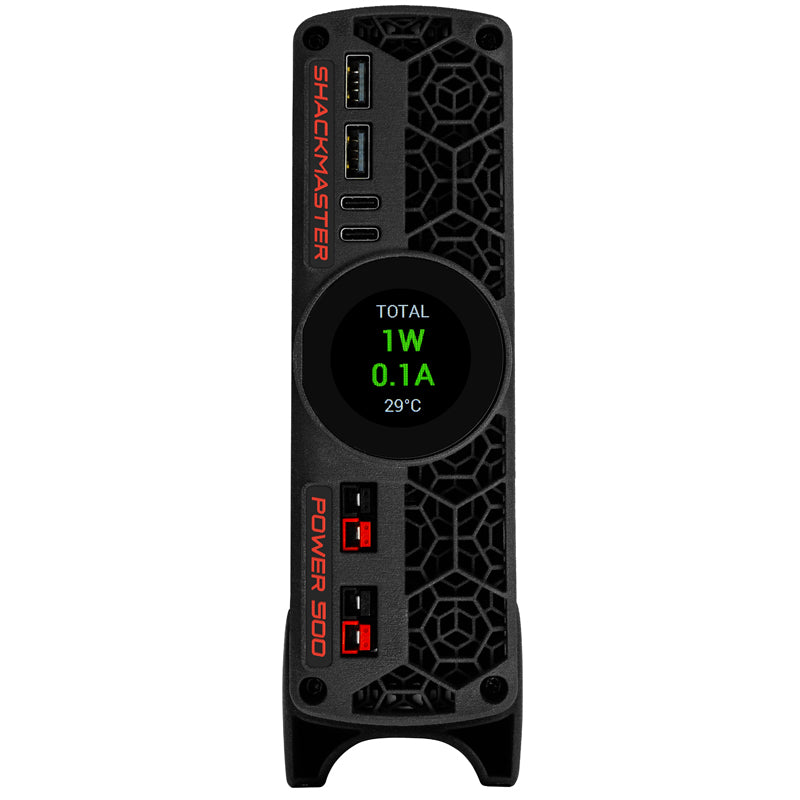

With the Shackmaster you protect your devices against overcurrent, overvoltage, overheating and minimize electromagnetic interference and acoustic noise. You can place the Shackmaster Power 500 both horizontally and vertically on your desk, table or workplace, the digital display automatically tilts to the correct position so that you can read it straight.

In addition, this Shackmaster Power 500 offers real-time monitoring of voltage, current and energy consumption. All this ensures a consistent and reliable power supply for your devices. The Shackmaster Power 500 provides sufficient power for demanding tasks and energy-intensive setups. The Power 500 is also equipped with sufficient ports for connecting various devices. With the Shackmaster Power 500 you can easily charge devices, connect peripherals or power USB-compatible devices and record and analyze consumption data.

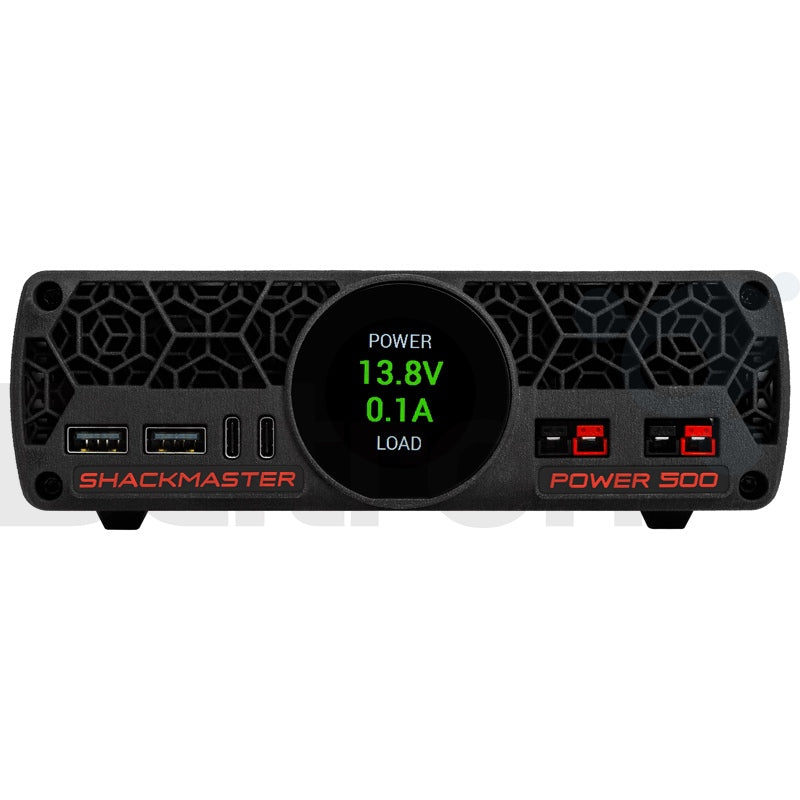

The Power 500 power supply has a large round LCD display with touchscreen (touch screen) to operate the various functions and has a USB interface for logging consumption data and updating the firmware.

The Shackmaster Power 500 is suitable for use with amateur radios, low noise, low power amplifiers, laboratory equipment, telecom, DYI, purchasing of mechanical and electrical equipment, power supply for PoE systems etc.

Why use a Shackmaster Power 500 power supply

• Provides consistent and reliable power to your devices and maximizes the life of overload-sensitive devices.


• Protects your devices against overcurrent, overvoltage and overheating


• Minimizes electromagnetic interference and acoustic noise


• Can be placed ergonomically at your workplace through vertical or horizontal installation


• Provides power for demanding tasks and energy-intensive setups.


• Offers a variety of ports for connecting different equipment.


• Charges devices, connects peripherals or powers USB-compatible devices


• Monitors voltage, current and energy consumption in real time


• You can record and analyze the consumption data


• Works flawlessly in DXpeditions thanks to its tolerance for gasoline generators and wide operating temperature range.

Every Shackmaster device goes through four stages of quality control before shipping, which is why Shackmaster is confident in the quality of their products.



Features Shackmaster Power 500 power supply

• Multifunctional LCD touchscreen

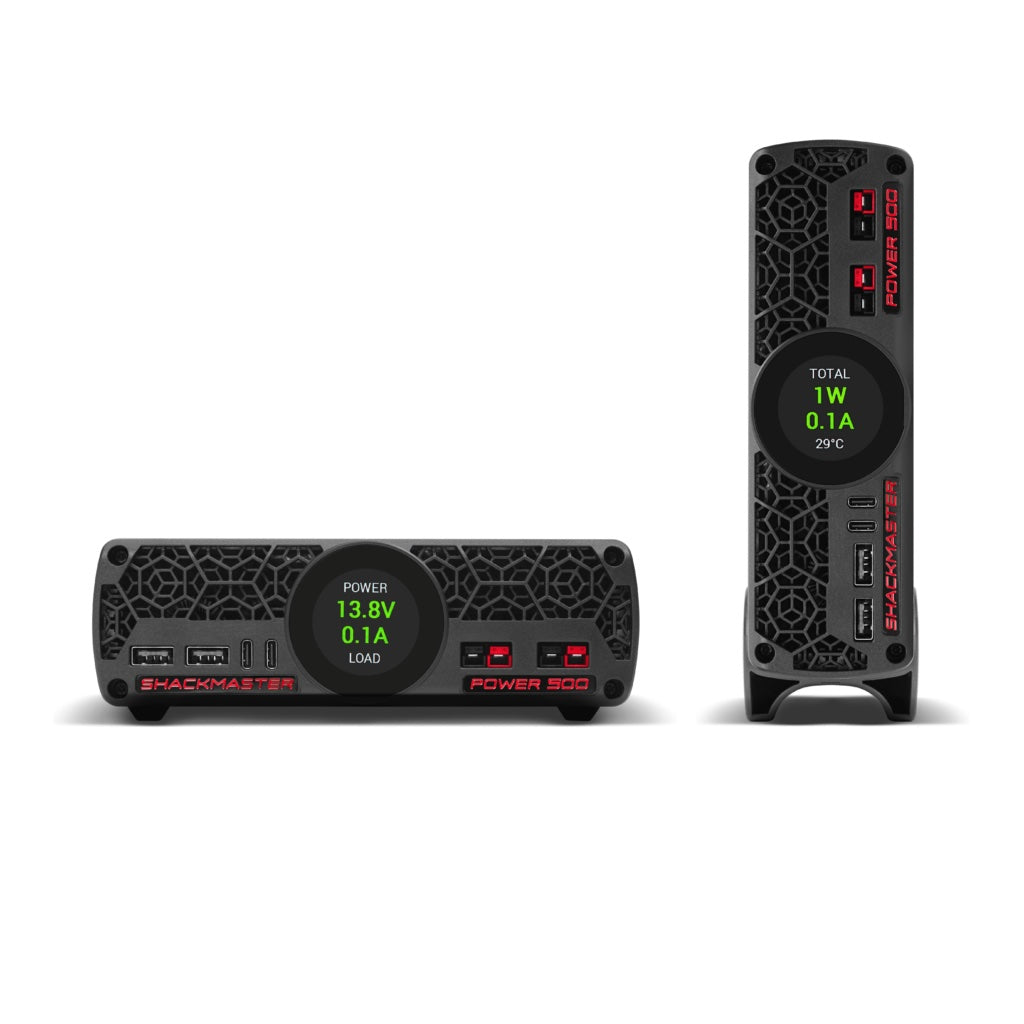

• LCD display rotates automatically when the power supply is placed horizontally or vertically


• Low EMI and acoustic noise


• Acoustic noise: 21dB


• Number of ports



  • 4 x Anderson ports


  • 2 x USB Type A ports


  • 2 x USB Type C ports


  • 1 x Binding post






• Nominal power: 500Watt


• Nominal current: 36 amps


• Output voltage: 13.8 Volts


• Noise: 200mVp-p


• Equipped with a fan


• Input voltage range: 80 Volts to 264 Volts


• Input frequency range: 47Hz to 63Hz


• Alternating current: 5.8A @ ​​110VAC | 2.9A at 230VAC


• Protection against overvoltage and overcurrent


• Short circuit protection


• Working temperature range: -30°C to +70°C


• Storage temperature range: -40°C to +85°C


• EMC Emission:



  • Class I: class B


  • Class II: Class A






• Dimensions: 172mm x 55mm x 185mm


• Weight: 1.25kg

English

The Shackmaster Power 500 protects your devices from overcurrent, overvoltage, and overheating. Minimizes electromagnetic interference and acoustic noise. Can be placed horizontally or vertically. Provides real-time monitoring of voltage, current, and power consumption. Ensures consistent and reliable power supply to your devices. Provides enough power for demanding tasks and power-intensive setups. Offers ample ports for connecting various devices. Charges devices, connects peripherals, or powers USB-compatible gadgets. Lets you log and analyze consumption data.

Why use a Shackmaster Power 500

• Ensures consistent and reliable power supply to your devices and maximizes the life of overload sensitive devices.


• Protects your appliances from overcurrent, overvoltage and overheating


• Minimizes electromagnetic interference and acoustic noise


• Ensures ergonomics of your workspace due to vertical or horizontal arrangement


• Provides power for demanding tasks and power intensive setups.


• Offers a variety of ports for connecting various gear.


• Charges devices, connects peripherals or powers USB compatible gadgets.


• Monitors voltage, current and power consumption in real time


• Lets you log and analyze consumption data


• Runs flawlessly in DXpeditions thanks to its tolerance to gasoline generators and wide operating temperature range.

Package contents

• 1x Shackmaster Power 500 power supply


• 1x Manual in English

Shackmaster - Powered by RigExpert
