Features:

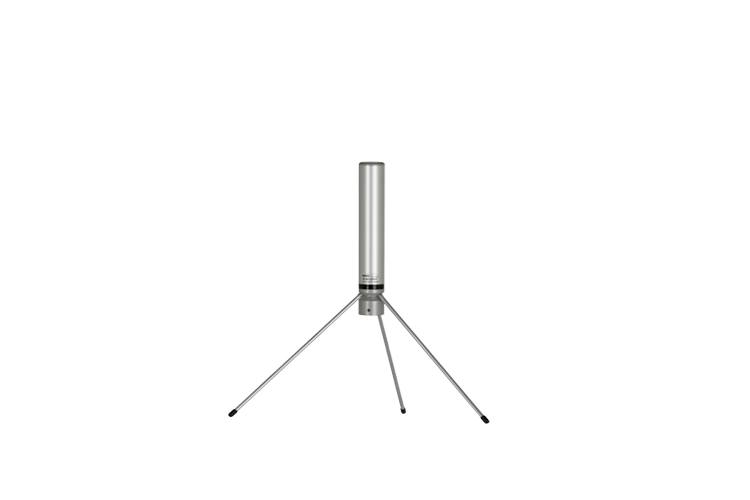

- Base station antenna, Wide band
- Unity gain, Omnidirectional
- Protection from static discharges DC-Ground
- Perfect protection against the worst weather conditions
- Made of anodized aluminum alloy
- Stainless steel hardware
- Side mast mounting allowed by optional bracket FT-2
Electrical Data:
- Type: 1/4λ ground plane large band
- Frequency range SWR ≤ 2: 76-88 MHz
- Gain: 0 dBd – 2.15 dBi
- Max. Power (CW) @ 30°C: 1000 Watts

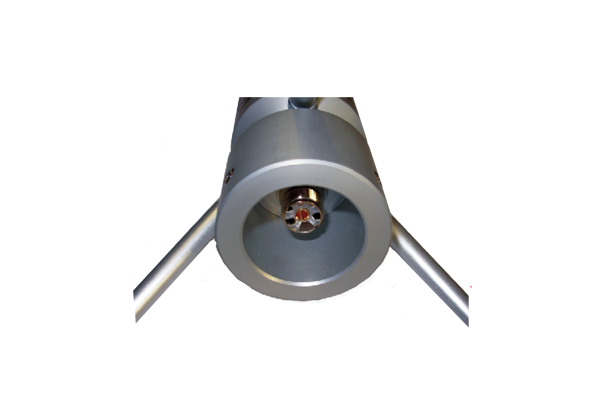

- Connector: UHF female
Mechanical Data:
- Materials: Anodized Aluminum, Stainless Steel, Nylon
- Height (approx.): 1400mm
- Weight (approx.): 1710 gr
- Mounting mast: Ø 36-40 mm
