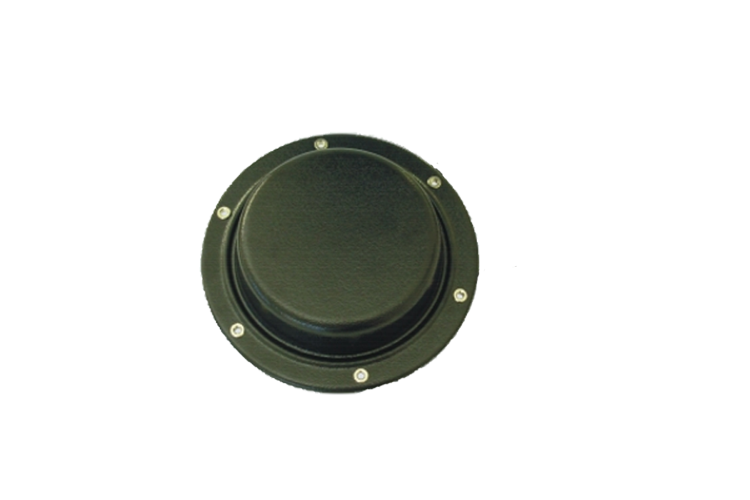

Sirio LPA 380 BNC M

This antenna is suitable for ceiling mount installation. The radome is waterproof to ensure long life. Radiation is omnidirectional and the antenna is vertically polarized.



Features:

•
  Low profile mobile antenna designed for use on vehicles operating under severe height limitations such as buses, trains, trams, etc


•
  Mono band, Unity gain, Omnidirectional


•
  Protection from static discharges DC-Ground


•

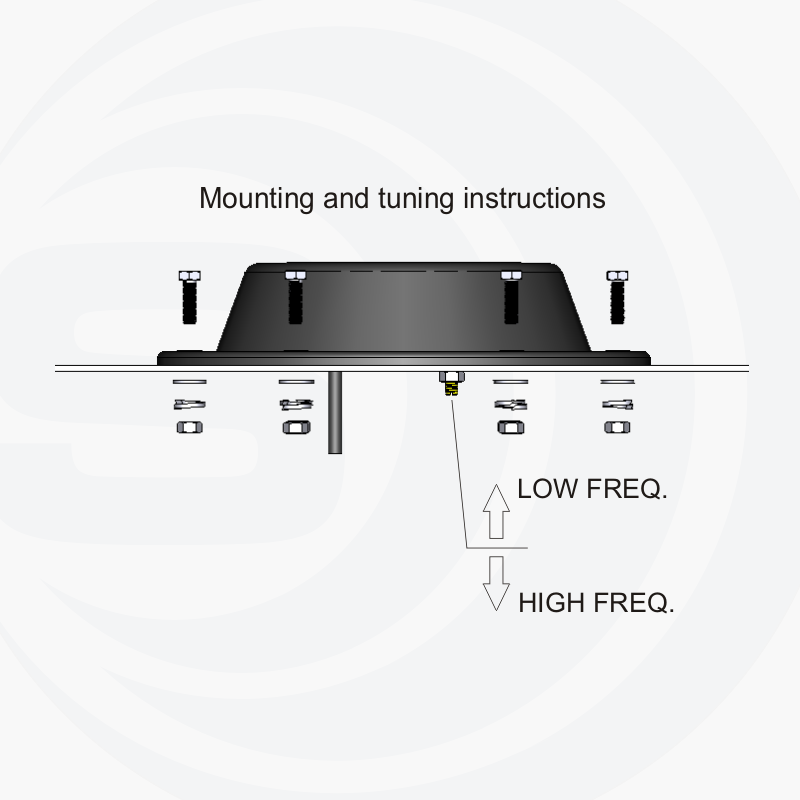

  Tunable by acting on internal screw

Electrical Data:

•
  Frequency range: tunable 380...430 MHz


•
  Radiation (H-plane): 360° omnidirectional


•
  Radiation (E-plane): beamwidth @ -3 dB= 78°


•
  Polarization: linear vertical


•
  Gain: 2 dBi (0 dB ref. to a λ/4 whip) @ resonant freq.


•
  Max Power (CW) @ 30°C: 100 Watts


•
  Grounding protection: all metal parts are DC-grounded, the inner conductor is coupled capacitively


•
  Cable Length / Type: 1 m / RG 58 C/U


•
  Connector: BNC male

Mechanical Data:

•
  Materials: ABS UV stabilized, Aluminum, Brass, Steel


•
  Dimensions (approx.): Ø 183mm, height 36mm


•
  Weight (approx.): 400 gr


•
  Operating temperature: -40°C to +80°C


•
  Mounting Hole: 6x Ø4.5mm + 2x Ø16mm

Package:

•
  1 x Sirio LPA-380 BNC M


•
  1x Mounting material


•
  1 x Hole Template


•
  1 x User Manual
