Solarcon Antron A99
Solarcon Antron A99 is backordered and will ship as soon as it is back in stock.
About this product
About this product
Delivery time:
Delivery time:
1-3 Business Days
De levertijd kan langer zijn vanwege de drukte bij onze vervoerders

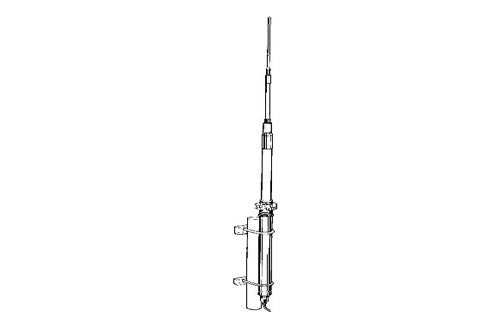

The Solarcon Antron A99 is a high performance antenna designed for precise tuning and robust performance. The Antron A99 is equipped with dual adjustment rings that allow you to easily optimize the SWR over a wide range of frequencies. Turning the rings up increases the frequencies, while turning them down decreases the frequencies. Constructed of durable fiberglass, the Antron A99 provides exceptional strength and minimizes the risk of breakage.
The Solarcon Antron A99 offers excellent performance and reliability with its 2000 Watt PEP, ideal for a wide range of applications and frequencies

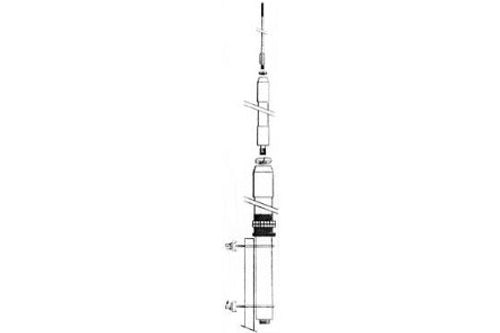

About the Solarcon Antron A99
-
Connector on the lower section: When measuring with a multimeter on the UHF-Female (PL-259) between the conductor and the ground, a short circuit will be measured. This is due to the special design of the A99, which is very different from most 'regular' antennas. This result is the same, whether you check only the lower section or all sections.
-
Middle section: When measuring with a multimeter between the top and bottom of the middle section, continuity will be displayed.
-
The Capacitor: The Max2000 has a capacitor in the center section because it is a 5/8 wave antenna, but there is NO capacitor in the center section of the A99 because it is a 1/2 wave antenna.
-
Color: There is always a slight color difference between the bottom section and the middle/top section. This difference is due to variations in the production of these sections.
