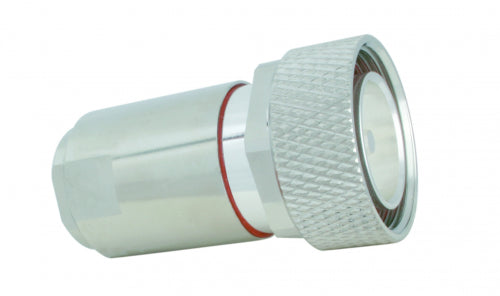

SSB 7-16 DIN Male Ecoflex-15 (Plus)

The 7-16DIN Male clamp connector from SSB is ideal for Ecoflex-15, Ecoflex-15 Plus and LMR 600 coaxial cables. This solderless connector is easy to assemble and offers excellent performance with a PTFE insulator and rubber seal. With a nickel-plated finish, RoHS compliance, and an IP 65 protection rating, it is suitable for a variety of conditions. It supports frequencies up to 6 GHz, has a 50 Ohm impedance, and offers low contact resistances and high return loss for reliable connections. Perfect for professional applications in telecommunications.

Features of the 7/16DIN Male clamp connector

• Connector type: 7/16DIN clamp
• Suitable for: Ecoflex-15 / Ecoflex-15 Plus / LMR 600
• Insulator: PTFE
• Gasket: Rubber
• O-ring: Rubber
• D Gasket in silicone fitting surface
• Surface: nickel plated
• Metal parts excl. pin CuZn39Pb3
• Pin (diamagnetic) silver-plated / silver-plated
• Operating temperature -45°C / +155°C
• RoHs compliant Standard: IEC 60 169-4
• protection class IP 65
• Working voltage ≤ 1000 V RMS
• impedance 50 Ohm
• Insulation resistance ≥ 10 GΩ
• Frequency up to 6 GHz
• Inner contact resistance ≤ 0.4 mΩ
• Outer contact resistance ≤ 1.5 mΩ
• Clutch torque: 25-35 Nm
• Return loss:
  • ≤ -45.9dB@1GHz
  • ≤ -36.3dB@3GHz
  • ≤ -28.3dB@7.5GHz
• Insertion loss: ≤ 0.05 dB
• Weight 146g

Assembly information

• Inner conductor: clamps / Inner conductor: to clamp
• Outer conductor: to screw
