SSB Ecoflex-15 FRNC / 25 meters
Delivery time:
Delivery time:
1-3 Business Days
SSB Ecoflex-15 FRNC / 25 meters - 25 meters is backordered and will ship as soon as it is back in stock.
Why Customers Choose Deltron
✅ More than 17 years of expertise in communication equipment and accessories
Our knowledge is your security. Since 2007 we have been helping professionals and enthusiasts with reliable solutions.
✅ Fast delivery from stock
Ordered today = delivered quickly. No waiting time, but certainty.
✅ 100% original A-brand products
With us you only buy original, certified products from renowned brands – no counterfeits, no worries.
✅ Purchase on account for business customers (B2B)
Easy and trusted payment via invoice. Specially for companies and governments.
✅ Certified webshop with reliable reviews
Deltron is Webshop Keurmerk certified and reviewed via Trustpilot – so you can be sure that you are ordering safely and reliably.

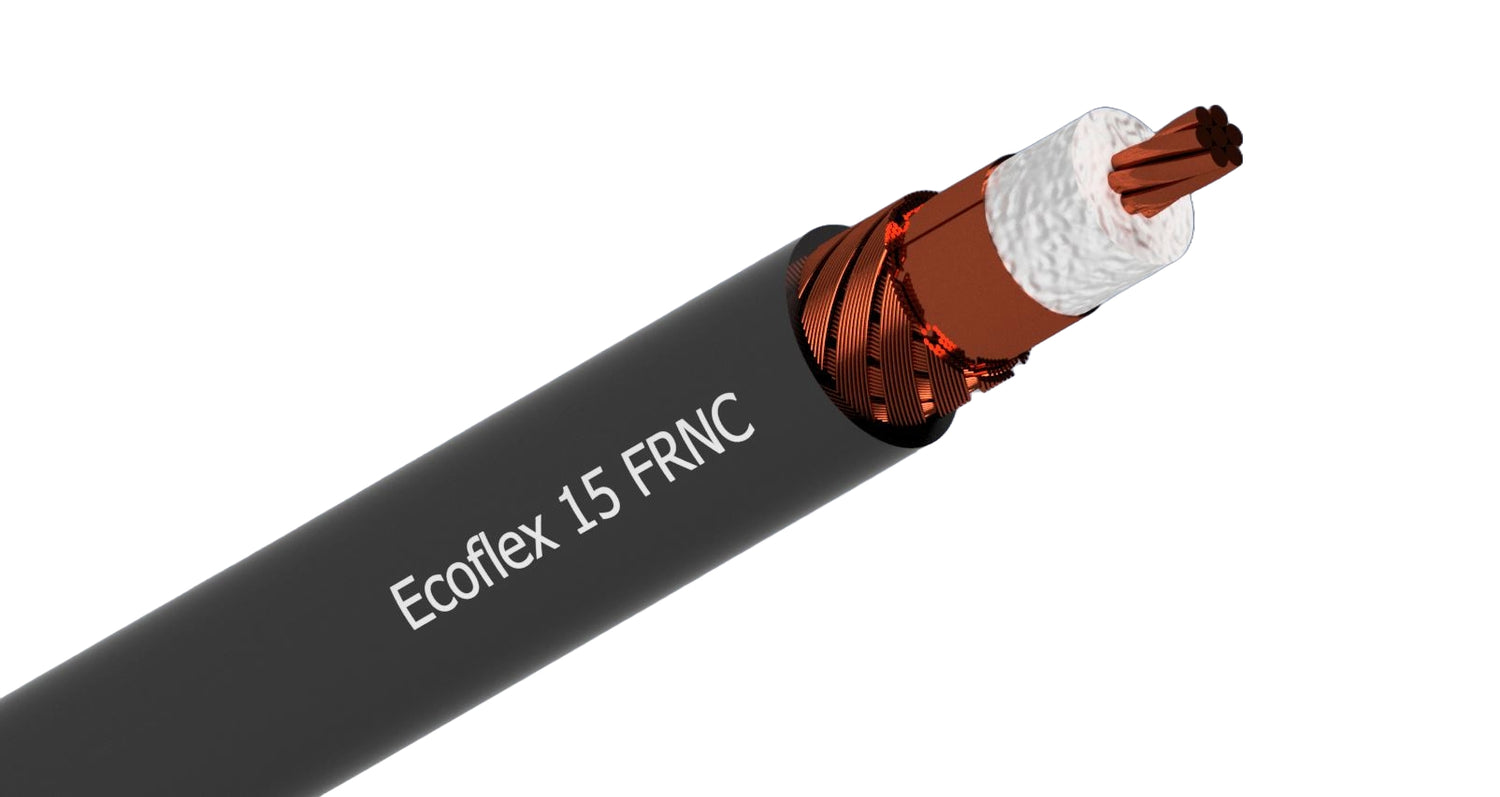

The Ecoflex 15 FRNC from SSB is a high quality, flexible 50 Ohm coaxial cable , designed for frequencies up to 6 GHz . Thanks to advanced manufacturing techniques and the use of a low-loss PE-LLC dielectric with a foam rating of over 70%, this cable offers exceptionally low attenuation values.
The unique construction of Ecoflex 15 FRNC combines the excellent damping properties of rigid 1/2" cables with the high flexibility of cables with braided inner conductors. The high flexibility is achieved by using an oxygen-free copper inner conductor with seven braided bare copper wires.
Key benefits of Ecoflex 15 FRNC
- Excellent Damping : The inner conductors are continuously compressed, calibrated and pre-coated to ensure optimum damping, return loss and stable impedance matching.
- Double shielding : With an overlapping copper foil and an additional shielding of bare copper wires with 75% coverage, the cable offers a high shielding attenuation of > 90 dB at 1 GHz.
- Flame retardant and halogen-free : The jacket made of special thermoplastic copolymer (FRNC: Flame Retardant Non Corrosive) ensures a low fire load, limited smoke emissions and a reduction of toxic and corrosive gases during combustion.
- Easy installation : Solderless connectors for N, UHF and 7-16 DIN can be mounted quickly and without special tools.
Applications
Ecoflex 15 FRNC is ideal for a wide range of RF applications, especially where long distances and critical connections are important and every “dB” counts. This cable is perfect for situations where an extremely flexible, low loss, halogen-free coaxial cable is required, such as in high frequency and microwave environments.
Ecoflex 15 FRNC is the perfect choice for professionals looking for a flexible, low-attenuation and halogen-free coaxial cable. With its advanced features and easy installation, this cable is ideal for a wide range of high-frequency applications where reliability and performance are essential.
Choose Ecoflex 15 FRNC for a reliable and efficient solution for all your RF and microwave needs.
Properties Ecoflex-15 FRNC
- Euro class according to EN 50575 Fca
- Sheath material according to DIN EN 50290-2-27 (HD 624.7)
- Flame retardant according to IEC 60332-1-2
- Manufactured according to DIN EN 45545-2 table 5 R15 HL2
- RoHS Compliant (Directive 2011/65/EC & 2015/863/EU RoHS 3)
- Smoke density according to IEC 61034
- Corrosivity of flue gases according to IEC 60754-2
