Super Star 3900

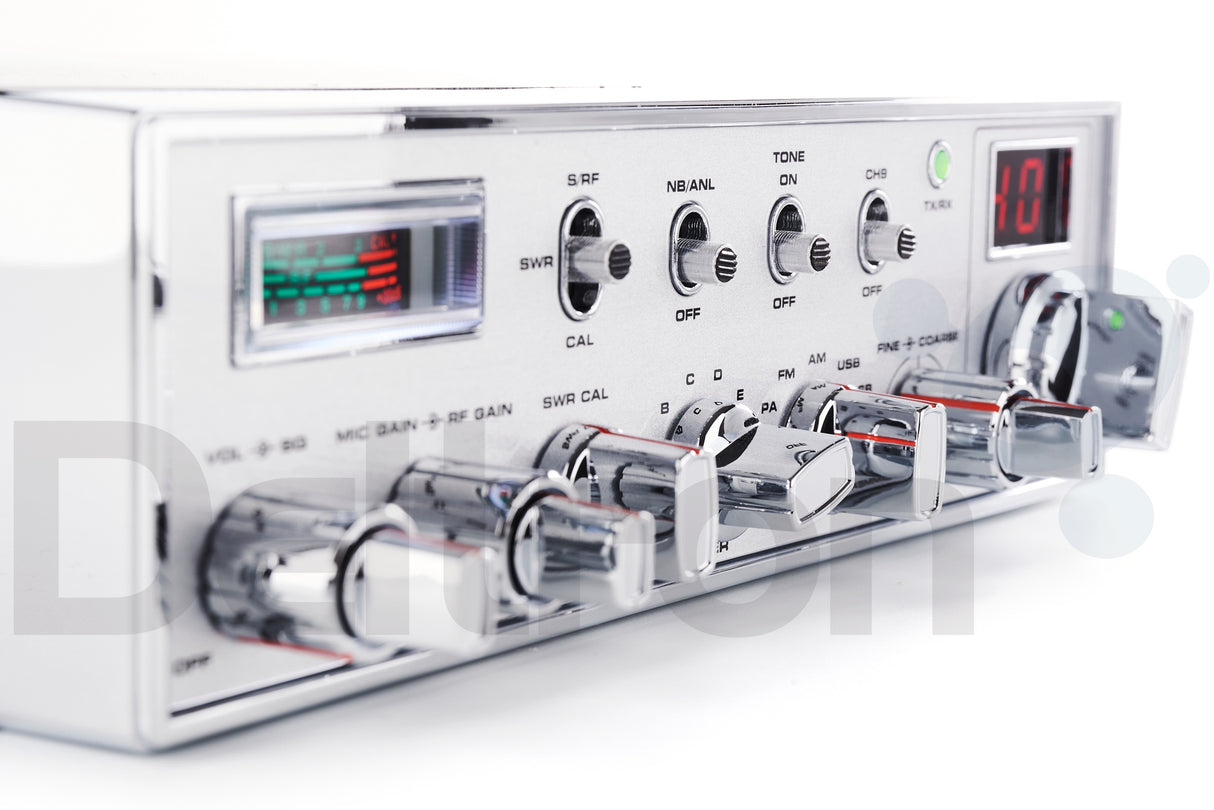

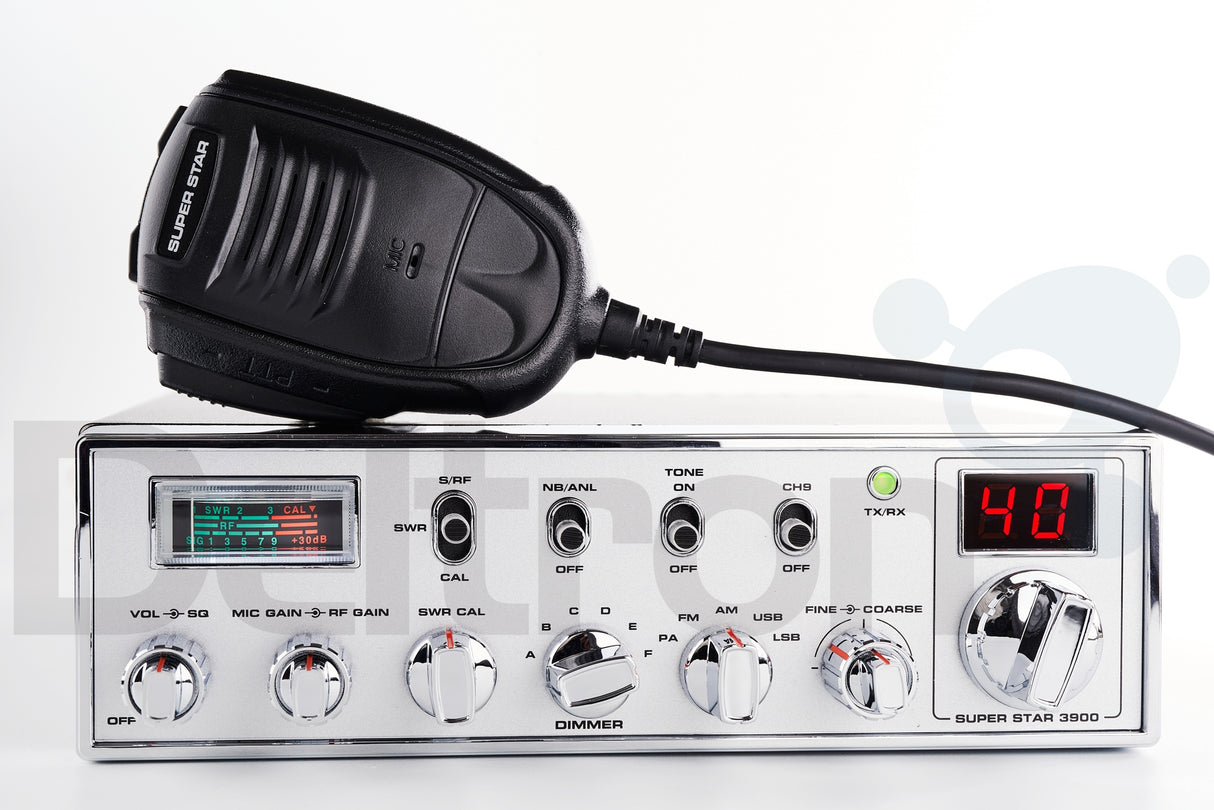

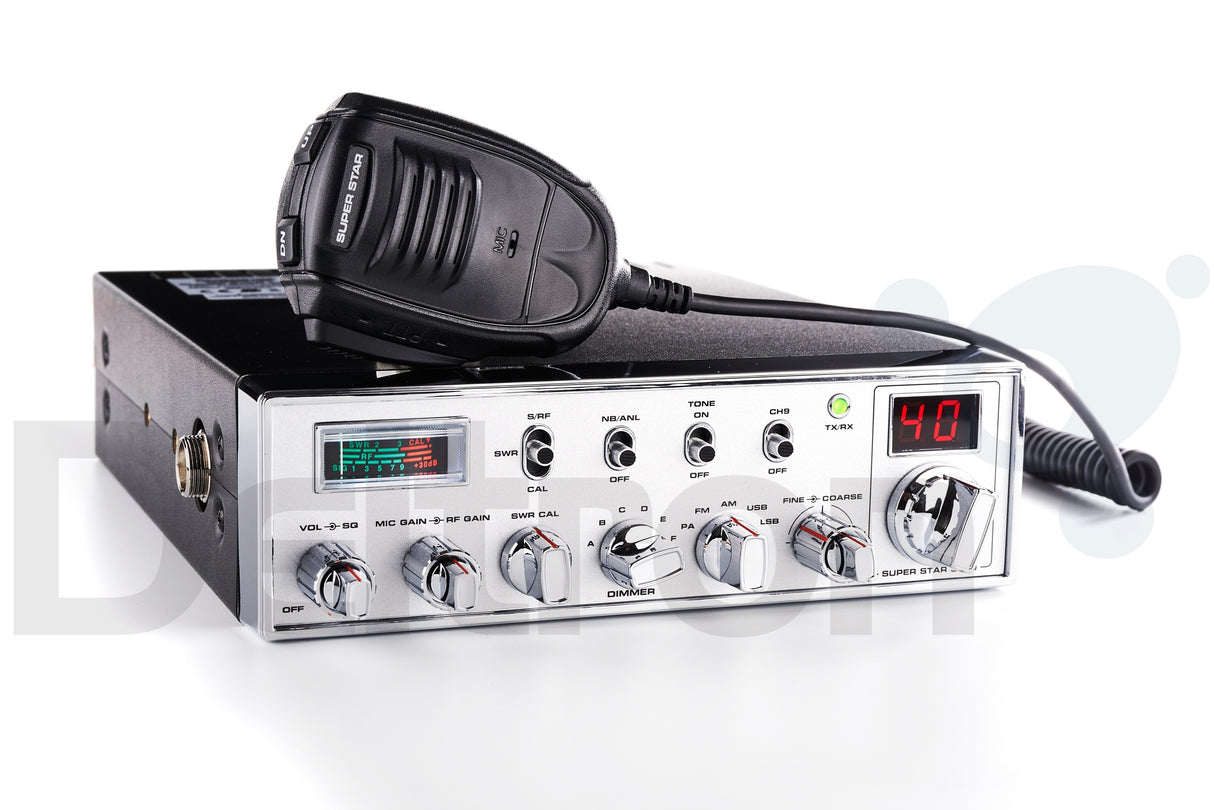

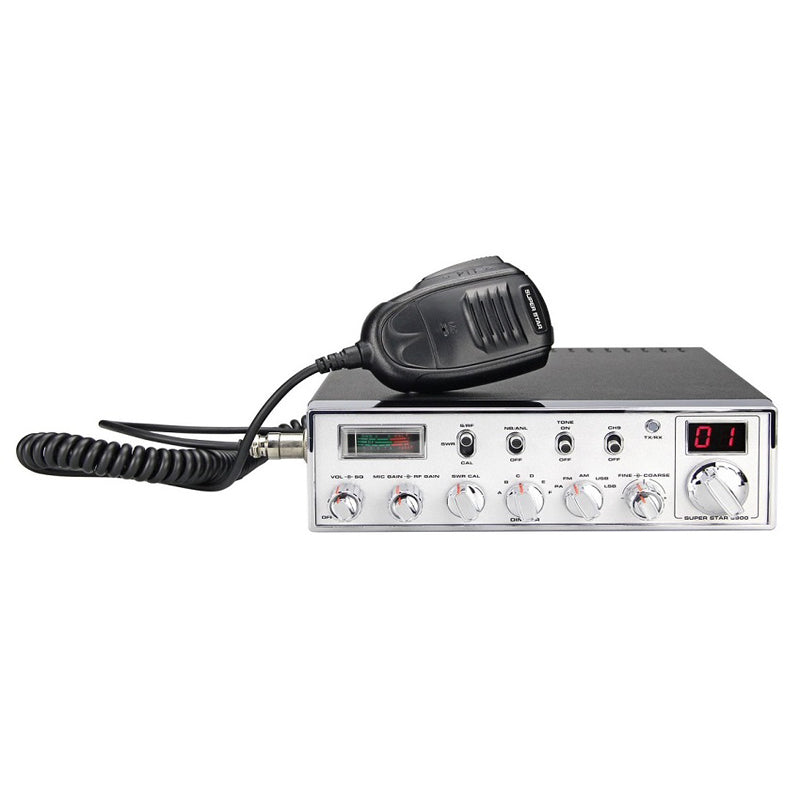

The Super Star 3900 is an "Old Skool" 27MC Transceiver with 40 channels (multi-standard) AM/FM/USB/LSB with a transmission power of 4W (AM/FM) and 12W (SSB) (Export 12 watt AM/FM & 40 watts SSB). The new Super Star 3900 retains the essence of the classic model, recognizable by its iconic design, control buttons, side microphone input, analogue meter, and more.

In 2023, the new Super Star 3900 will be delivered with some improvements, such as: display with function indicator, improvements to the screen lighting, new handheld microphone with channel change buttons (up/down), new board design with improved micro components which translates into a reduction of the total weight: improvements that do not change the essence but ensure that the Super Star 3900 remains stronger than ever as an icon of the CB Band

The Super Star 3900 is designed primarily as a mobile device, but can also be used as a base station connected to an optional DC power supply and an optional antenna.

The Super 3900 is also available as an export version (25.615-28.305 MHz MHz and 12 watt AM/FM 40 watt SSB).

Select the export version for variants

Features:

• CB-27 mobile radio


• Channels: 40 Multi-standard


• Modes: AM/LSB/USB/FM


• Frequencies: 26.565 to 27.99125 Mhz | (Export version: 25.615-28.305 MHz)


• Tx power: 4W (AM/FM) 12W (SSB) | (Export version: 12 watts AM/FM 40 watts SSB)

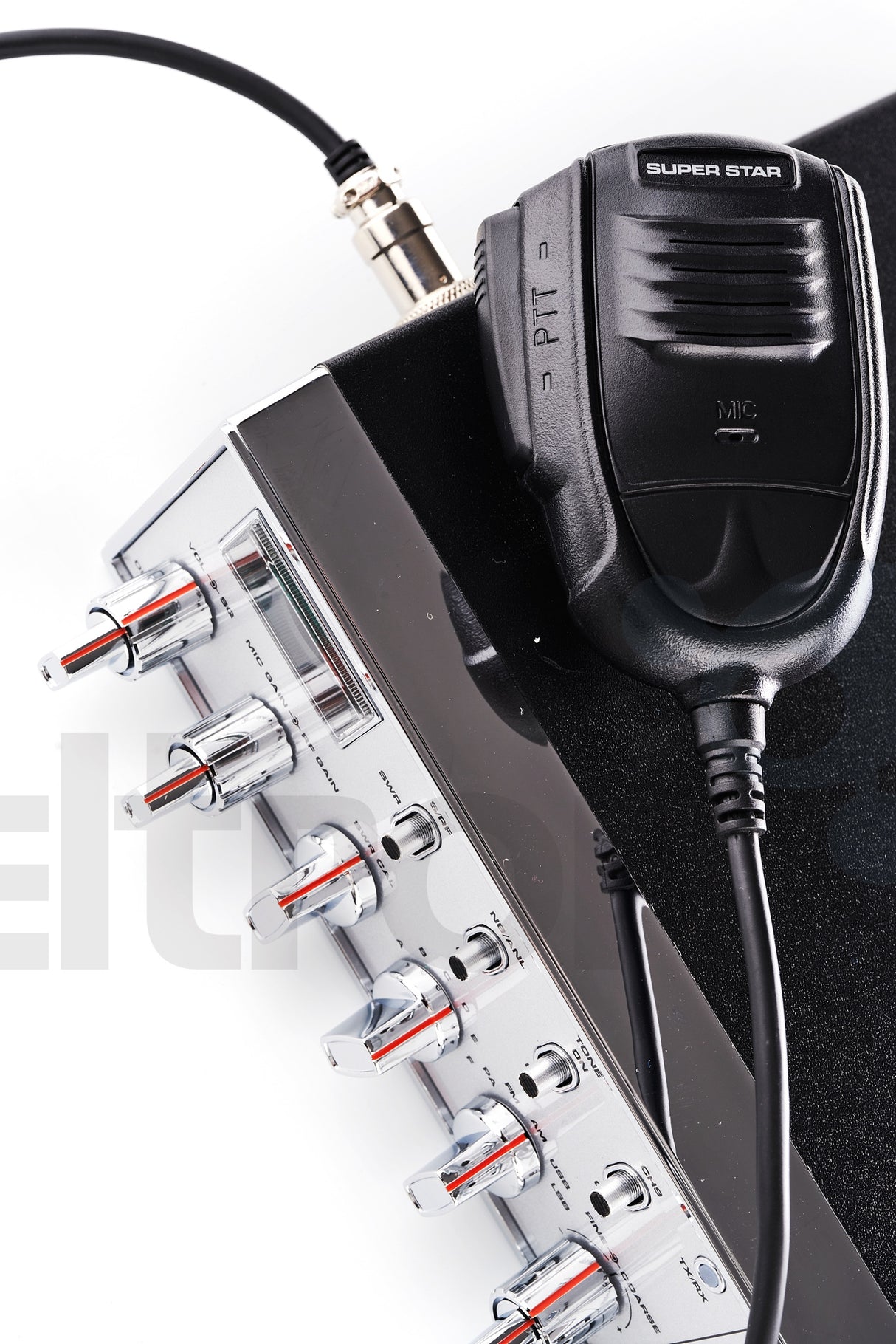

• Handheld microphone with channel change buttons (UP/Down)


• Backlit display with channel indicator and equipment functions menu

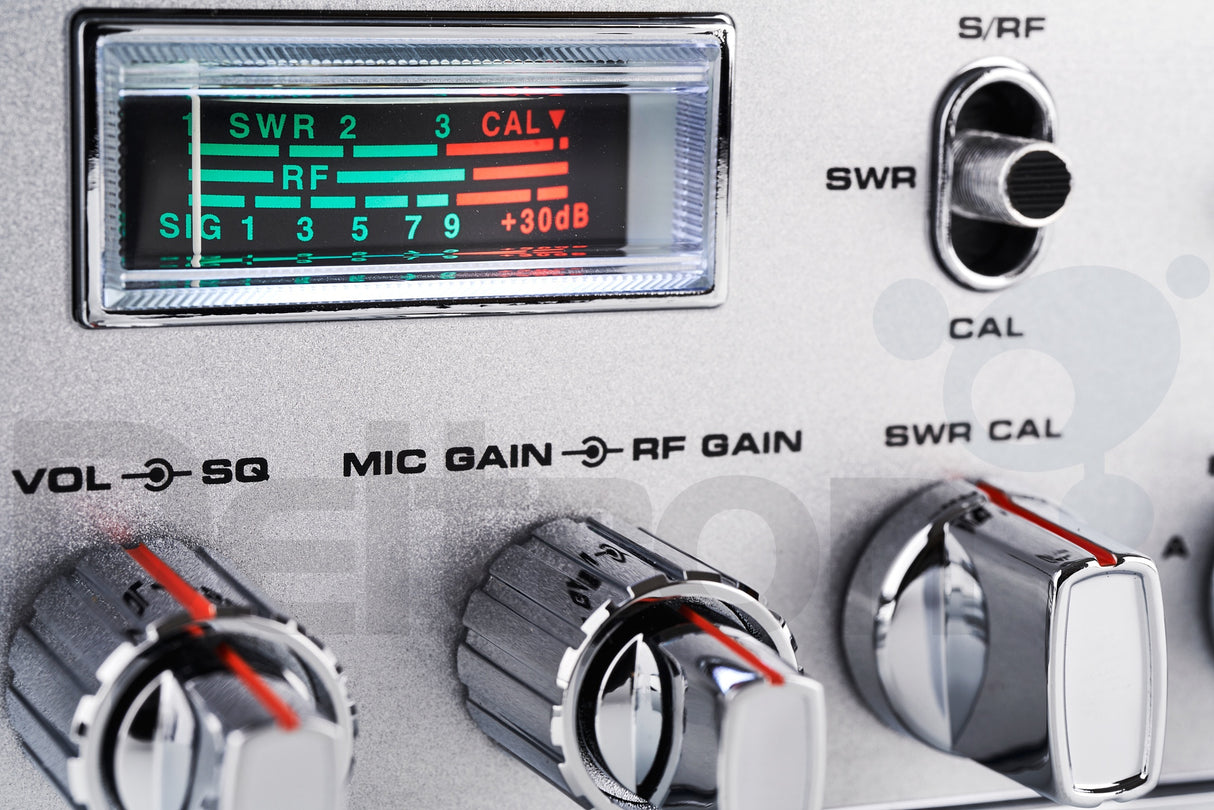

• Standing wave meter (SWR) and power

Functions:

• SWR, PWR, RX RSSI meter


• PC programmable


• SQ, ASQ function


• RF gain adjustment


• Microphone gain adjustment


• Programmable roger beep


• NB/ANL function


• Command notification by beep


• UNTIL function


• HI-CUT function


• Busy channel lockout


• Adjusting the screen illumination


• SWR protection


• Supply voltage protection


• VOX function


• Reception noise reduction


• Transmission noise reduction

Specifications:

• AM/FM/SSB modulator


• Frequency Control: PLL Synthesizer


• Frequency stability: +/- 5 ppm


• Channel spacing 10 KHz


• Operating temperature: -20º to +55 ºC


• Antenna impedance: 50 Ohms

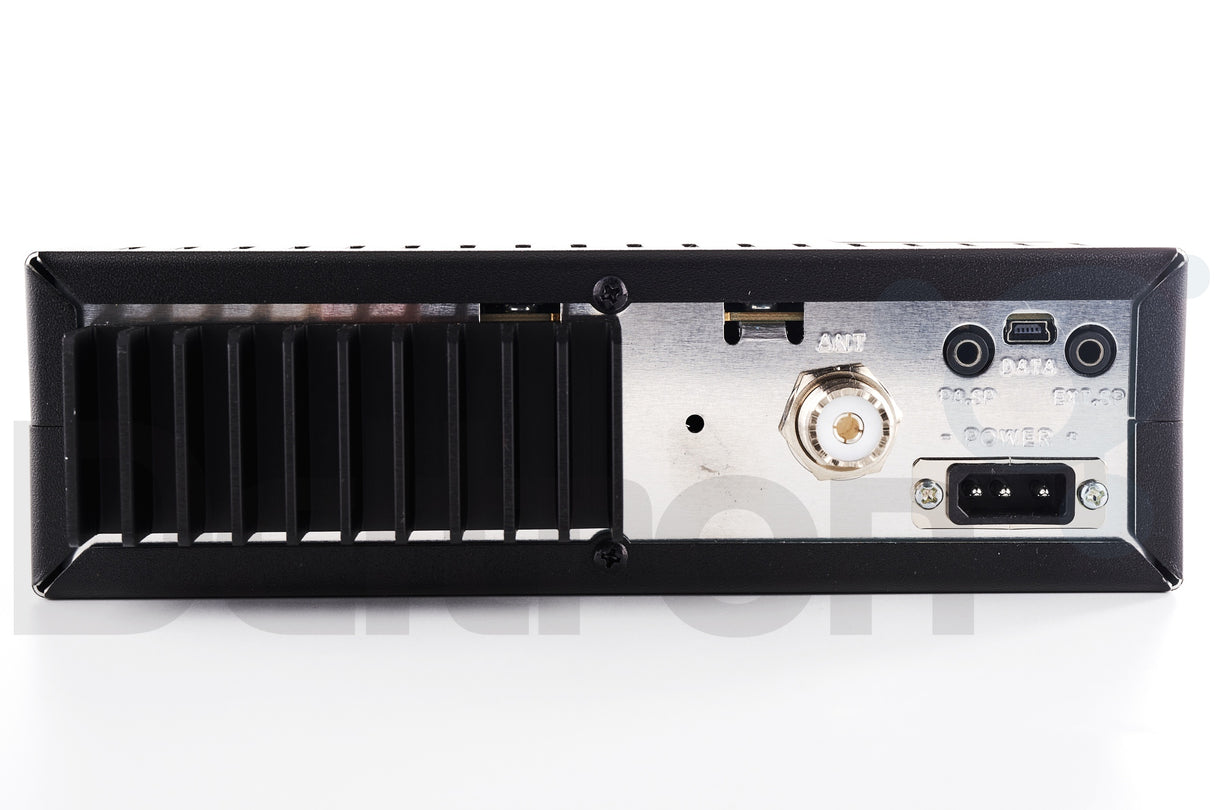

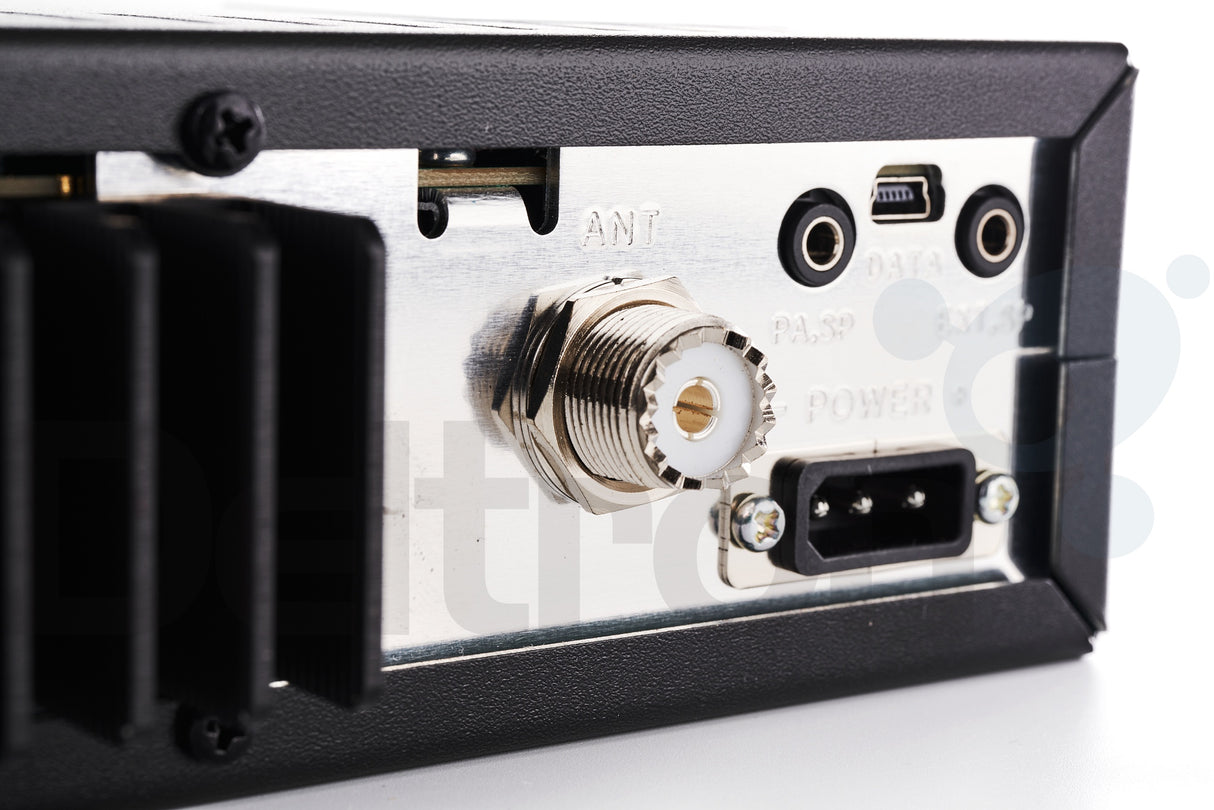

• Antenna connector: UHF, SO 239


• Supply: 13.8V DC


• Consumption: 5 A


• Dimensions: 28.7 cm (L) x 20.0 cm (W) x 6.1 cm (H)


• Weight: 1,500 g

Package:

• 1 x Super Star 3900CB Transceiver


• 1 x Handheld microphone with Up/Down function


• 1 x Mounting bracket with screws


• 1 x Power cable with fuse (Spare fuse (10 A, 250 V))


• 1 x Manual in English
