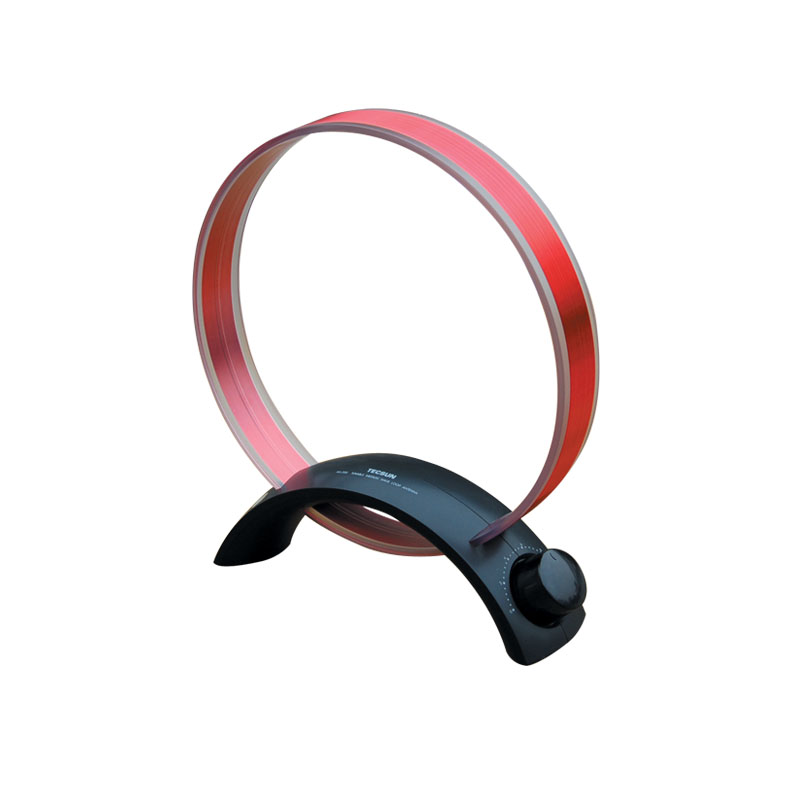

Tecsun AN-200

The Tecsun AN-200 tunable medium wave annular antenna is specially designed for receiving medium wave AM broadcasts. This antenna performs excellently to improve signal reception in places where there is noise or strong shielding.

Installation of the Tecsun AN-200:

1. Connect the ring-shaped medium wave antenna to the audio modulator, car radio or medium wave line-in connection of the radio. If your radio does not have a line-in connection, the AN-200 antenna can be placed near the radio, close to the built-in medium wave antenna.
2. Set the radio to the medium wave band. Then rotate the adjustable knob on the AN-200 antenna to receive the best frequency signal, until the sound from the tuned transmitter is clear and stable.
3. The AN-200 antenna performs best when it is tuned and placed in the correct receiving direction.

Characteristics:

• Easy to install
• Frequency coverage on the medium wave broadcast band: 520KHz - 1710KHz
• No battery or external power required
• Supplied with connection cable (3.5mm stereo)
• Antenna diameter: 228mm (9 inches)
• Antenna thickness: 35mm
• Dimensions: 250 x 253 x 78 mm
