Uniden UBCD-3600XLT NXDN

The Uniden UBCD 3600XLT NXDN is Uniden Bearcat's flagship scanner, offering both analog and digital reception in a compact, handheld scanner. Complete with NXDN support and the latest firmware, this advanced scanner comes with a 4GB MicroSD card to easily store your favorite lists and settings.

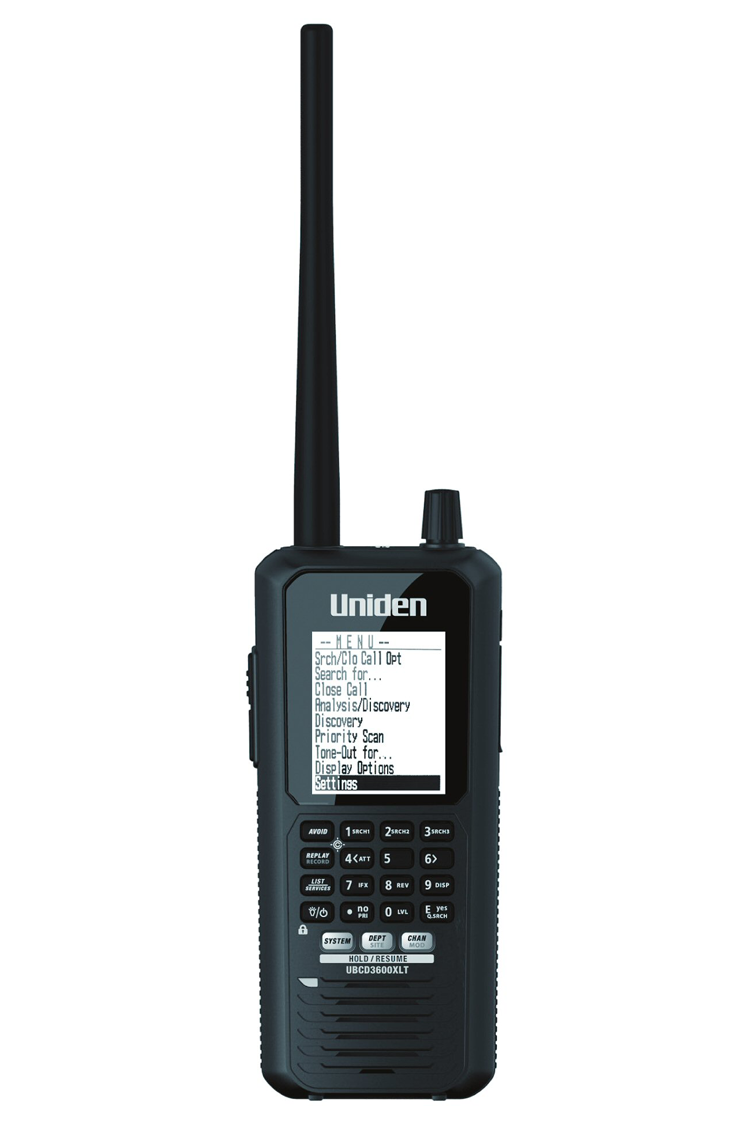

Uniden UBCD 3600XLT NXDN Analog and Digital Handheld Scanner with Latest Firmware

The advantages of the Uniden Bearcat UBCD-3600XLT NXDN:

• 100 Shortcuts - You can scan the favorites lists, Systems, and Departments by assigning them to shortcuts.

• 10 Custom Searches - Allows you to program up to 10 custom search ranges.

• 3 Search Keys - You can assign 3 of the number keys to initiate a Custom Search, Tone-Out Search or Close Call Search.

• 4GB microSD card (supplied 1GB to 32GB supported) - For storing favorites lists, profiles, all your settings, discovery sessions and recording sessions.

• Analog and Digital AGC - Helps automatically balance the volume between different radio systems.

• Antenna connection: SMA

• Antenna impedance: 50 Ohm

• Audio Recording - Capture transmissions for later playback.

• Audio Output: 0.8 Watts at 24 Ohms

• Broadcast Screen - Allows the scanner to ignore hits in search and Close Call modes. You can also program up to 10 custom frequency ranges that the scanner will ignore.

• Close Call © RF Capture Technology - Allows you to set the scanner to detect and provide information about the surrounding radio transmissions.
• Close Call Do-not-Disturb controls Close Call activity between channel reception so active channels are not interrupted.

• Configurable Band Defaults - Allows you to specify the step (5, 6.25, 7.5, 8.33, 10, 12.5,15, 20, 25, 50, or 100 kHz) and modulation (AM, FM, NFM, WFM, or FMB) for 31 different bands.

• Conventional Discovery - Searches frequency ranges to find unknown frequencies and automatically records audio from and logs new channels for later reference and identification.

• Control Channel Scan Only - With Motorola trunking frequencies, you do not need to program voice channel frequencies.

• Custom alerts - You can program your scanner to alert you when you hit a channel or Unit ID, a close call, an ID is transmitted with a
• Emergency Alert , or a Tone-out hit. For each alert in the scanner, you can choose from 9 different tone patterns, 15 volume settings, 7 colors and 2 flash patterns.

• Data naming - Allows you to name any list including favorites, system, site, department , channel, ID, location and custom search, using up to 64 characters.
• Duplicate input alert - Alerts you if you attempt to enter a duplicate name or frequency already stored in the scanner.
• Favorites Scan - Allows you to organize your systems into Favorites Lists. The scanner will scan multiple favorites lists and the entire database at the same time.
• Fire Tone-Out standby / tone search - This allows you to set the scanner to alert you when a two-tone sequential page is emitted. You can set up to 32 Tone-Outs. The scanner will also search for and display unknown tones.
• Frequency range : 25 - 1300MHz
• Frequency steps : 5/6.25/7.5/8.33/10/12.5/15/20/25/50/100 kHz
• Memory: Favorites list can be stored on the supplied SD card. The Uniden UBCD 3600XLT supports SD cards up to 32GB. Up to 250 skip frequencies programmed, Up to 10 scan frequency ranges can be programmed by the user, Up to 85 storage per second in scan.
• Weight : 348.7 grams
• Individual channel volume offset - Allows you to adjust the volume offset for each channel.
• Built-in Charger - Allows you to charge the batteries while they are in the scanner.
• Instant replay - Plays up to 240 seconds (4 minutes) of the most recent broadcasts.
• Intermediate frequency exchange - Changes the IF used for a selected channel/frequency to help prevent image and other mixer-product interference on a frequency.
• Location based scanning - Connect to a GPS receiver (not included) for accurate system selection and continued reselection when traveling. The scanner can automatically avoid and not avoid Systems and Departments based on your current location as determined by an external GPS device.
• Modulation types: AM, FM, NFM, WFM
• Multilevel display and keyboard light - Makes the screen and keyboard easy to see in low light with three light levels.
• Multisite Trunking - This allows you to program the scanner to share trunking system IDs across multiple locations without duplicating IDs.
• Multicolor LED Alert - The alarm LED with 7 colors, blue, red, magenta, green, cyan, yellow or white, can be used with your Custom Alerts.
• NXDN Upgrade
• PC Programming - Use the Sentinel software to manage your scanners Profiles, Favorites Lists, and firmware updates.
• Priority / Priority w/ NS Scan - Priority channels let you keep track of activity on your most important channels while monitoring other channels for transmissions.
• Priority ID Scan - Allows you to set priority to talk group IDs.
• Range control - This allows you to set how far from your current location the scanner will search for channels in favorite lists. Location precision for departments and sites allows you to define a location and range using rectangles instead of just a single circle.
• Quick Search - Allows you to enter a frequency and start searching.
• Startup Configuration - You can program each of your Favorites Lists with a Startup Key (0-9), so that when you turn on the scanner and press the number key, only those Favorites Lists assigned to the key will be enabled for scanning.
• System/channel number tagging - Number tags allow you to quickly navigate to a specific favorites list, System or Channel.
• Temporary or permanent blocking - Temporary or permanent blocking of channels / systems / sites / departments / channels.
• Trunk Tracker V Operation - Scans APCO 25 Phase 1 and Phase 2, DMR, Motorola, EDACS, EDACS ProVoice and LTR trunked systems, as well as conventional analogue and P25 digital transmitters.
• Trunking discovery - Monitors system traffic on a trunked radio system to find unknown IDs and automatically records audio from and logs new channels for later identification.
• Adjustable scan/search delay/resume - Set a delay of up to 30 seconds or a forced resume of up to 10 seconds for each channel or search.
• Power supply: internal batteries or via USB (5V DC, charging function).
• Working modes : APCO25 phase 1 and phase 2, DMR, Motorola, EDACS, EDACS Pro Voice, LTR, P25 analog and digital.
• Working temperature : -10 to +70 degrees.
• Search Blocking - You can temporarily avoid up to 250 frequencies and permanently avoid 250 frequencies in a Search or Close Call mode.
• Search speed :
  • 80 steps/sec in Search mode (max) excluding the 5 kHz steps.
  • 250 steps/sec. in Search mode (max) – (Turbo Search) for 5 kHz steps.
• Search with scan operation - This allows you to vary Custom Search during the scan operation, among other things.

Optimize your scanning experience with the Uniden UBCD-3600XLT with NXDN, a top-of-the-line handheld scanner that delivers reliable performance no matter where you are.
