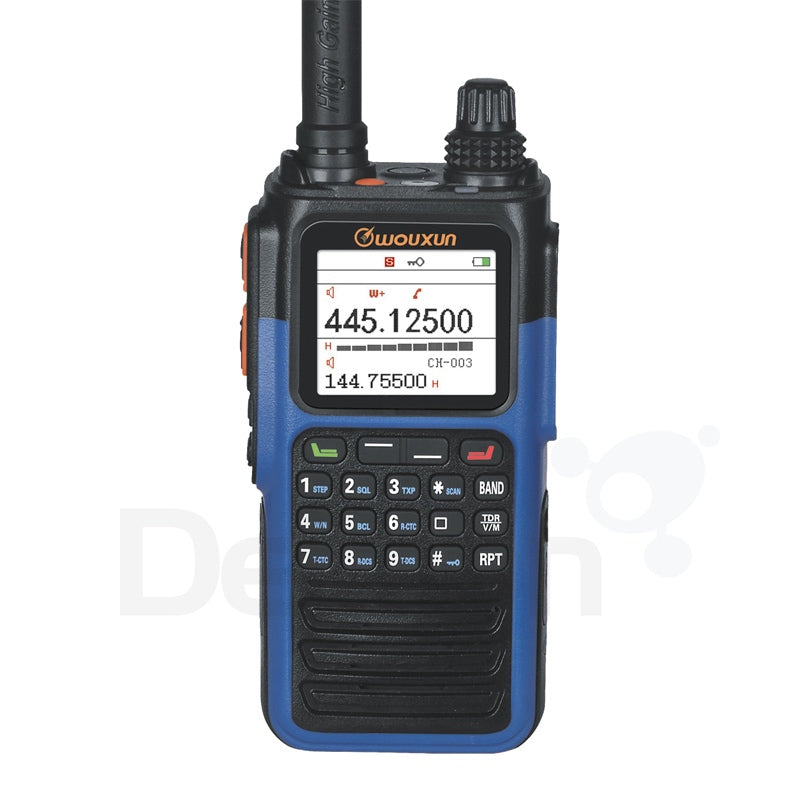

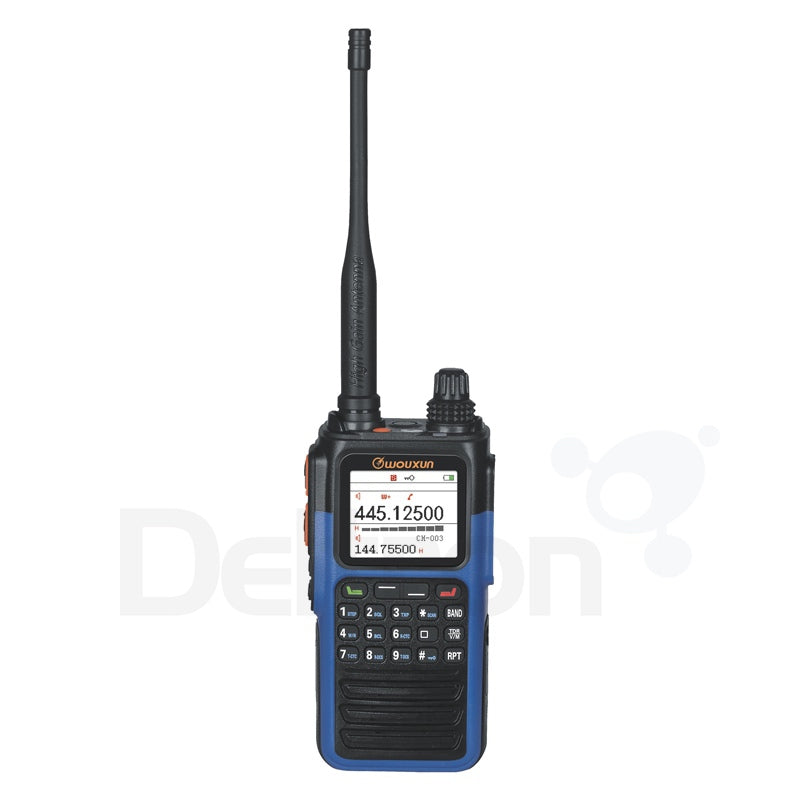

Wouxun KG-Q336

The Wouxun KG-Q336 Tri-band radio is, together with the Wouxun KG-Q332, one of Wouxun's new top models. The model of the WOUXUN KG-Q336 Tri-band radio that we supply is supplied with the closed amateur bands 144-146 & 430-440 MHz.

The Wouxun KG-Q336 can, after modification, be used for TX on 66 - 88MHz, 136 - 174MHz and 400 - 480MHz and broadband RX on 76 - 108MHz, 108 - 136MHz (Airband AM), 136 - 174MHz, 222 - 225MHz, 320 - 400MHz, 400-480MHz and 714-999MHz.

Wouxon's newest two radios are packed with features, including crossband repeat, vox, scrambler, priority channel, compander and more. The KG-Q332 in 6/2 and 70 cm and the KG-Q336 in 4/2 and 70 cm have dual reception and come with high-contrast screens and backlighting. The menu has all the useful features of battery saving mode, voice guide, priority channel, scan modes, CTCSS/DCS and an FM broadcast receiver.

The free downloadable PC programming software allows you to easily program your frequencies and adjust all settings to your own preferences. NB! Program cable is not included

All this comes in the new and modern radio housing from Wouxun, including a heavy duty 3000 mAh battery pack, USB-C charging function (charging cable not included), table charging function, clear multi-color display, flashlight and IP65 waterproof index.

**The version we sell is the approved European version (​​​​​​​144-146 & 430-440 MHz) with CE (RED)**

Features Wouxun KG-Q336

• Frequency range supplied model: ​​​​​​​144-146 & 430-440 MHz


• Frequency range after modification:​​​​​​​​​​​​​​ TX/RX: 66-88 MHz, 136-174 MHz, 400-480 MHz, RX: 76-108 MHz, 108-136 MHz (AM ), 136-174 MHz (FM), 222-225 MHz (FM), 320-400 MHz (FM), 400-480 MHz (FM), 714-999 MHz (FM).


• Frequency step: 2.5 kHz / 5 kHz / 6.25 kHz / 8.33 kHz / 10 kHz / 12.5 kHz / 25 kHz / 50 kHz / 100 kHz /


• Channels: 999


• Wide and narrow bandwidth selection


• Operating temperature: -20℃ to +40℃


• Display: large color display


• Emergency (SOS) function


• Flashlight


• Priority channel scan


• High/low power selection


• Voice guide: English


• Battery capacity: Li-ion 3000 mAh (7.4V)


• Waterproof index: IP65


• Accessory connector: 2-Pin Kenwood (K)


• Busy channel lockout


• CTCSS / DCS: RX and TX, programmable by computer


• Scan group


• Call Code


• Scrambler


• Compander


• AM Mode SW


• Battery Save Mode


• Transmit Timeout Timer


• Transmit Timeout Alert


• Multi Key Options


• Repeater PTT


• Time Zone


• Two menu system


• FM Radio


• PF options (programmable keys): PF1, PF2, PF3 modes


• PTT ID transmit modes

Transmitter

• Power output (Watts): UHF: 4/2/1 Watts / VHF: 5/2/1 Watts


• Work mode: F2D / F3E


• Antenna impedance: 50 Ohm


• Frequency stability: ±2.5 PPM


• Type of modulation: Wide: 16K F3E / Narrow: 11K F3E


• Max. frequency deviation: Wide: ±5 kHz / Narrow: ≤±2.5 kHz


• Audio response: 300-3000 Hz +1 to -3 dB


• Adjacent channel selectivity: Wide: ≤70 dB / Narrow: ≤60 dB


• Spurious: Wide: ≤60 dB / Narrow: ≤60 dB


• Modulation distortion: ≤5%

Receiver

• Audio distortion: ≤5%


• Audio power output: ≤500mW


• Audio response: 300-3000 Hz +1 to -3 dB


• Adjacent channel selection: Wide: ≤70 dB / Narrow: ≤60 dB


• Inter modulation: Wide: ≤65 dB / Narrow: ≤60 dB


• Signal to noise ratio: Wide: ≥45 dB / Narrow: ≥40 dB


• Spurious radiation: Wide: ≥70 dB / Narrow: ≥70 dB


• Sensitivity: UHF / VHF: -119.0dBm SINAD 13 dB


• Sensitivity 108 - 136 MHz (AM): 106.0 dbm SINAD 13 dB


• Sensitivity 136 - 174 MHz: 119.0 dbm SINAD 13 dB


• Sensitivity 216 - 260 MHz: 116.0 dbm SINAD 13 dB


• Sensitivity 400 - 480 MHz: 119.0 dbm SINAD 13 dB


• Sensitivity 714 - 999 MHz: 96.0 dbm SINAD 12 dB


• Dimensions: L 60 mm x H133 mm without antenna / 295 mm including ANO-057 antenna


• Width: 36mm without belt clip


• Weight: 326 grams including ANO-057 antenna


• Antenna connector: SMA-Male


• USB-C charging

Package contents

• 1x Wouxun KG-Q336 (144-146 & 430-440 MHz)


• 1x Wouxun BLO-032 3000mAh 7.4Volt Li-ion battery


• 1x Wouxun CHA-035A - CHA-035B desktop charger with AC adapter


• 1x Wouxun ANO-057 180mm 66-88MHz antenna


• 1x Wouxun ANO-056 145mm 136-174MHz/400-520MHz antenna


• 1x Wouxun belt clip


• 1x Wouxun carrying strap


• 1x Manual in English
