Wouxun KG-R36

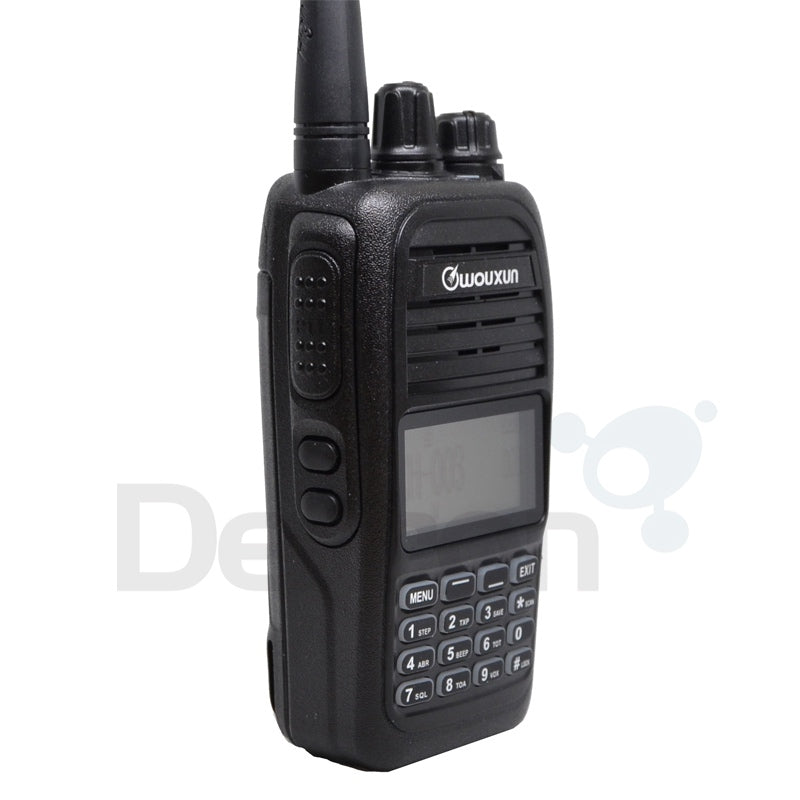

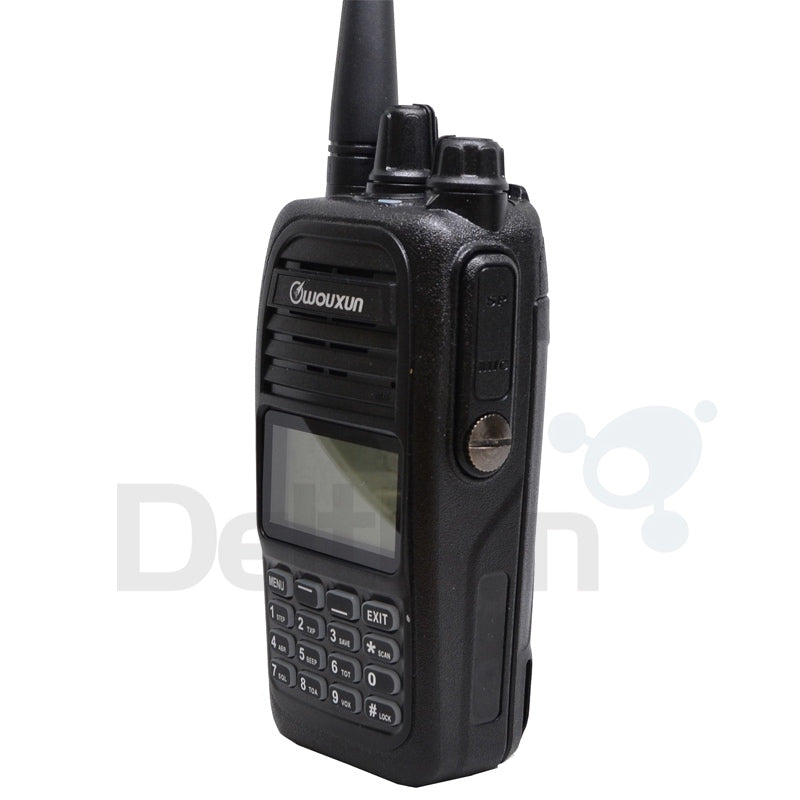

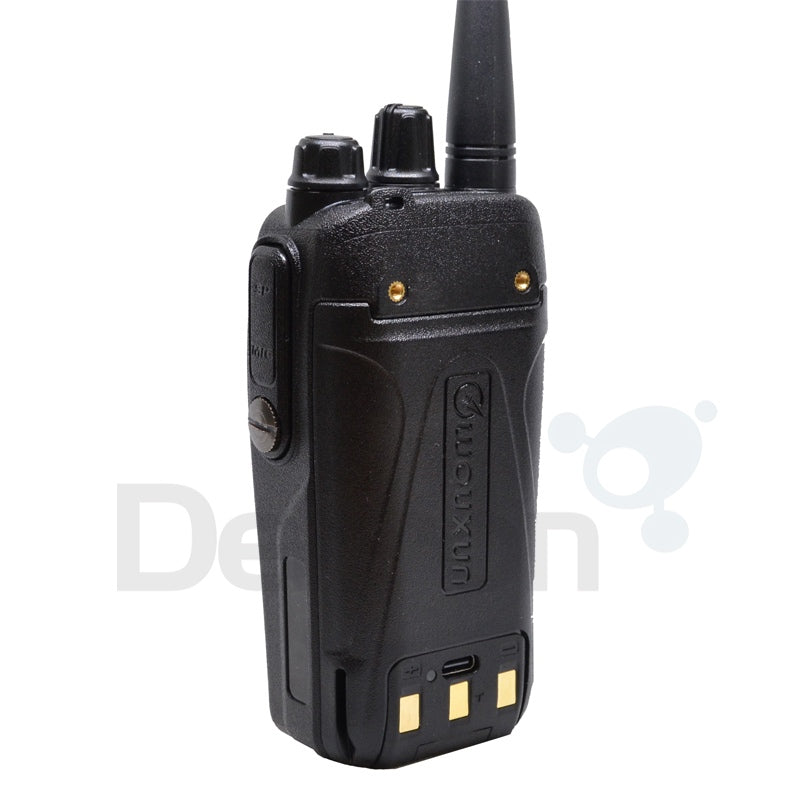

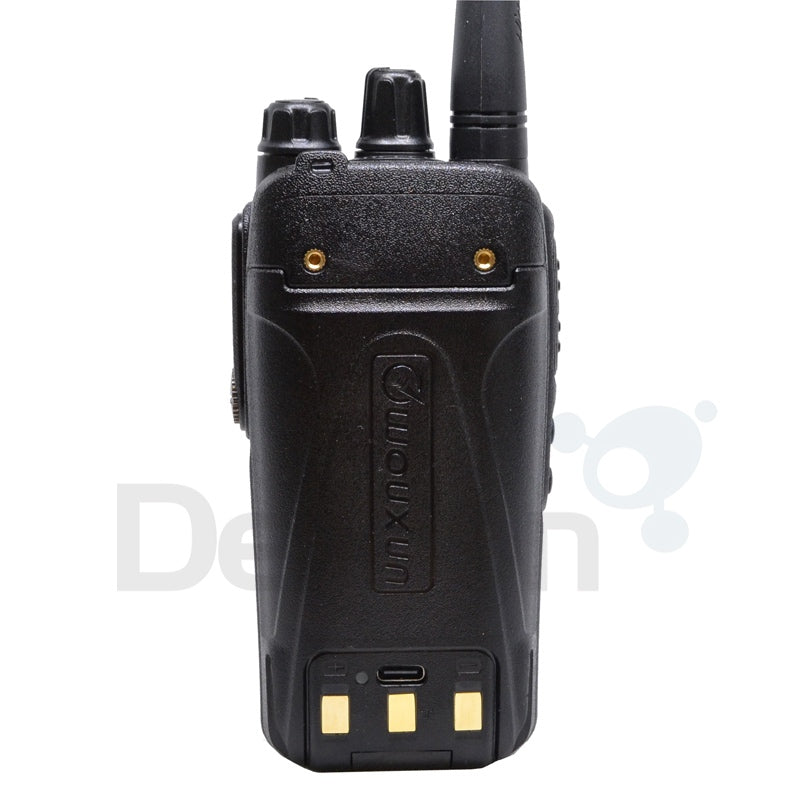

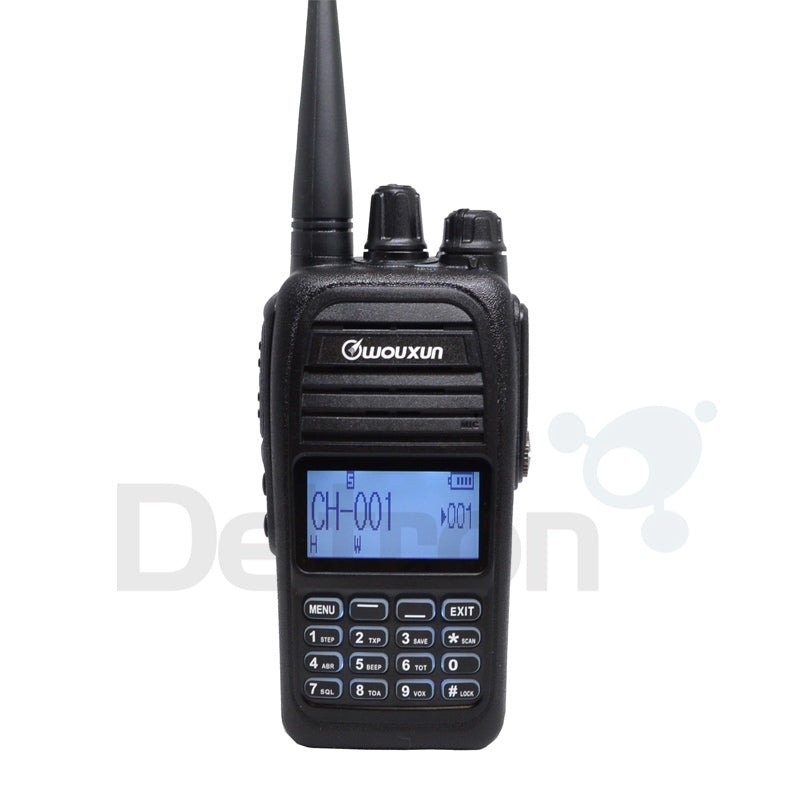

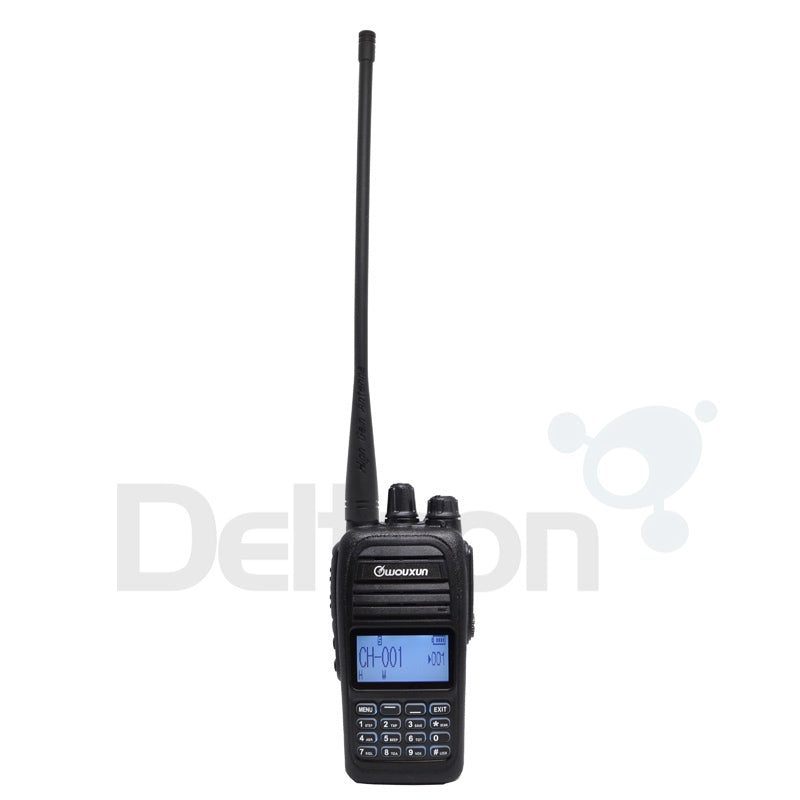

Wouxun KG-R36 a premium handheld VHF airband transceiver designed for professionals and aviation band enthusiasts.

Features Wouxun KG-R36

• Wide Frequency Range: Covers the entire VHF air band, keeping you connected across a variety of aviation frequencies.
• High Output Power: Provides strong signal transmission and ensures clear communication even in challenging environments.
• Dual Watch Function: Monitor two frequencies at the same time so you never miss important communications.
• Clear Audio Quality: Advanced noise cancellation technology delivers crystal clear audio and improves communication clarity.
• Durable Design: Built to withstand tough conditions, the KG-R36 is both water and dust resistant (IP65).
• Long Battery Life: Equipped with a high-capacity battery that you can charge with USB-C or a desktop charger.
• The Wouxun KG-R36 stands out for its reliable performance and user-friendly features, making it the perfect choice for aviation communications. Whether you're coordinating ground operations or navigating through the air, this transceiver will keep you in clear, continuous contact.

Specifications

• Frequency range: 118.000-136.975MHz
• Display: LCD screen
• Battery capacity: Li-ion 2600mAh (7.4V)
• Accessory connector: 2-pin Kenwood connector (K)
• Noise blanker function: Yes
• Waterproof index: IP65
• Vox function: Yes, 5 levels
• Scan function: Yes
• Frequency step: 8.33 kHz / 25 kHz /
• Channels: 400 channels
• Operating temperature: -20℃ to +40℃
• Supply voltage: 6.0 to 9.5 Volts
• Power consumption: Power off: 300 μA / Battery saver on: 70 mA / Squelch on: 90 mA / Receive: 300 mA / Transmit 1.5 Watts: 0.9 A
• Antenna connector: SMA K
• Dimensions: L 133 x H 62 x W 37 mm
• Weight: 340 grams

Transmitter - transmitter

• Output power (Watt): Load capacity: 4 Watt / 1 Watt
• Modulation limit: 70 to 100%
• Unwanted emissions: >more than 46dB
• Frequency stability: ±0.4kHz

Receiver - receiver

• Sensitivity: 0.25μV (12dB SINAD)
• Audio output power: More than 350mW at 10% distortion in RX 90mA (in standby) and 8Ω load
• Receiving system: Superheterodyne
• Intermediate frequency: 1st 46.35MHz, 2nd 450kHz
