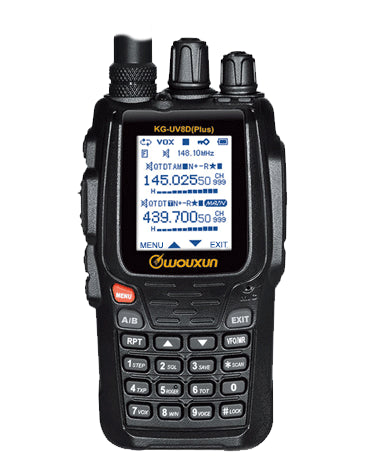

Wouxun KG-UV8D Plus

The Wouxun KG-UV8D Plus V1.05 is a Dual Band radio with an extra large color display. The Wouxun KG-UV8D is full duplex with 2 independent VFOs, has a built-in repeater function between VHF/UHF or UHF/VHF. The Wouxun KG-UV8D also has the option for the 6.26kHz raster. The Wouxun KG-UV8D has a speaker/microphone connection of the Kenwood type and comes with a 2600 mAh Li-ion battery pack.

Specifications

• Frequency range: 144-146 and 430-440MHz (after mod 136-174 and 400-479.995)


• Frequency grid: 5, 6.25, 10, 12.5, 25, 50, 100 kHz


• Transmission power switchable 1 Watt/ 5 Watt VHF 1 Watt/ 4 Watt UHF


• Tone code 104 DCS and 50 CTCSS tones


• Selection of relays (+ / - Shift) from 0 to 69.95 MHz


• Simultaneous display of both frequency bands: UHF/VHF or VHF/VHF or UHF/UHF


• TX/RX on different frequencies: Transmit: TX on 2m and receive on 70cm but also vice versa


• 999 memory channels


• Vox function


• DTMF Giver (eg for Echolink) now integrated as standard


• Speech of all entries in English or Chinese, ideal if you cannot see the radio (can be switched off)


• Stopwatch


• Large color display


• Bandwidth switchable between 12.5 and 25 kHz


• Indication of frequency or channel mode


• Channel and frequency indication or alpha numerical indication of the channels possible


• Scan function


• Good background lighting of the screen and keyboard


• Roger-Beep function at start or end (can be switched off)


• FM radio reception 88-108 MHz


• All functions and memory can also be set via PC, the optional PC programming kit is available for this purpose


• 1000Hz/1450Hz/1750/Hz/2100Hz calling tone


• Aluminum body

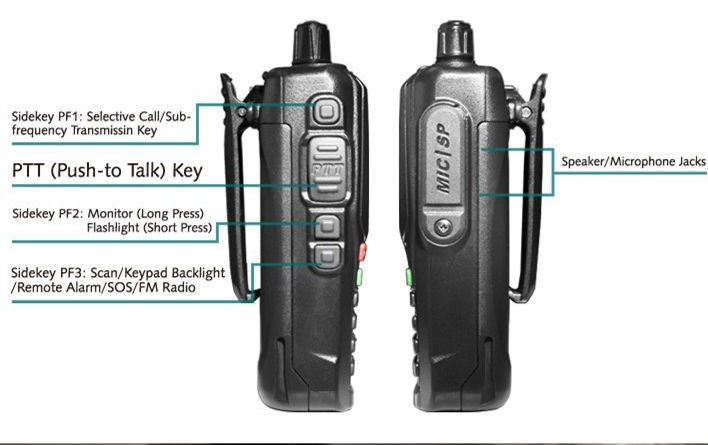

• Speaker/mic connection 2 pin Kenwood standard


• Table charger with automatic


• Battery pack 7.4 V 2600 mAh Lithium


• Antenna connection: SMA


• Dimensions 12.4 x 6.1 x 3.4 cm

Package contents

• 1 x Wouxun KG-UV8D radio


• 1 x 2600mAh Li-ion

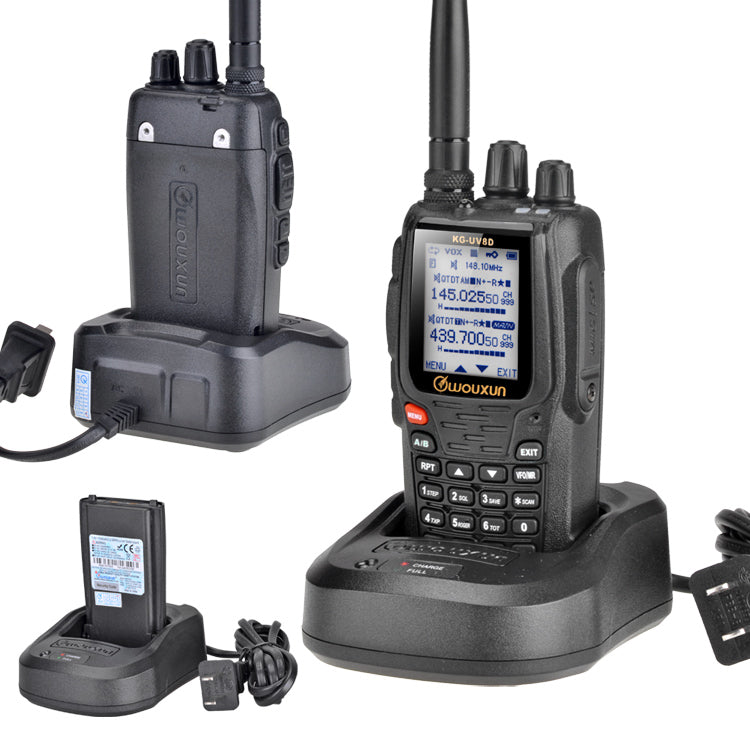

• 1 x Table charger


• 1 x Antenna


• 1 x Belt Clip


• 1 x Manual
