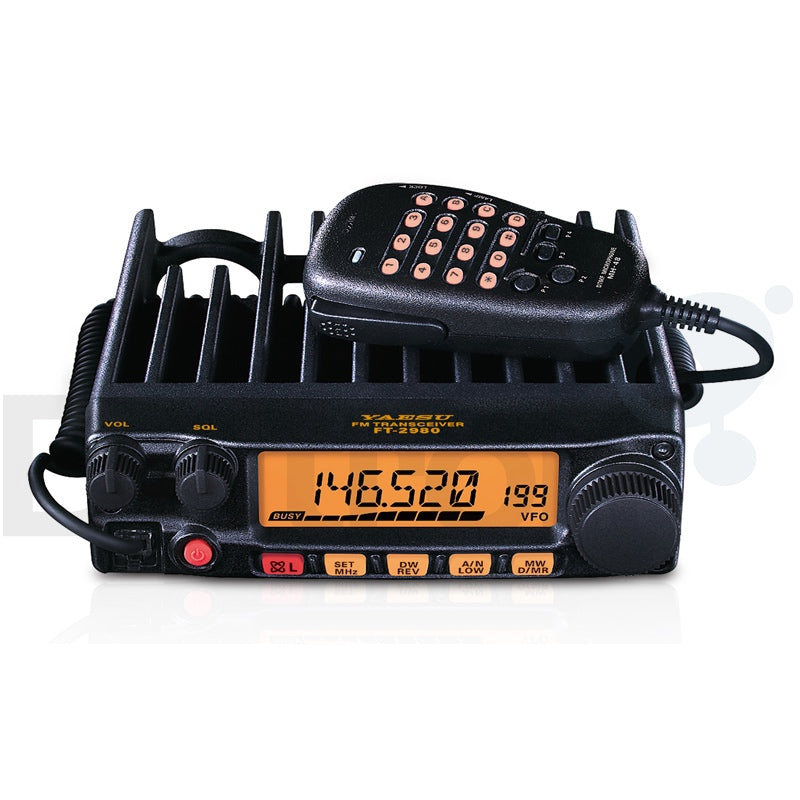

Yaesu FT-2980E

The new and improved Yaesu FT-2980 comes with 80 Watts of high power and does not require a cooling fan. The Yaesu FT-2980E has a large and clearly readable display and WIRES™ Internet Linking access at the touch of a button.

CTCSS and DCS encode/decode built-in

For easy repeater access or silent monitoring of busy channels, both CTCSS and DCS encoder/decoder circuits (Digital Code Squelch) are built-in. CTCSS and DCS configuration data can be stored independently in each memory channel. A “Split Tone” mode also allows use on systems where CTCSS and DCS are used separately on the repeater uplink/downlink.

Extensive memory system

The FT-2980E offers a total of 221 memory channels, including 200 “regular” memories, ten pairs of bandlimit memories, and a “Home” channel that you can recall directly from a frequently used repeater or simplex frequency. Memories can store repeater shift information, CTCSS/DCS data, output power level, scan status (“Skip”) and alphanumeric labels.

Alphanumeric channel display

Memory channels can be displayed with the channel frequency or a personalized alphanumeric label, for easy channel identification. Up to six letters, characters, or numbers can be used to label channels.

Receiver performance

The front of the FT-2980E's receiver features Yaesu's renowned Advanced Track Tuning RF input filtering, which provides excellent protection against intermodulation distortion.

Large LCD screen

The large 6-digit backlit LCD screen on the FT-2980R provides excellent visibility

Crisp and clear sound with internal speaker

The FT-2980E features 3W BIG watts of loud audio with its own internal speaker for noisy environments.

80 Watts output power

80 Watts of solid RF power without the need for a cooling fan! Four selectable output levels are available: 80/30/10/5 Watts. The power selection can be memorized, allowing you to save energy while using strong local repeaters.

Features Yaesu FT-2980E

• Frequency range:136 - 174 MHz
• Frequency step: 5 kHz / 10 kHz / 12.5 kHz / 15 kHz / 20 kHz / 25 kHz / 50 kHz / 100 kHz /
• Number of channels: 200
• Backlit display
• CTCSS/DCS
• DTMF
• Emission mode: F2D / F3E
• Wide and narrow bandwidth selection
• Operating temperature: -20℃ to +60℃
• Frequency stability: better than ±10 PPM
• Operating voltage: 13.8 volts (negative ground) ±15%
• Power consumption: RX: less than 0.7 A, less than 0.3 A (suppressed) / TX: 15 A (80W) / 9 A (30W) / 5 A (10W) / 4 A (5W)
• Standard repeater offset: ±600 kHz
• Auto Power Off (APO), The “Auto Power Off” (APO) feature turns the radio off completely after a user-defined period of PTT or key/button inactivity.
• Busy Channel Lock-Out (BCLO), the BCLO function prevents the radio's transmitter from activating when a signal strong enough to break the “noise” squelch is present.
• MIC gain, factory programmed microphone gain that should be sufficient for the included MH-48 A6J microphone.
• PAGER (EPCS), this feature allows you to call only certain stations, using a pager code that combines two CTCSS tones.
• Timeout Timer (TOT)
• Dimensions: L 185 mm x H 50 mm x W 160 mm
• Weight: 1900 grams
• Antenna connection: UHF (PL) Female (SO-239)
• Microphone connection: RJ12
• External speaker connection

Characteristics of transmitter - transmitter

• Power (Watt): 5/10/30/80 Watt
• Unwanted emissions: ≤ 60 dB
• Modulation type: F2D / F3E: Variable reactance modulation
• Maximum deviation: Wide: ±5 kHz / Narrow: ±2.5 kHz
• Antenna impedance: 50 Ω
• Microphone impedance: 2k Ω

Features Receiver - receiver

• Sensitivity: Better than 0.4 μV for 12 dB SINAD
• Intermediate frequency 1st: 21.70 MHz
• Intermediate frequency 2nd: 450 kHz
• Reception system: double conversion superheterodyne
• Audio output power: 3 W (4 Ω, THD10%, 13.8 V)
• Selectivity (-6 dB/-60 dB) NFM/AM:: Wide: 12 / 28 kHz / Narrow: 9 / 22 kHz

Package contents

• 1x Yaesu FT2890E transceiver
• 1x DC power cable
• 1x Yaesu MH-48A6JA DTMF microphone
• 1x Yaesu MMB-83 mounting bracket
• 1x Spare fuse 25A
• 1x Manual in English
