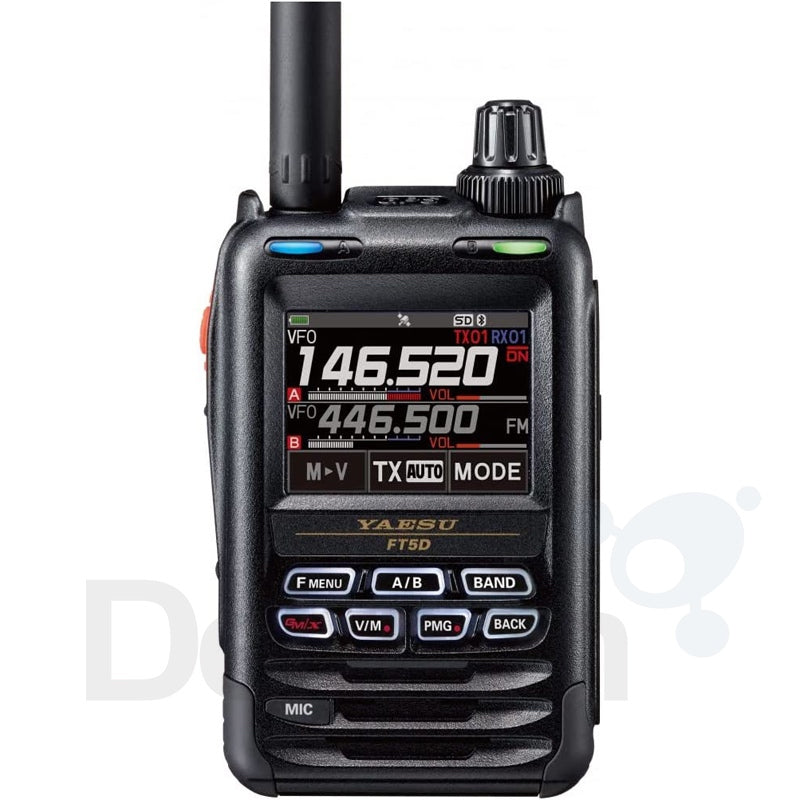

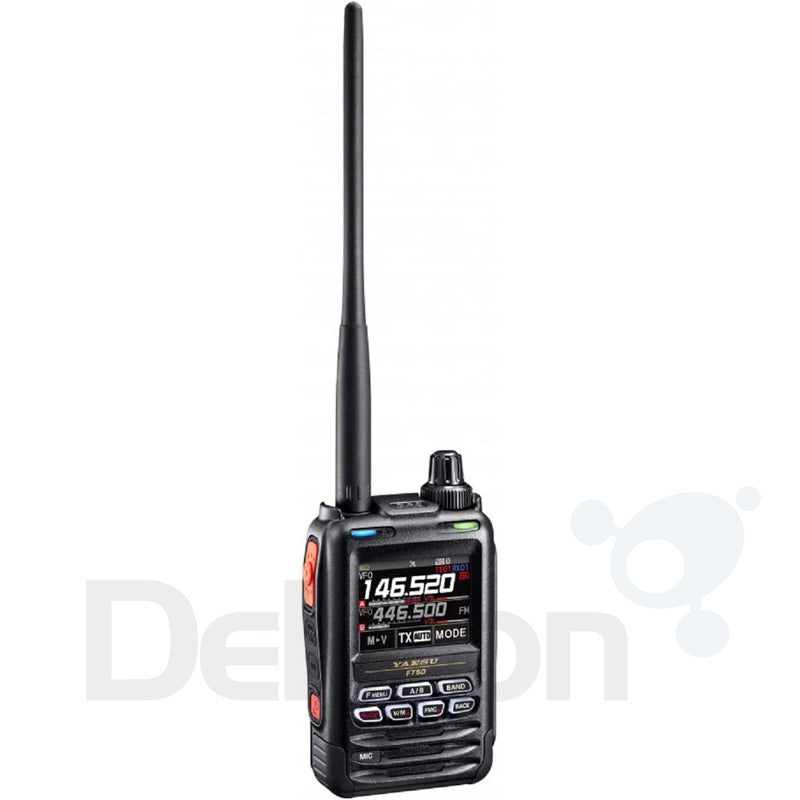

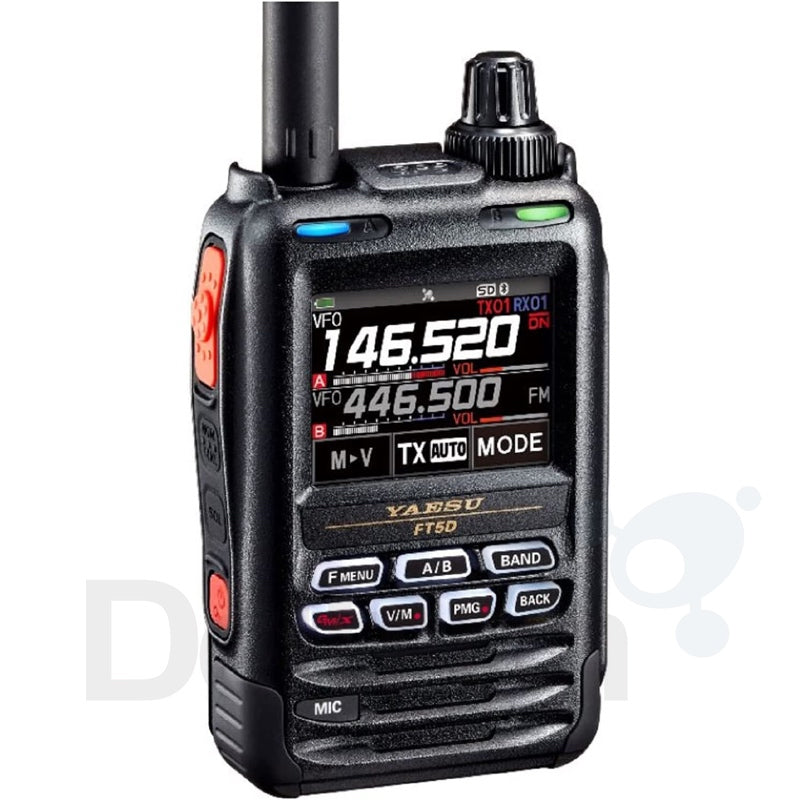

Yaesu FT-5DE

The Yaesu FT-5DE is a fully featured C4FM radio with superior operation and new advanced features. Even in a compact 62 x 101 x 34mm housing, the FT-5DE delivers reliable 5Watt RF output power and achieves a loud 1Watt audio power tuned for quality audio. Real Dual Band Operations (V+V, U+U, V+U, U+V) are available with two independent receivers. Large individual LED indicators for A-band and B-band instantly display the status and communication modes (C4FM or analog) of each band. The new FT5-DE simultaneously supports C4FM digital (C4FM/C4FM standby).

Robust construction

With rubber protection on the corner of the main body, the FT5-DE has a robust and shock-resistant construction. The water resistance is IPx7. The comfortable size and shape of the completely flat back provide excellent grip for the radio operator.

High resolution screen

A high-resolution display highlights the operating band frequency. The color of the working band frequency can be selected from white, blue or red. Three (3) touch keys and seven (7) control keys below the display provide intuitive operation.

Touch & Go controls

The new Touch & Go control is useful for immediately starting communication on a frequently used frequency. By pressing and holding the "PMG" key, the frequency of the current playback is recorded in the primary memory group. If you press the “PMG” key after registration, the reception status of the registered frequencies will be displayed as bars in a graph (activity monitor). By simply touching the displayed bar, the user can instantly recall that frequency.

Band range

Band Scope feature monitors in real time up to 79 displayed channels centered around the current VFO frequency. The center frequency can be tuned using the rotary knob or by touching and moving the frequency of a displayed channel bar.

C4FM digital clear voice

The C4FM digital communication features that are already popular in the market, such as: Automatic Mode Select (AMS), Digital Group ID (DG-ID) control and Smart Navigation function are available with the new FT5-DE.

WiRES-X

The Yaesu FT-5DE also supports the WiRES-X Portable Digital Node function. A portable digital node can be easily set up with the new FT-5DE, an internet-connected laptop PC and the optional SCU-39 cable kit.

Quick release holster

The new Quick Release Holster (SHB-26) is included in the FT-5DE package as an included accessory that allows one-touch attachment and detachment of the transceiver while the holster is worn on a belt.

Features Yaesu FT-5DE

• Frequency range: 144-146 MHz and 430-440 MHz
• Frequency steps: 5 kHz / 6.25 kHz / 8.33 kHz / 9 kHz / 10 kHz / 12.5 kHz / 15 kHz / 20 kHz / 25 kHz / 50 kHz / 100 kHz /
• 900 memory channels
• 99 quick search memory channels
• 11 home channels
• 50 pairs of PMS memory channels
• 57 VHF maritime radio channels
• 89 worldwide broadcasts
• Wide and narrow bandwidth selection
• Operating temperature: -20℃ to +60℃
• Frequency stability: ±2.5 PPM
• Supply voltage (nominal): Negative ground, SBR-14LI: 7.2 V DC / negative ground, FNB-101LI: 7.4 V DC / negative ground, EXT DC Jack: 10.5-16 V DC
• Supply voltage (operating): Negative ground, Li-ion Battery: 5.5-8.4V DC / Negative ground, EXT DC Jack: 4-16V DC / Negative ground, EXT DC for charging: 10.5-16V DC / Negative ground, FBA- 39: 3.6-4.5 V DC
• Power consumption: Mono band Reception: 180 mA / Dual band Reception: 220 mA /
• Mono band Reception, Standby: 110 mA / Dual band Reception, Standby: 145 mA / Mono band Reception, Standby, Saver on 'Save Ratio 1:10: 74 mA / Dual-band Reception, Standby, Saver on 'Save Ratio 1: 10: 74 mA / GPS on: +15 mA /
• Digital on: +3 Ma / AM,FM Radio: 125 mA / Auto Power Off: 600 μA / 144 MHz, 5 watts, 7.4 V: 1.6 A / 430 MHz, 5 watts, 7.4 V: 1 .9 A
• LCD display
• VOX function
• DTMF
• Battery capacity: Li-ion 2200 mAh (7.2 V)
• Accessory connector: 1-pin Yeasu connector (Y)
• Emission mode: F1D / F2D / F3E / F7W
• Bluetooth: Version: 4.2 / Class: 2
• Waterproof index: IPx7
• MIC amplification at 9 levels
• VOX function
• Recording function: The received audio from other stations or the transmitted audio can be recorded, and the voice data can be saved as audio file to the microSD card (not included).
• VFO Band skip function
• Memory Auto Grouping (MAG): The memory auto grouping (MAG) function allows memory channels to be automatically categorized
• Broadband reception: wide range reception range from 0.5-999.99 MHz (A
• Band) / 108-580 MHz (B-Band) Band range
• Integrated 66-channel GPS receiver
• AF Dual simultaneous AM/FM function
• Data communication: 1200/9600bps APR data communication
• Snapshot function: the captured images are displayed in color and can be sent to other C4FM digital transceivers
• MicroSD card slot: The radio accepts microSD cards up to 32 GB for storage of GPS logger data, voice data, memory backup and other useful information
• Antenna connection: SMA
• Rugged case with full construction that protects the front and LCD screen with silicone rubber and rubber protection on the bottom and sides of the main case
• Dimensions: L 34 mm x H 100 mm x W 62 mm
• Weight: 282 grams

Transmitter

• Output power (Watt)
• Li-ion battery 13.8 Volt: 0.3/1.0/2.5/5.0 Watt / FBA-39: 0.3/0.9 Watt
• Spurious Emission: TX Power Layer 1, Layer 2: ≤ 50 dB / TX Power Layer 3, HI: ≤ 60 dB
• Modulation type: F1D / F2D / F3E: variable reactance modulation / F7W: 4FSK (C4FM)
• Antenna impedance: 50 Ohm

Receiver

• Sensitivity 0.52-30 MHz: 3 µV typ for 10 dB SINAD (AM) / A-Band only
• Sensitivity 30-54 MHz: 0.35 µV typ for 12 dB SINAD (NFM) / A-Band only
• Sensitivity 54-76 MHz: 1 µV typ for 12 dB SINAD (NFM) / A-Band only
• Sensitivity 76-108 MHz: 1.5 µV typ for 12 dB SINAD (WFM) / A-Band only
• Sensitivity 108-137 MHz: 1.5 μV type for 10 dB SINAD (AM)
• Sensitivity 137-140 MHz: 0.2 μV typ for 12 dB SINAD (NFM)
• Sensitivity 140-150 MHz: 0.16 μV typ for 12 dB SINAD (NFM)
• Sensitivity 150-174 MHz: 0.2 μV type for 12 dB SINAD (NFM)
• Sensitivity 174-222 MHz: 1.0 µV type for 12 dB SINAD (NFM)
• Sensitivity 222-225 MHz: 0.5 μV typ for 12 dB SINAD (NFM)
• Sensitivity 300-350 MHz: 0.5 μV typ for 12 dB SINAD (NFM)
• Sensitivity 350-400 MHz: 0.2 μV typ for 12 dB SINAD (NFM)
• Sensitivity 400-470 MHz: 0.18 μV type for 12 dB SINAD (NFM)
• Sensitivity 470-580 MHz: 1.5 μV type for 12 dB SINAD (NFM)
• Sensitivity 580-800 MHz: 3.0 µV typ for 12 dB SINAD (NFM) / A-Band only
• Sensitivity 800-999 MHz: 1.5 µV typ for 12 dB SINAD (NFM) / A-Band only
• Digital mode: 0.19 μV type for BER 1%
• Center frequency 1st: A band: 58.05 MHz / B band: 57.15 MHz
• Center frequency 2nd: A-Band: 450 kHz / B-Band: 450 kHz
• Reception system AM, NFM: Superheterodyne with double conversion
• AM, FM radio reception system: Direct conversion
• Audio output power (internal speaker): 1000 mW (8 Ω, THD10%, 7.4 V)
• Audio output power (external speaker): 500 mW (8 Ω, THD10%, 7.4 V)
• Selectivity (-6 dB/-60 dB): NFM / AM: 12 kHz / 35 kHz

Package contents

• 1x Yaesu FT-5DE C4FM radio
• 1x Yaesu SBR-14LI Lithium-Ion battery 7.2Volt 2200mAh
• 1x Yaesu SAD-25 battery charger
• 1x Yaesu antenna
• 1x Yaesu SHB-26BK quick release holster
• 1x Yaesu SHB-13 belt clip
• 1x Yaesu USB cable
• 1x Manual in English
