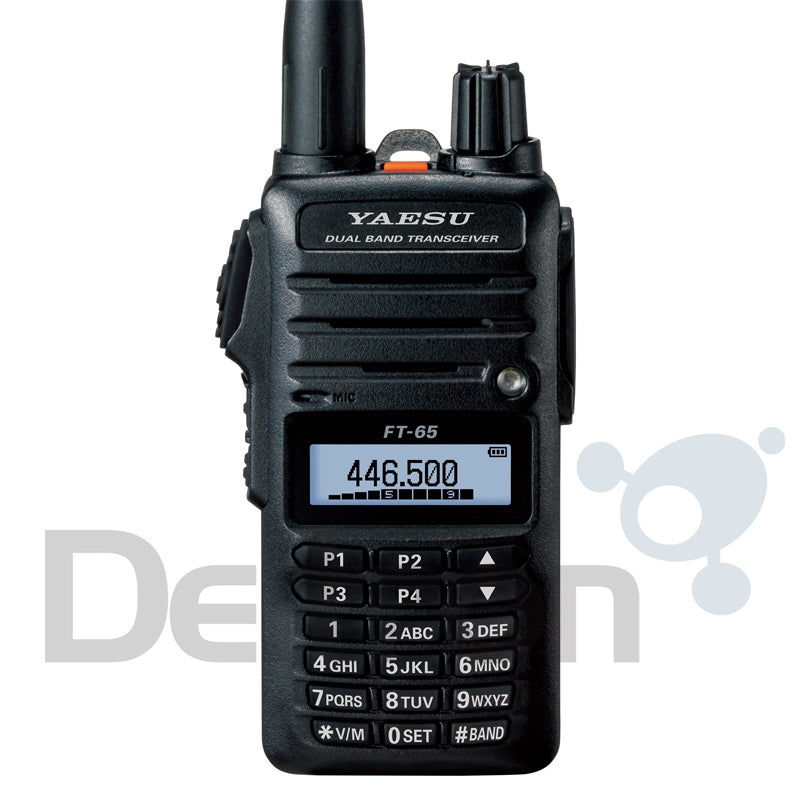

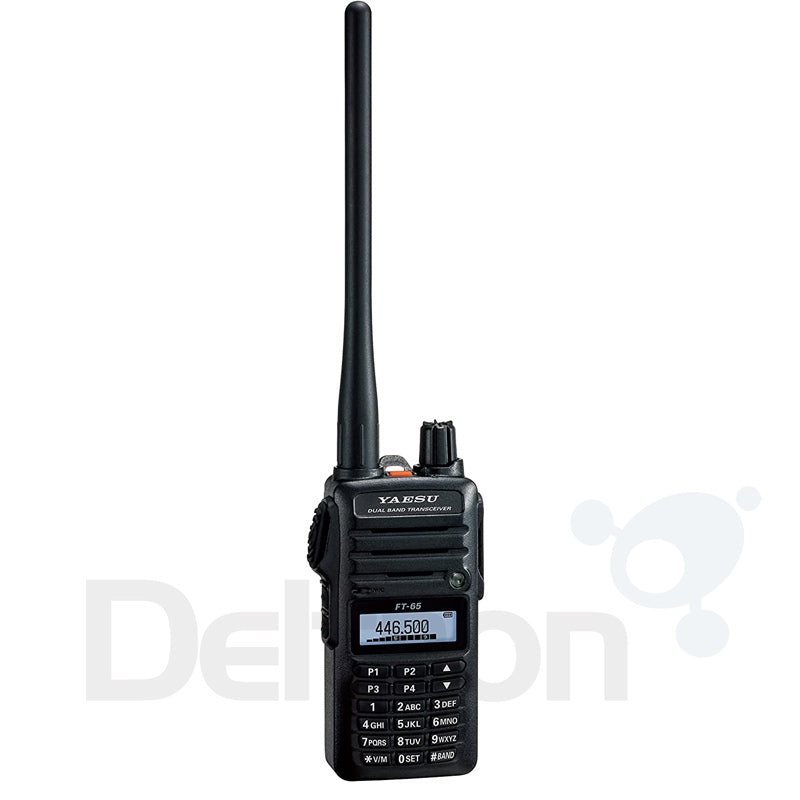

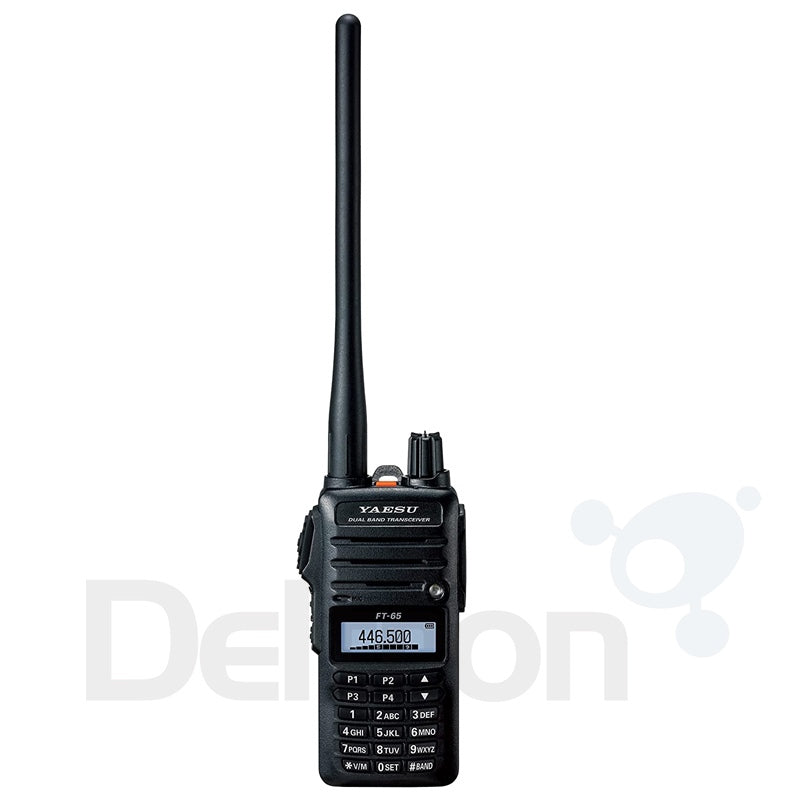

Yaesu FT-65E

The Yaesu FT-65E is a very compact and robust portable VHF/UHF transceiver with three selectable power settings: 5W, 2.5W and 0.5W, allowing each user to select the power they need. The Yaesu FT-65E has a large front speaker that delivers no less than 1 Watt of crisp, clear sound quality.

This Yaesu FT-65E comes with a 1950 mAh Li-ion battery that can work for more than 9 hours and with the optionally available 2500 mAh Li-ion battery with a higher capacity, you can expect more than 11.5 hours of operating time. A 3.5-hour fast charger is included as standard, making the Yaesu FT-65E ready to use at any time. The newly designed large LED display is vibrant and easy to read.

The user can program four (4) Quick Recall Keys (QRK) on the Yaesu FT-65E to immediately recall favorite channels at the touch of a button. The VOX control is available with the optional earphone microphone (Yaesu SSM-512B)

Furthermore, the Yaesu FT-65E has useful functions and versatile scanning options such as programmable VFO scan, memory scan, priority channel scan and weather warning scan, WX channels with "severe weather" warning, PC programming, transceiver-to-transceiver cloning, FM broadcast receiver, automatic Range Transponder System (ARTS), CTCSS/DCS operation, Busy Channel Lockout (BLCO), Automatic Power Off function and Transmitter Time Out Timer (TOT)

Commercial quality VHF/UHF

The FT-65E is built to commercial standards, including IP54 rating for dust and water protection and MIL-810-C, D and E standards, making this radio suitable for use in the most demanding environments.

Powerful outputs

With a reliable RF output power of 5 watts, this radio is sure to be heard. Never miss a call with one watt of crisp, clear audio output from the oversized front panel speaker.

High capacity Li-ion battery

Packed with a powerful 1950 mAh Li-Ion battery, giving the radio more than 9 hours of use, or upgrade to the optional High-Capacity 2500 mAh Li-Ion battery for more than 11.5 hours of extended use. To ensure minimal downtime, the FT-65E also comes with a 3.5-hour fast charger.

QRK (Quick Call Key)

Four dedicated user-programmable keys serve as shortcuts for preferred menu options, or use the four dedicated call keys to quickly and easily store and recall desired frequencies.

Versatile scanning options

Programmable VFO scan scans all channels in the desired frequency range, memory scan allows scanning of user selectable frequencies, priority channel scan can be used to scan memory channels while prioritizing one channel. Weather Alert scan alerts the user when severe weather is approaching.

PC programmable

The Yaesu FT-65R can be programmed directly from a PC, making all advanced installation functions a breeze using the optional software and SCU-35 programming cable.

Features of the Yaesu FT-65E

• Frequency range:
  • TX: 144-146 / 430-440MHz
  • RX: 136-174 / 400-480 MHz
  • FM broadcast: 65-108MHz
• Frequency step: 5 kHz / 6.25 kHz / 10 kHz / 12.5 kHz / 15 kHz / 20 kHz / 25 kHz / 50 kHz / 100 kHz /
• Channels: 200 memory channels / 3 home channels / 10 sets of edge memories / 10 memory banks / 10 weather channels
• Wide and narrow bandwidth selection: Yes
• Operating temperature: -20℃ to +60℃
• Frequency stability: ±5.0 PPM
• Repeater offset: 144 MHz: ±600 kHz / 430 MHz: ±1.6, 5.0, 7.6 MHz
• Supply voltage (nominal): negative ground, SBR-25LI: 7.4 V DC
• Power consumption: Receive: 205 mA / Output: 200 mA / Standby, Saver off: 100 mA / Standby, Saver on: 18 mA / Auto Power off: 4 mA / 144 MHz, 5 Watt, 7.4V: 1.5 A / 430 MHz , 5 Watts, 7.4 V: 1.7 A
• VOX function
• DTMF
• Flashlight
• Battery capacity: Li-ion 1950 mAh (7.4 V)
• Accessory connector: 1-pin Yeasu connector (Y)
• Emission mode: F2A / F2D / F3E
• Waterproof index: IP54
• Automatic Range Transponder System (ARTS): Yes, basic installation and operation of ARTS
• CTCSS/DCS
• Voice Commander
• Flashlight
• VFO split mode
• Scan
• Timeout Timer (TOT)
• Scan
• Busy Channel Lockout (BCLO)
• Automatic Power Off (APO)
• Emergency channel operation
• Quick Recall key (QRK)
• Antenna connection: SMA
• Housing: Rugged construction certified to MIL-STD-810-C, D
• Dimensions: L 30mm x H 105mm x W 52mm
• Weight: 260 grams

Transmitter

• Output power (Watt): 0.5/2.5/5.0 Watt
• Spurious emission: TX power Low: ≤ 40 dB / TX power Mid, HI: ≤ 60 dB
• Modulation type: F2A/F2D/F3E variable reactance modulation
• Maximum deviation: ±5.0 kHz
• Antenna impedance: 50 Ω
• Microphone impedance: 2k Ohm

Receiver

• Sensitivity 140-150 MHz: 0.2 μV typ for 12 dB SINAD (NFM)
• Sensitivity 420-470 MHz: 0.2 μV typ for 12 dB SINAD (NFM)
• Receiving system: Direct conversion
• Audio output power (internal speaker): 800 mW (16 Ω, THD10%, 7.4 V)
• Audio output power (external speaker): 800 mW (16 Ω, THD10%, 7.4 V)
• Selectivity (-6 dB/-60 dB): NFM / AM: 12 kHz / 35 kHz

Package contents

• 1x Yaesu FT-65E portable UHF/VHF transceiver
• 1x Yaesu SBR-25LI Li-ion battery pack 7.4 Volt 1950 mAh
• 1x Yaesu SBH-22 - SAD-20B/C/U Rapid Desk Charger with AC adapter
• 1x Yaesu antenna
• 1x Yaesu SHB-18 belt clip
• 1x Manual in English
