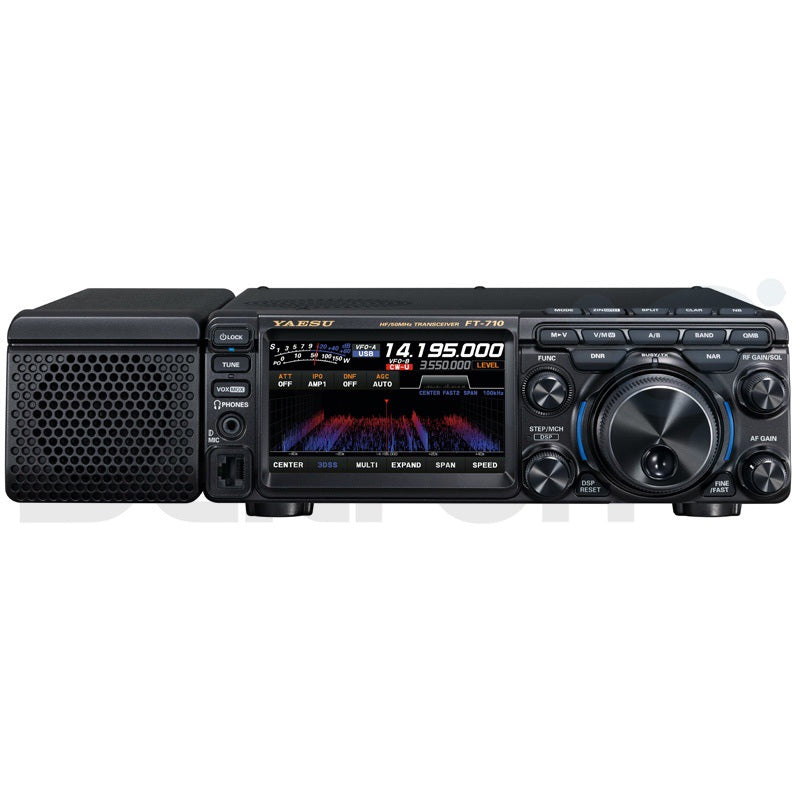

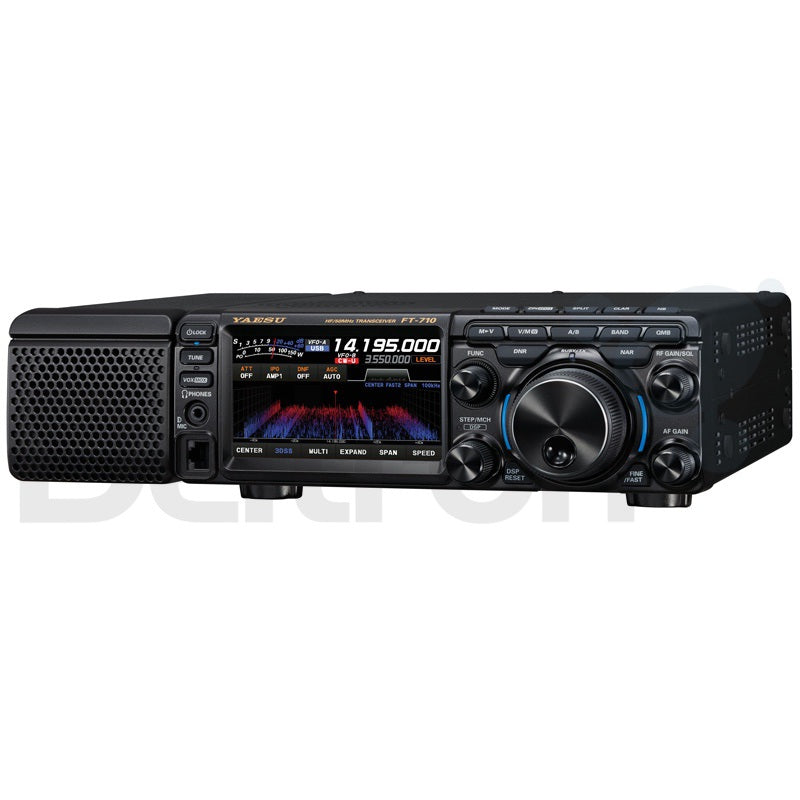

Yaesu FT-710 AESS

The Yaesu FT-710 AESS is a compact HF/50MHz 100W SDR transceiver that comes with the Yaesu SP-40 external speaker. The configuration of the SDR circuit emphasizes the reception performance.

The Yaesu FT-710 is equipped with the same high-resolution A/D converter and FPGA used in Yaesu high-end SDR transceivers. The dual A/D converter circuit configuration performs digital conversion processing using two A/D converters. The digital signal is combined by the FPGA to reduce overload and overflow of the A/D converters and improve the blocking characteristics. In addition, random noise is added to the analog signal before digital conversion, distortion is suppressed by minimizing the quantization error during digital conversion by the A/D converter, and dithering technology is used to improve the IM (Intermodulation) characteristics. The overall performance of the SDR receiving circuit is excellent.

Acoustic Enhancement Speaker System - AESS

Acoustic Enhancement Speaker System is generated by digital processing. The Mid-Low frequency enhancement speaker and the side speaker are combined to create the dramatic overall audio frequency response and high-fidelity audio output.

Quick Memory Bank feature - QMB

The QMB function can be used to store special memory channels. A memory can be easily recalled with a single button press. The Quick Memory Bank stores the frequency, mode, and also the transmit/receive settings, filter and other parameters, so that operation can be started quickly and in the best condition without resetting when changing bands. Memory settings can be easily checked by showing the memory contents on the display. (A maximum of 10 memory channels are available).

The front panel design emphasizes the operational efficiency and comfort of this compact transceiver with a large 4.3-inch TFT color touch screen display, offering intuitive operation and excellent visibility. Primary control functions are arranged on the front and centered above the rotary VFO knob for operational efficiency and instant access.

• AESS (Acoustic Enhancement Speaker System
• QMB - Quick Memory Bank function

Features Yaesu FT-710 AESS

• Frequency range:

  • TX: 1.8-54 / 70-70.5 MHz

  • RX: 30kHz-75MHz / 50-53.99 / 70-70.49MHz

• Wide and narrow bandwidth selection: Yes
• Operating temperature: 0℃ to +50℃
• Frequency step SSB/CW/AM: 1 Hz / 5 Hz / 10 Hz / 20 Hz
• Frequency step FM/C4FM: 100 Hz
• Frequency stability: ± 0.5 PPM
• Operating voltage: 13.8 Volt ± 15% (negative ground)
• Power consumption: RX (no signal): 1.8 A / RX (signal present): 2.2 A / TX (100W): 21 Amp.
• Display: 4.3 inch TFT color screen with touch screen
• Bandwidth: SSB: 3 kHz / CW: 500 Hz / AM: 6 kHz / FM: 16 kHz
• VOX function: Yes
• Broadcast mode: A1A (CW) / A3E (AM) / J3E (SSB) / F3E (FM)
• Quick Memory Bank (QMB): The current operating status can be saved to a special memory channel with one touch (QMB: Quick Memory Bank)
• Scope: The Scope function provides a real-time spectrum display of tire conditions.
• Intercept Point Optimization (IPO): The IPO function can determine the gain of the RF amplifier section to suit the connected antenna and the received signal conditions
• IF Noise Blanker (NB): The FT-710 includes an effective IF Noise Blanker, which can significantly reduce the noise caused by automotive ignition systems
• IF SHIFT Operation: IF Shift allows you to shift the digital filter passband up or down without changing the pitch of the incoming signal
• Automatic Gain Control (AGC): The AGC system is designed to help compensate for blur and other propagation effects
• Digital NOTCH Filter (DNF): The Digital NOTCH Filter (DNF) is an effective beat-cancelling filter that can cancel some of the interfering beat notes in the receiver's passband
• IF NOTCH Filter (NOTCH): The IF NOTCH filter is a very effective system that allows you to remove an interfering beat note or other carrier signal from the receiver's passband
• AF / RF Gain / Squelch
• Automatic Antenna Tuner (ATU): The Automatic Antenna Tuner is built into each FT-710. The ATU is designed to ensure that an antenna impedance load of 50 Ω is presented to the final amplifier stage of the transmitter
• Parametric Microphone Equalizer: The FT-710 features a unique three-band parametric microphone equalizer that provides precise, independent control over the bass, midrange, and treble frequencies in the voice waveform.
• Time-Out Timer (TOT): The "Time-Out Timer" (TOT) turns the transmitter OFF after continuous transmission for the programmed time
• Band Stack: The Yaesu FT-710 utilizes a triple-band-stack VFO selection technique that allows up to three favorite frequencies and modes to be stored in each VFO band register.
• MicroSD card slot
• External Phone Jack: Connect a headset to this standard φ3.5 stereo jack
• External GND Connection
• External speaker connection
• External REM/ALC Connection
• External KEY Connection
• External RTTY/DATA Connection
• External USB Port
• External USB Port
• External Display Connection
• Antenna connector: UHF (PL) female (SO-239)
• Microphone connector: RJ45
• Dimensions: L 247 mm x H 80 mm x W 239 mm
• Weight: 4500 grams

Transmitter

• Power output (Watts): SSB, CW, FM: 5-100 Watts / AM: 5-25 Watts
• Modulation type: J3E / A3E / F3E
• Maximum deviation: Wide: ±5.0 kHz / Narrow: ±2.5 kHz
• Harmonic Radiation 1.8 - 29.7 MHz: Better than -50 dB
• Harmonic Radiation 50 - 54 MHz: Better than -63 dB
• Antenna impedance (Antenna tuner 'OFF'): 50 Ω (unbalanced)
• Antenna impedance (Antenna tuner 'ON') 1.8-29.7 MHz: 16.7-150 Ω (unbalanced)
• Antenna impedance (Antenna tuner 'ON') 50 MHz: 25 - 100 Ω (unbalanced)
• Microphone impedance: 600 Ω (200 - 10k Ω)
• SSB Carrier Suppresion: At least 60 dB below peak output
• Undesired Sideband Suppression: At least 60 dB below peak output
• Audio response SSB: Not more than -6 dB from 300 - 2700 Hz

Receiver

• Sensitivity 1.8-30 MHz SSB/CW: 0.16 μV typ for 10 dB SINAD (AMP2 “ON”) (2.4 kHz)
• Sensitivity 50-54 MHz SSB/CW: 0.125 μV typ for 10 dB SINAD (AMP2 “ON”) (2.4 kHz)
• Sensitivity 70-70.5 MHz SSB/CW: 0.16 μV typ for 10 dB SINAD (AMP2 “ON”) (2.4 kHz)
• Sensitivity 0.5-1.8 MHz AM: 6.3 μV typ for 10 dB SINAD (AMP2 “ON”) (30% modulation, 6.0 kHz / @ 400Hz)
• Sensitivity 1.8-30 MHz AM: 2.0 μV typ for 10 dB SINAD (AMP2 “ON”) (30% modulation, 6.0 kHz / @ 400Hz)
• Sensitivity 50-54 MHz AM: 1.0 μV typ for 10 dB SINAD (AMP2 “ON”) (30% modulation, 6.0 kHz / @ 400Hz)
• Sensitivity 70-70.5 MHz AM: 2.0 μV typ for 10 dB SINAD (AMP2 “ON”) (30% modulation, 6.0 kHz / @ 400Hz)
• Sensitivity 1.8-30 MHz FM: 0.25 μV typ for 12 dB SINAD (AMP2 “ON”) (12 kHz)
• Sensitivity 50-54 MHz FM: 0.2 μV typ for 12 dB SINAD (AMP2 “ON”) (12 kHz)
• Sensitivity 70-70.5 MHz FM: 0.25 μV typ for 12 dB SINAD (AMP2 “ON”) (12 kHz)
• Intermediate frequency: SSB/CW, 18 kHz, AM/FM: 24 kHz
• Selectivity (-6 dB/-60 dB) CW: 0.5 kHz or better / 0.75 kHz or less
• Selectivity (-6 dB/-60 dB) SSB: 2.4 kHz or better / 3.6 kHz or less
• Selectivity (-6 dB/-60 dB) AM: 6.0 kHz or better / 15 kHz or less
• Selectivity (-6 dB/-60 dB) FM: 12 kHz or better / 25 kHz or less
• Receiving system: Direct Sampling superheterodyne
• Strength of secondary radio waves: ≤4 nW
• Audio power output: 2.5W (THD10%, 13.8 V)
• Audio output impedance: 4 - 16 Ω (Nominal: 4 Ω)
• Image rejection 1.8-28 MHz: 70 dB or better
• Image rejection 50 MHz: 60 dB or better

Package contents

• 1x Yaesu FT-710 transceiver
• 1x Power cable
• 1x Yaesu SP-40 external speaker
• 1x Yaesu SSM-75E Microphone
• 1x Spare fuse 25 Amp.
• 1x Manual in English
