Yaesu FT-991A

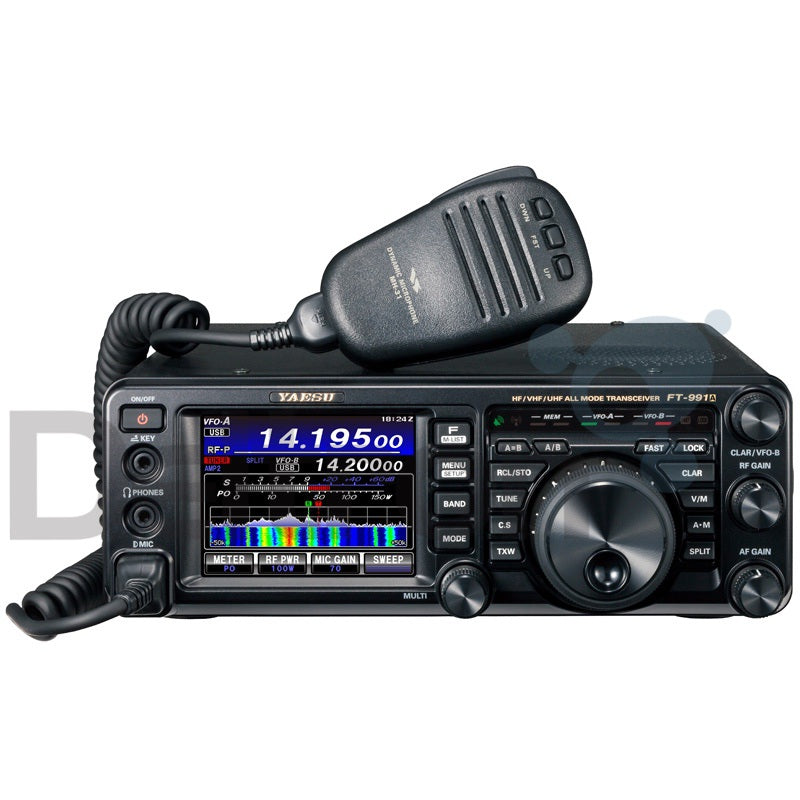

The Yaesu FT-991A is the next generation all-mode, all-band MF, HF, VHF and UHF transceivers with digital C4FM (System Fusion) capabilities. The Yaesu FT-991A features multi-mode operation on CW, AM, FM, SSB and digital modes (Packet, PSK31, RTTY and C4FM), with 100 Watt HF/50MHz capacity (50 Watt VHF/UHF).

This new Yaesu FT-991A is equipped with a high-resolution 3.5-inch TFT touchscreen for superior control and clear readability, with a High Speed ​​Spectrum and a high-resolution real-time scope and built-in ASC (Automatic Spectrum scope control).

For all applications and work areas the Yaesu FT-991A is suitable, whether you work mainly at home, mobile or in the field, the Yaesu FT-991 delivers excellent performance and gives you easy access to the full range of modes available today on the ham bands.

Real-time spectrum scope with Automatic Scope Control (ASC)

The new dynamic real-time spectrum range gives radio operators the ability to graphically view the location of signals on the band while listening to the received audio, allowing them to quickly navigate to the desired signal. The strength of the signals on the band is easy to see on the multi-colored waterfall display. Color differentiation in chronological order allows operators to easily recognize weak signals at a glance; signals that would otherwise be missed on the spectrum range. Advanced Spectrum Scope with ASC (Automatic Spectrum-Scope Control) just below the LCD screen gives the operator all the information for comfortable QSO on the DX scene.

Multi-coloured display

The Yaesu FT-991A now includes a real-time multi-color waterfall display that allows you to quickly and easily identify and pick up signals without having to mute the received audio. Advanced 32-bit digital signal processing system. The Yaesu FT-991A recognizes the all-important Golden Rule of amateur radio - "You can't operate 'em if you can't hear 'em" - and features a rugged, state-of-the-art, highly balanced receiver circuit configuration. The high-speed floating point TMS320C6746 DSP chip (3000 MIPS / 2250 MFLOPS) from Texas Instruments used in the receiver design guarantees excellent suppression of interference with real signals under real conditions, not only on HF but also in the VHF and UHF bands.

3kHz roof filter

The Yaesu FT-991A includes a 3Khz triple conversion receiver roof filter that effectively attenuates spurious signals and enables excellent performance while still producing high quality audio.

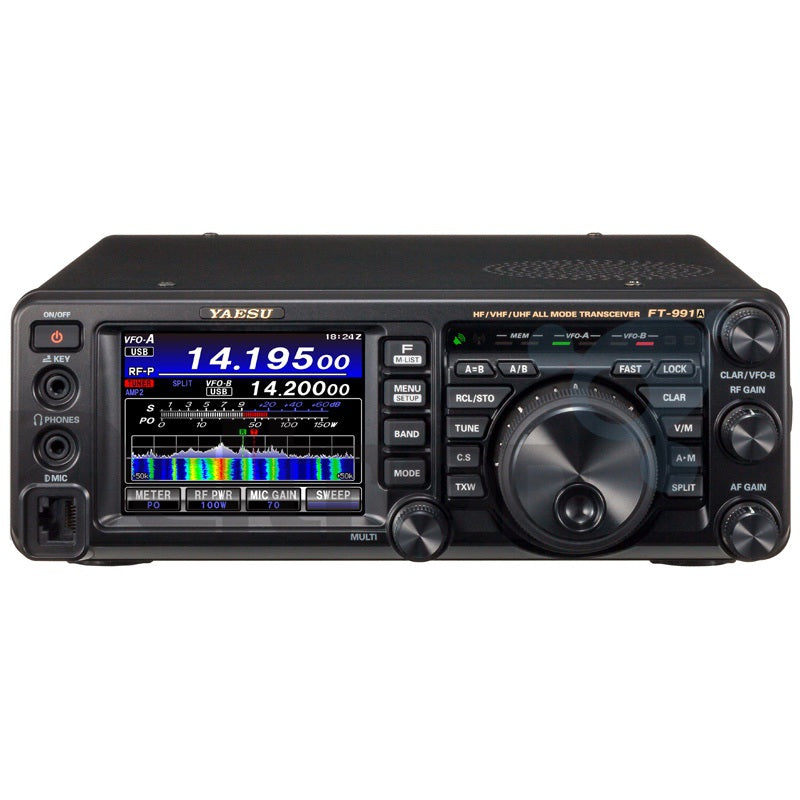

3.5-inch TFT color screen

The Yaesu FT-991 offers all functions at a glance with the 3.5-inch TFT color screen.

USB compatible

The Yaesu FT-991A can be connected to a computer using a USB cable to perform CAT control and firmware updates or to use an integrated SCU-17 interface unit to support USB Audio In/ Out, TX Control (PTT, Key, Shift).

100 Watts of solid performance

The RF amplifier in the Yaesu FT-991A delivers a clean, stable 100 Watt operating power (50 Watt VHF/UHF) and is combined with a large heat sink and automatic air cooling fan to extend operating time and prevent overheating.

Compact, lightweight and portable

The Yaesu FT-991A Comes in a compact, lightweight package suitable for portable, mobile and basic installations. Measuring 8.8" (W) x 3" (H) x 9.9" (L) and weighing just 4.3kg, this rugged, fully featured mobile/portable radio is ready to go wherever and whenever you are!

Internal automatic antenna tuner

The Yaesu FT-991A has a fast internal automatic antenna tuner. The antenna tuner uses an LC switching network with a large capacity of 100 channels. The tuning data is automatically stored in memory to shorten the tuning time when changing frequencies.

High accuracy TCXO

±0.5 PPM High resolution DDS/PLL local oscillator included as part of the standard package.

Features Yaesu FT-991A

• Frequency range;

  • TX: 1.8-54 / 144-146 / 430-440MHz

  • RX: 30kHz-75MHz / 118-164 / 420-470MHz

• Wide and narrow bandwidth selection
• Operating temperature: -10℃ to +50℃
• Frequency step SSB/CW/AM: 5 Hz / 10 Hz
• Frequency step FM/C4FM: 100 Hz
• Frequency stability: ± 0.5 PPM
• Operating Voltage: 13.8 Volt ± 15% (negative ground)
• Power consumption: RX (no signal): 1.8 A / RX (signal present): 2.2 A / TX HF/50 MHz (100W): 23 A / TX 144/430 MHz (50W): 15 A
• Display: 3.5 inch TFT color display with touch screen
• Bandwidth: SSB: 3 kHz / CW: 500 Hz / AM: 6 kHz / FM,C4FM: 16 kHz
• VOX function
• Emission mode: A1A (CW) / A3E (AM) / J3E (SSB) / F2D (FM) / F3E (FM)
• Quick Memory Bank (QMB): The current operating status can be saved in a special memory channel with one touch (QMB: Quick Memory Bank)
• Automatic Mode Select (AMS): The transceiver has the AMS (Automatic Mode Select) function, which allows the transceiver to automatically select the most suitable option from the three communication modes based on the received signal while operating in C4FM mode.
• Scope: The Scope function provides a real-time spectrum view of band conditions.
• Intercept Point Optimization (IPO): The IPO function can determine the gain of the RF amplifier section to accommodate the connected antenna and received signal conditions
• IF Noise Blanker (NB): The IPO function can determine the gain of the RF amplifier section to accommodate the connected antenna and received signal conditions.
• IF SHIFT operation (SSB/CW/RTTY/DATA modes): IF SHIFT allows the DSP filter passband to be raised or lowered without changing the pitch of the incoming signal, thus reducing or eliminating interference.
• Automatic Gain Control (AGCl): The AGC system is designed to help compensate for fade and other propagation effects
• Digital NOTCH Filter (DNF): The Digital NOTCH Filter (DNF) is an effective beat-cancelling filter that can cancel out some disturbing beat notes in the receiver's passband
• IF NOTCH Filter (NOTCH): The IF NOTCH filter is a highly effective system that allows you to remove an interfering beat note or other carrier signal from the receiver's passband
• AF / RF Gain / Squelch
• ATU control
• Parametric Microphone Equalizer: The FT-991A features a unique three-band parametric microphone equalizer that provides precise, independent control over the bass, mid, and treble in the vocal waveform.
• Time-Out Timer (TOT): Yes, the "Time-Out Timer" (TOT) turns the transmitter OFF after continuous transmission for the programmed time
• Band Stack: The Yaesu FT-991A uses a triple-band stack VFO selection technique that allows up to three favorite frequencies and modes to be stored in each VFO band register.
• External Phone Jack: Connect headphones to this standard φ3.5 stereo jack
• External KEY Connection
• External speaker connection
• External REM ALC Connection
• External GPS/CAT Connection
• External TUN/LIN bus
• External RTTY/DATA connection
• External GND Connection
• External USB Connection
• Antenna Connection: UHF (PL) Female (SO-239)
• Microphone connection: RJ45
• Dimensions: L 253 mm x H 80 mm x W 229 mm
• Weight: 4.3kg (4300 grams)

Transmitter

• Output power (Watt): SSB, CW, FM: 5-100 Watt / AM: 5-25 Watt
• Modulation type: J3E / A3E / F3E / F7W
• Maximum deviation: wide: ±5.0 kHz / narrow: ±2.5 kHz
• Harmonic radiation 1.8 - 30 MHz: Better than -50 dB
• Harmonic radiation Amateur bands above 30 MHz: Better than -63 dB
• Harmonic radiation 50 - 54 MHz: Better than -63 dB
• Harmonic radiation 144/430 MHz: Better than -60 dB
• Antenna impedance: 50 Ω (unbalanced)
• Microphone impedance: 600 Ω (200 - 10k Ω)
• SSB Carrier Suppression: Minimum 50 dB below peak output
• Unwanted sideband suppression: minimum 50 dB below peak output
• Audio response SSB: no more than -6 dB from 300 - 2700 Hz

Receiver

• Sensitivity 1.8-30 MHz SSB/CW: 0.158 μV type for 10 dB SINAD (AMP2 "ON") (2.4 kHz)
• Sensitivity 50-54 MHz SSB/CW: 0.125 μV type for 10 dB SINAD (AMP2 “ON”) (2.4 kHz)
• Sensitivity 144-148 MHz SSB/CW: 0.11 μV type for 10 dB SINAD (2.4 kHz)
• Sensitivity 430-450 MHz SSB/CW: 0.11 μV type for 10 dB SINAD (2.4 kHz)
• Sensitivity 0.5-1.8 MHz AM: 5 µV type for 10 dB SINAD (AMP2 "ON") (30% modulation, 6.0 kHz / @ 400Hz)
• Sensitivity 1.8-30 MHz AM: 1.6 μV type for 10 dB SINAD (AMP2 "ON") (30% modulation, 6.0 kHz / @ 400Hz)
• Sensitivity 50-54 MHz AM: 1.25 μV typ for 10 dB SINAD (AMP2 "ON") (30% modulation, 6.0 kHz / @ 400Hz)
• Sensitivity 1.8-30 MHz FM: 0.35 µV type for 12 dB SINAD (AMP2 “ON”) (15 kHz)
• Sensitivity 50-54 MHz FM: 0.35 μV typ for 12 dB SINAD (AMP2 "ON") (15 kHz)
• Sensitivity 144-148 MHz FM: 0.18 μV typ for 12 dB SINAD (15 kHz)
• Sensitivity 430-450 MHz FM: 0.18 μV typ for 12 dB SINAD (15 kHz)
• Center frequency 1st: SSB,CW,AM,FM: 69.450 MHz
• Center frequency 2nd: SSB,CW,AM: 9,000 MHz / FM,C4FM: 450 kHz
• Center frequency 3rd: SSB,CW,AM: 24 kHz
• Selectivity (-6 dB/-60 dB) CW: 0.5 kHz or better / 0.75 kHz or less
• Selectivity (-6 dB/-60 dB) SSB: 2.4 kHz or better / 3.6 kHz or less
• Selectivity (-6 dB/-60 dB) AM: 6.0 kHz or better / 15 kHz or less
• Selectivity (-6 dB/-60 dB) FM: 12 kHz or better / 30 kHz or less (-50 dB)
• Reception system SSB/CW/AM: Triple conversion superheterodyne
• Reception system FM/C4FM: Superheterodyne with double conversion
• Secondary radio wave strength: ≤4 nW
• Audio output power: 2.5 W (THD10%, 13.8 V)
• Audio output impedance: 4 - 8 Ω (nominal: 4 Ω)
• Image suppression 1.8-30/50-54 MHz: 70 dB or better
• Image suppression 144/430 MHz: 60 dB or better

Package contents

• 1x Yaesu Yaesu FT-991A
• 1x DC cable
• 1x Yaesu MH-31A8J Microphone
• 1x Spare fuse 25 Amp.
• Manual in English
