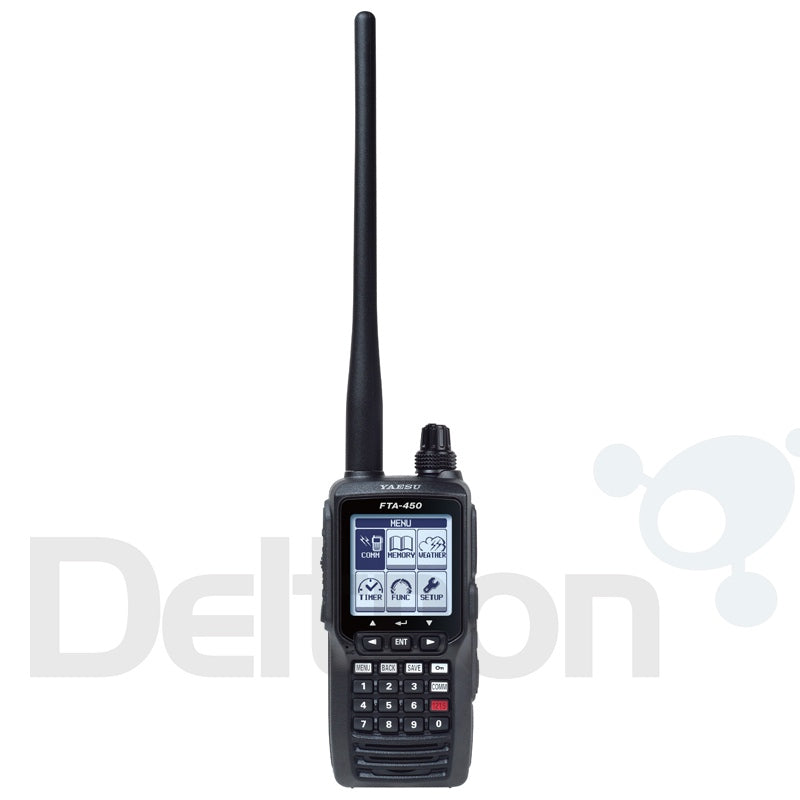

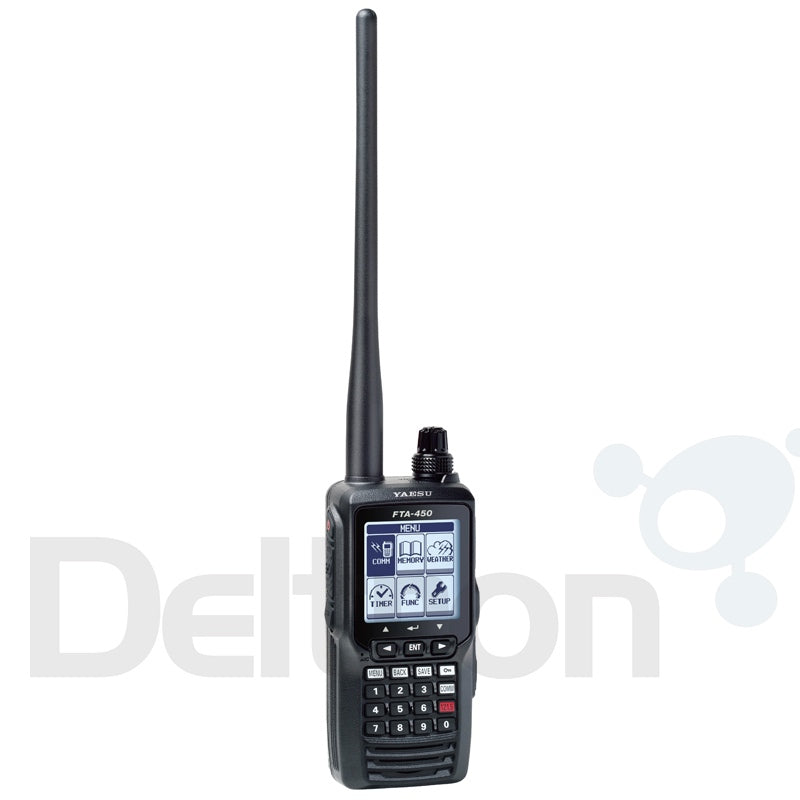

Yaesu FTA-450L

The Yaesu FTA-450L is a competitively priced version of the hugely successful Yaesu FTA-550L and Yaesu FTA-750L. This FTA-450L features the same easy-to-use icon-driven menu system on a large 1.7 x 1.7 inch (4.32 x 4.32cm) Full Dot Matrix Display and the same Loud 800mW internal audio speaker so calls aren't missed. The FTA-450L is 8.33 kHz Narrow Band compatible and has a programmable memory bank for 200 channels, meaning all favorite channels can be easily stored and retrieved with just a few button presses.

The Yaesu FTA-450L comes complete with all necessary accessories including 110VAC and 12VDC chargers, headset adapter, alkaline battery holder, belt clip, USB programming cable and a large capacity 2200 mAh Li-Ion rechargeable battery.

MIL-STD-810F standard

The Yaesu FTA-450L has been tested and meets the military standard MIL-STD-810F. As with commercial land mobile radios, all current Yaesu Airband Transceivers are tested for durability against low temperatures, high temperatures, shock, vibration, dust and rain, ensuring years of rugged use.

Simple menu system

The Yaesu FTA-450L comes with an easy-to-use icon-driven menu system. The displays and menu settings are logically configured for a more intuitive user interface.

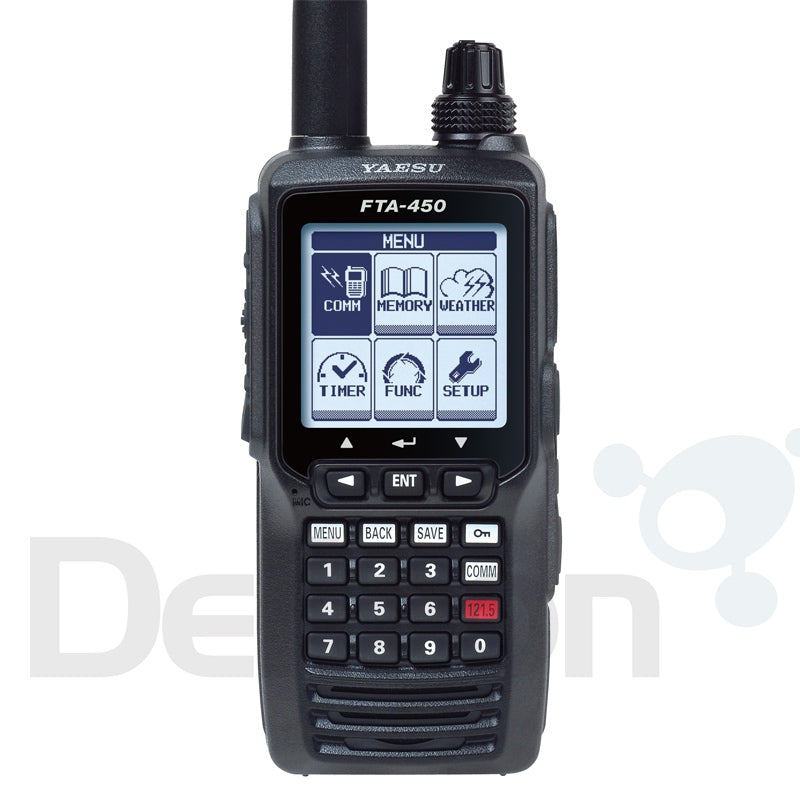

Large Dot Matrix LCD screen

The Yaesu FTA-450L has a 4.32 x 4.32cm (1.7" x 1.7") Full Dot Matrix LCD screen with a high resolution and bright backlight and dimmer. This makes it easier to experience all the great features that the Yaesu FTA-450L has to view.

Memory for 200 channels

The Yaesu FTA-450L can store up to 200 memory channels for quick and easy retrieval. With the ability to use up to 15 alphanumeric characters per name, the FTA-450 provides better channel description.

Programmable via PC

The Yaesu FTA-450L's channel configurations can be easily reprogrammed using the included USB programming cable and optional YCE01 programming software.

Features Yaesu FT-450L

• Frequency range:118.000 - 136.9916 MHz
• Frequency steps: 8.33 kHz / 25 kHz /
• Channels: 200 channels with 15-character alphanumeric tags
• Operating temperature: -10℃ to +60℃
• Supply voltage: 6.0 to 9.5 Volts
• Power consumption: Power off: 300 μA / Battery saver on: 60 mA / Squelch on: 80 mA / Receive: 300 mA / Transmit 1.5 Watt: 0.9 A
• Screen: Huge 1.7 x 1.7 inch Full-Dot matrix screen (160x160 pixels)
• Battery capacity: Li-ion 2200 mAh (7.2 V)
• Accessory connector: 1-pin Yeasu connector (Y)
• NOAA Weather Transmitter Receive and NOAA Weather Alert
• Waterproof index: IPx5
• Vox function on 5 levels
• Scan function
• Dual Watch function
• Antenna connection: BNC
• Housing: Rugged construction certified to MIL-STD-810F
• Dimensions: L 34 mm x H 133 mm x W 62 mm
• Weight: 410 grams

Transmitter

• Output power (Watt): Carrier power: 1.5 Watt / PEP: 5.0 Watt
• Spurious emission: >70 dB under carrier
• Frequency stability: better than ±1 ppm (-10℃ to +60℃)
• Modulation system: Low level amplitude modulation
• Internal microphone type: condenser
• External microphone impedance: 150 Ohm

Receiver

• Sensitivity: Better than 0.8 μV (for 6 dB S/N at 1 kHz, 30% modulation)
• Audio output power: 0.8 W (16 Ω, THD10%)
• Reception system: Superheterodyne with double conversion
• Center frequency: VHF: 47.25 MHz / UHF: 46.35 MHz, 450 kHz
• Selectivity: >8 kHz/–6 dB @ 25 kHz channel spacing
• Adjacent channel selectivity: <25 kHz/–60 dB @ 25 kHz channel spacing

Package contents

• 1x Yaesu FTA-450L portable airband transceiver
• 1x Yaesu SBR-39LI Lithium-Ion battery 7.2 Volt 2200 mAh
• 1x Yaesu SBH-11-SAD-25 desktop charger with AC adapter
• 1x Yaesu SRA-20A spiral antenna
• 1x Yaesu SDD-12 cigarette lighter DC/DC converter
• 1x Yaesu SHB-11 belt clip
• 1x Yaesu SCU-42 headset adapter
• 1x Yaesu SBT-12 alkaline battery holder
• 1x Yaesu T9101606 USB programming cable (mini-USB/USB-A)
• 1x Yaesu L9190192 ferrite core* for the 12Volt cable
• 1x Manual in English

What is a ferrite core?

*Ferrite core is a type of magnetic core made of ferrite on which the windings of electrical transformers and other wound components such as inductors are formed. Ferrite cores are used because of their properties of high magnetic permeability combined with low electrical conductivity. Due to their relatively low losses at high frequencies, they are also widely used in the cores of RF transformers and inductors such as switched-mode power supplies and ferrite loopstick antennas for AM radio receivers.

Ferrites are ceramic compounds of the transition metals with oxygen, which are ferrimagnetic but non-conductive. Ferrites used in transformer or electromagnetic cores contain iron oxides combined with nickel, zinc and/or manganese compounds. They have a low coercivity and are called "soft ferrites" to distinguish them from "hard ferrites", which have a high coercivity and are used to make ferrite magnets. The low coercivity means that the magnetization of the material can easily change direction while dissipating very little energy (hysteresis losses). At the same time, the high resistivity of the material prevents eddy currents in the core, another source of energy loss.

Source: Wikipedia
