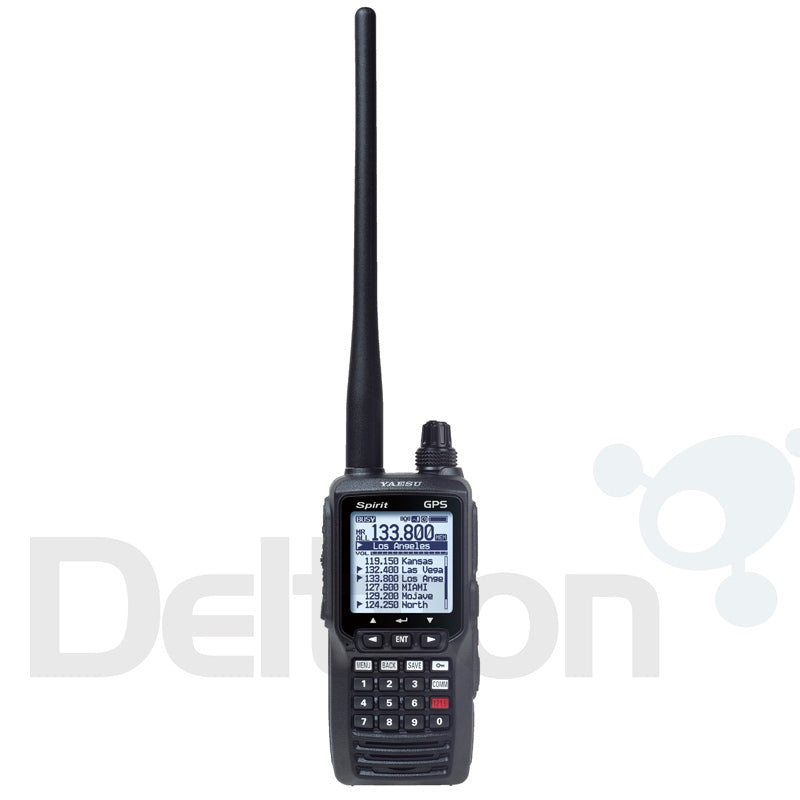

Yaesu FTA-750L

The Yaesu FTA-750L is an easy-to-use portable airband transceiver. With this Yaesu FTA-750L you can extensively monitor aviation communications and aircraft communications due to the many ingenious functions that this transceiver has, such as; 66-channel GPS receiver, extra large full dot matrix LCD screen, VOR and ILS navigation functions on the 'NAV' band and Waypoint navigation with the built-in GPS receiver.

This Yaesu FTA-750L includes NOAA weather band monitoring and the ability to program up to 200 memory channels with a quick and easy channel recall function. The new menu is driven by icons making it easy to navigate all the powerful features of this transceiver. In addition, the Yaesu FTA-750L can be easily programmed using the included USB programming cable and the optionally available programming software.

MIL-STD-810F standard

The Yaesu FTA-750L has been tested and meets the Military Standard MIL-STD-810F standard. As with commercial land mobile radios, all current Yaesu Airband Transceivers are tested for durability against low temperatures, high temperatures, shock, vibration, dust and rain, ensuring years of rugged use.

66-channel WAAS GPS receiver

The Yaesu FTA-750L features an integrated 66-channel WAAS GPS receiver that provides the ability to quickly store current position information and manually enter waypoints for reliable navigation. When a waypoint is activated, the navigation screen includes a compass display with bearing, course over ground, distance and speed information.

GPS position registration

The Yaesu FTA-750L includes a GPS recording function, when activated, automatically stores your position information at preset intervals. This is a great feature when backtracking is necessary.

ILS navigation (localization and glide slope )

When the Yaesu FTA-750L receives an ILS signal, the display automatically switches to the NAV band screen which shows a CDI (Course Deviation Indicator) based on the received localizer signal or glide slope signal. Course and altitude deviations are clearly shown on the color CDI display and assist with landing approach in poor weather conditions.

VOR navigation

When the Yaesu FTA-750L receives a VOR signal, the display automatically switches to the NAV band screen and shows the CDI. The top of the compass rose always indicates the direction set as the OBS. The SOG (Speed ​​Over Ground) is only displayed when the FTA-850L internal GPS unit is activated and a fix has been obtained.

Simple operation menu system

The Yaesu FTA-750L comes with an easy-to-use icon-driven menu system. The displays and menu settings are logically configured for a more intuitive user interface.

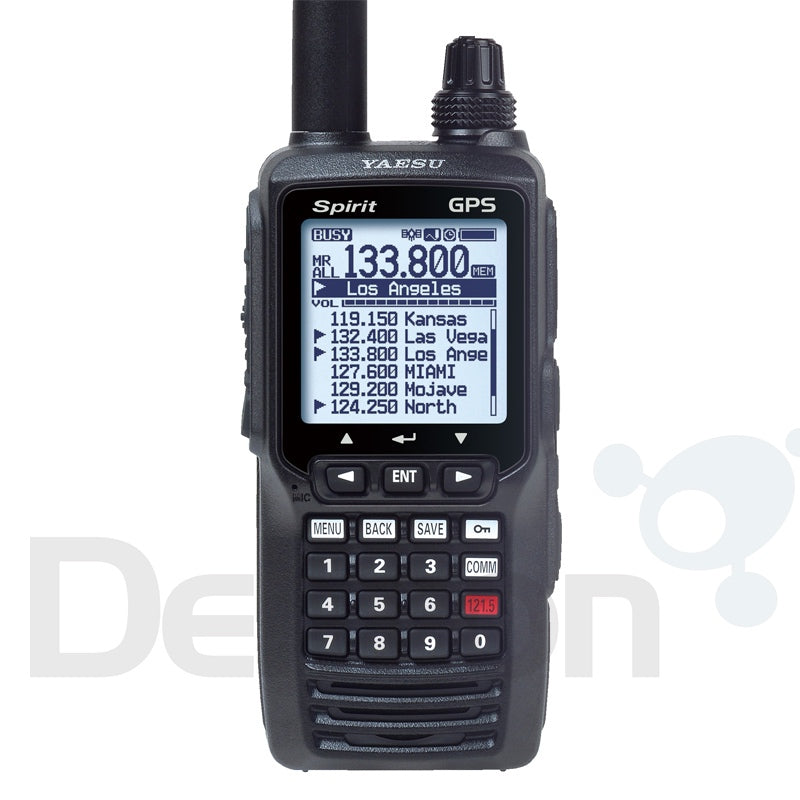

Dot Matrix LCD screen

The Yaesu FTA-750L has a large 1.7" x 1.7" (4.32 x 4.32 cm) Full Dot Matrix LCD screen with high resolution and is equipped with a bright backlight and dimmer, making the screen easy and clearly legible.

Memory with 200 channels

The Yaesu FTA-750L can store up to 200 memory channels and has the ability to use up to 15 alphanumeric characters per name.

Programmable via PC

The channel configurations of the Yaesu FTA-750L can be easily programmed using the included USB programming cable and the optional YCE01 programming software.

Features Yaesu FTA-750L

• Frequency range
  • TX: 118.000-136.9916
  • RX: 108.000-136.9916 MHz (NAV and COM bands) / 329.150-335.000 (Glide slope)
• Frequency step: 8.33 kHz / 25 kHz /
• Channels: 200 channels with 15-character alphanumeric tags
• Operating temperature: -10℃ to +60℃
• Supply voltage: 6.0 to 9.5 Volts
• Power consumption: Mono band Reception: 180 mA / Dual band Reception: 220 mA / Mono band Reception, Standby: 110 mA / Dual band Reception, Standby: 145 mA / Mono band Reception, Standby, Saver on 'Save Ratio 1:10: 74 mA / Dual-band Reception, Standby, Saver on 'Save Ratio 1:10: 74 mA / GPS on: +15 mA / Digital on: +3 Ma / AM,FM Radio: 125 mA / Auto Power Off: 600 μA / 144 MHz, 5 watts, 7.4 V: 1.6 A / 430 MHz, 5 watts, 7.4 V: 1.9 A
• Screen: Huge 1.7 x 1.7 inch Full-Dot matrix screen (160x160 pixels)
• Battery capacity: Li-ion 2200 mAh (7.2 V)
• Accessory connector: 1-pin Yeasu connector (Y)
• ILS navigation display (Localizer and Glide Scope): When the FTA-750L receives an ILS signal, the display automatically switches to the NAV band screen
• VOR navigation display: When the FTA-750L receives a VOR signal, the display automatically switches to the NAV band screen
• Waypoint Navigation: The navigation function has a compass that allows you to determine the destination and bearing at a glance
• NOAA Weather Transmitter received
• NOAA weather warning
• Waterproof index: IPx5
• Robust housing MIL-STD-810F certified
• GPS function integrated 66-channel WAAS GPS receiver
• Vox function in 5 levels
• Scan function
• Dual Watch function
• Antenna connector: BNC
• Dimensions: L 34 mm x H 133 mm x D: 62 mm
• Weight: 410 grams

GPS unit

• Receiver channels: 66 channels
• Sensitivity: ≤ –147 dBm
• Time to first repair: Cold start: 1 minute on average / Warm start: 5 seconds on average
• Geodetic datum: WGS84

Transmitter

• Output power / Carrier power: 1.5 Watt / PEP: 5.0 Watt
• Spurious emission: >70 dB under carrier
• Frequency stability: better than ±1 ppm (-10℃ to +60℃)
• Modulation system: low level amplitude modulation
• Internal microphone type: condenser
• External microphone impedance: 150 Ohm

Receiver

• Sensitivity: Better than 0.8 μV (for 6 dB S/N at 1 kHz, 30% modulation)
• Audio output power: 0.8 Watt (16 Ω, THD10%)
• Reception system: Superheterodyne with double conversion
• Center frequency: VHF: 47.25 MHz / UHF: 46.35 MHz, 450 kHz
• Selectivity: >8 kHz/–6 dB @ 25 kHz channel spacing
• Adjacent channel selectivity: <25 kHz/–60 dB @ 25 kHz channel spacing

Package contents

• 1x Yaesu FTA-750L portable airband transceiver
• 1x Yaesu SBR-39LI Lithium-Ion battery 7.2Volt 2200mAh
• 1x Yaesu SBH-11 - SAD-25 Desktop charger with AC adapter
• 1x Yaesu SRA-20A spiral antenna
• 1x Yaesu SDD-12 cigarette lighter DC/DC converter
• 1x Yaesu SHB-11 belt clip
• 1x Yaesu SCU-42 headset adapter
• 1x Yaesu SBT-12 alkaline battery holder
• 1x Yaesu T9101606 USB programming cable (mini-USB/USB-A)
• 1x Yaesu L9190192 ferrite core*
• 1x Manual in English

What are ferrites?

Ferrites are ceramic compounds of the transition metals with oxygen, which are ferrimagnetic but non-conductive. Ferrites used in transformer or electromagnetic cores contain iron oxides combined with nickel, zinc and/or manganese compounds. They have a low coercivity and are called "soft ferrites" to distinguish them from "hard ferrites", which have a high coercivity and are used to make ferrite magnets. The low coercivity means that the magnetization of the material can easily change direction while dissipating very little energy (hysteresis losses). At the same time, the high resistivity of the material prevents eddy currents in the core, another source of energy loss.

Source: Wikipedia
