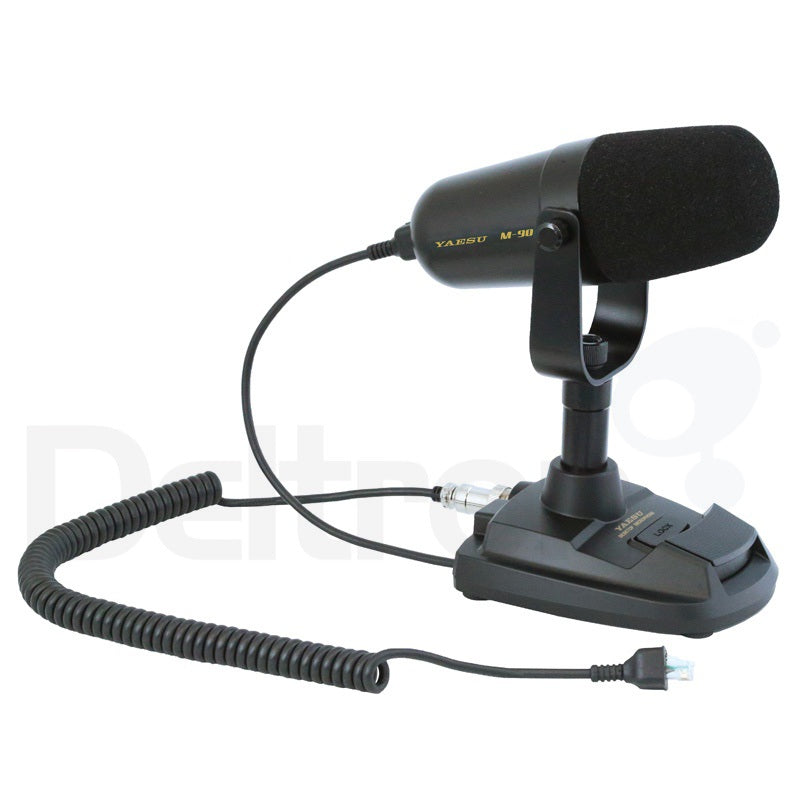

Yaesu M-90D

The Yaesu M-90D is a high-quality and robust desktop microphone that uses a dynamic microphone element that is specially tuned to produce a rich voice with depth and warmth. Suitable for various Yaesu radios, but the following radios require an external power supply: FT-747 / FT-840 / FT-850 / FT-990 and FT-1000.

The Yaesu M-90D is suitable for:

• Yaesu FT-450


• Yaesu FT-817


• Yaesu FT-818


• Yaesu FT-847


• Yaesu FT-857


• Yaesu FT-891


• Yaesu FT-897


• Yaesu FT-900


• Yaesu FT-920


• Yaesu FT-950


• Yaesu FT-991


• Yaesu FT-1000


• Yaesu FT-2000


• Yaesu FT-DX10


• Yaesu FT-DX101D


• Yaesu FT-DX101MP


• Yaesu FT-DX1200


• Yaesu FT-DX3000


• Yaesu FT-DX5000


• Yaesu FT-DX9000

Features Yaesu M-90D table microphone

• With lock button


• Microphone connector: 8-Pin / RJ45


• Low Cut Switch: When this switch is ON, a low-cut filter (cutoff frequency 340 Hz, -6 dB/octave) is activated


• Frequency response: 30 - 17000 Hz


• Impedance: 600 Ohms


• Sensitivity: -60 dB (1 kHz 0 dB=1V/1Pa)


• Power consumption: 15 mA (TYP)


• Supply voltage: DC 5.0 V ±10%

Package contents

• 1x Yaesu M-90D table microphone


• 1x Manual in English
