Yaesu M-90MS kit

SKU: ABC63X002
€ 158,95

About this product

De Yaesu M-90MS microfoonstand kit biedt een superieure geluidskwaliteit en veelzijdigheid, ideaal voor gebruik met een breed scala aan Yaesu HF-transceivers. Dankzij de vervangbare onderdelen en compatibiliteit met verschillende modellen, is deze set een uitstekende keuze voor zowel hobbyisten als professionele gebruikers. Verhoog je communicatie-ervaring met de betrouwbare en hoogwaardige Yaesu M-90MS Microfoonset.

Delivery time:

Please inquire about delivery time

The Yaesu M-90MS utilizes a dynamic microphone element that is finely tuned to deliver rich low to mid frequency response desirable for a clear and concise conversation.

Using a windscreen cover and a directional microphone element, the structure of the microphone of the Yaesu M-90MS is designed to concentrate voice input from the front while reducing ambient noise from the side.

Built-in Low-Cut filter creates clear and crisp audio characteristics by shaping the low frequency response (cut off at 340Hz, -6dB/octave).

An isolation transformer is integrated into the circuit board in order to enhance the audio quality.

The Yaesu M-90MS* are compatible with all YAESU HF transceivers equipped with the round 8-pin microphone connector or the 8-pin modular microphone connector.

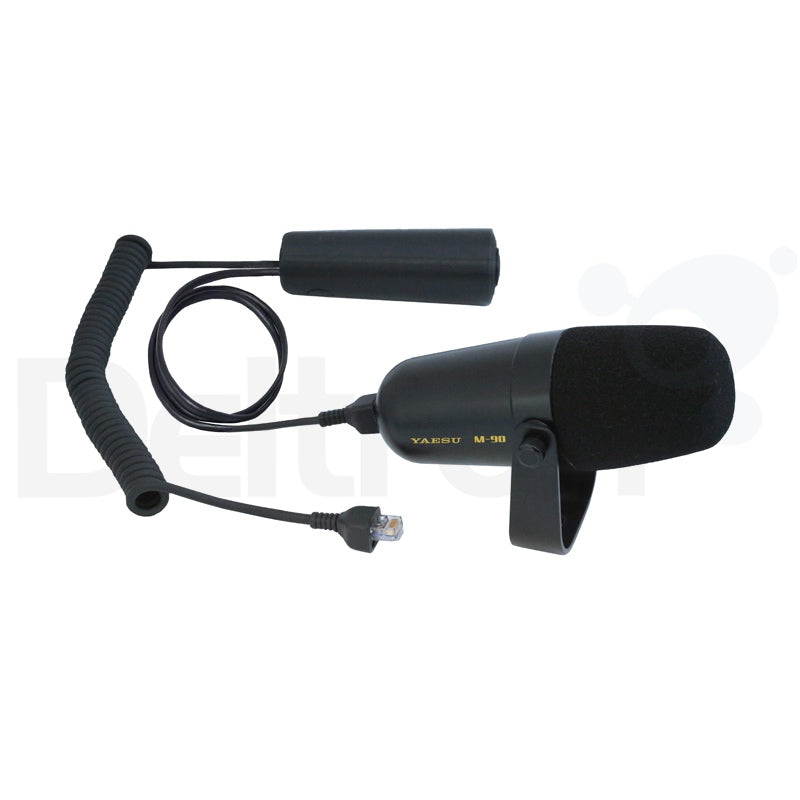

The Yaesu M-90MS Kit is a Microphone Stand Kit which includes W3/8 Nut, a handheld PTT controller and a microphone head which can be mounted on a microphone stand.
Microphone stand is not included. This kit requires a commercially available microphone stand.

The Yaesu M-90MS Kit requires an optional SCU-53 cable to connect to transceivers equipped with the round 8-pin microphone connector.

*Microphone stand is not included in the M-90MS Kit.

Features

  • Suitable for: Yaesu FT-891 / Yaesu FT-991A / Yaesu FT-DX10 / Yaesu FT-DX101D / Yaesu FT-DX101MP /
  • Microphone type: Dynamic
  • Low Cut switch: When this switch is ON, a low-cut filter (cut-off frequency 340 Hz, -6 dB/octave) is activated
  • Microphone connector (including PTT controller): Modular RJ45

Electrical data

  • Frequency response: 30 - 17000 Hz
  • Impedance: 600 Ω
  • Sensitivity: -60 dB (1 kHz 0 dB=1V/1Pa)
  • Current consumption: 15 mA (TYP)
  • Supply voltage: DC 5.0 V ±10 %
  • Mechanical data
  • Diameter: 62 mm
  • Length: 162mm (microphone head size only)
  • Weight: 200 grams (with bracket, without handheld PTT controller
aesu M-90MS microfoonstand kit
Yaesu

Yaesu M-90MS kit

€ 158,95

The Yaesu M-90MS utilizes a dynamic microphone element that is finely tuned to deliver rich low to mid frequency response desirable for a clear and concise conversation.

Using a windscreen cover and a directional microphone element, the structure of the microphone of the Yaesu M-90MS is designed to concentrate voice input from the front while reducing ambient noise from the side.

Built-in Low-Cut filter creates clear and crisp audio characteristics by shaping the low frequency response (cut off at 340Hz, -6dB/octave).

An isolation transformer is integrated into the circuit board in order to enhance the audio quality.

The Yaesu M-90MS* are compatible with all YAESU HF transceivers equipped with the round 8-pin microphone connector or the 8-pin modular microphone connector.

The Yaesu M-90MS Kit is a Microphone Stand Kit which includes W3/8 Nut, a handheld PTT controller and a microphone head which can be mounted on a microphone stand.
Microphone stand is not included. This kit requires a commercially available microphone stand.

The Yaesu M-90MS Kit requires an optional SCU-53 cable to connect to transceivers equipped with the round 8-pin microphone connector.

*Microphone stand is not included in the M-90MS Kit.

Features

  • Suitable for: Yaesu FT-891 / Yaesu FT-991A / Yaesu FT-DX10 / Yaesu FT-DX101D / Yaesu FT-DX101MP /
  • Microphone type: Dynamic
  • Low Cut switch: When this switch is ON, a low-cut filter (cut-off frequency 340 Hz, -6 dB/octave) is activated
  • Microphone connector (including PTT controller): Modular RJ45

Electrical data

  • Frequency response: 30 - 17000 Hz
  • Impedance: 600 Ω
  • Sensitivity: -60 dB (1 kHz 0 dB=1V/1Pa)
  • Current consumption: 15 mA (TYP)
  • Supply voltage: DC 5.0 V ±10 %
  • Mechanical data
  • Diameter: 62 mm
  • Length: 162mm (microphone head size only)
  • Weight: 200 grams (with bracket, without handheld PTT controller
