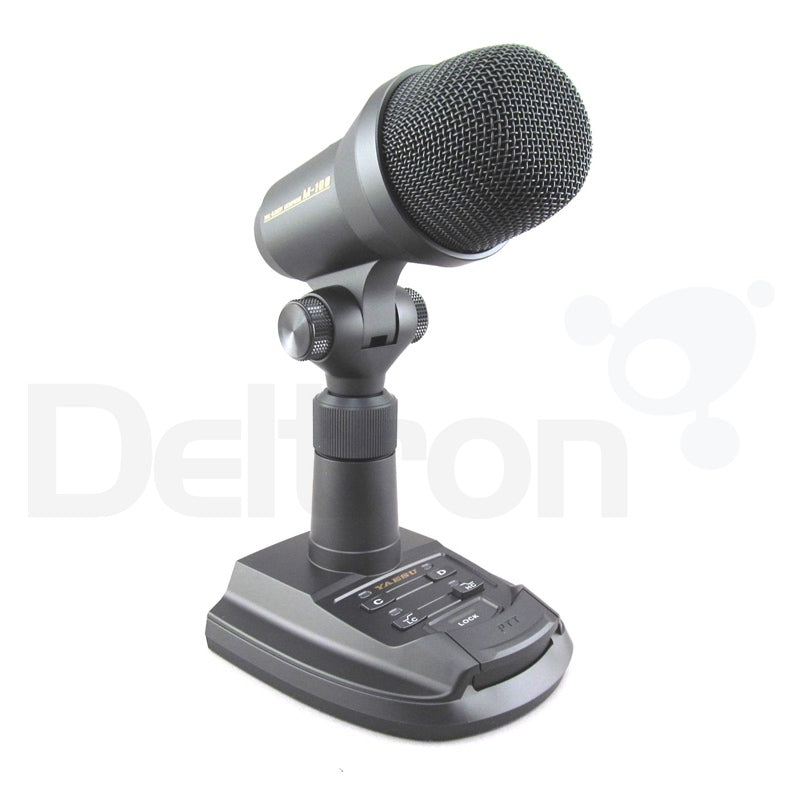

Yaesu M-100

The Yaesu M-100 is a high-quality and robust desktop microphone. Uses a directional capacitor and a dynamic microphone element with specially tuned frequency response.

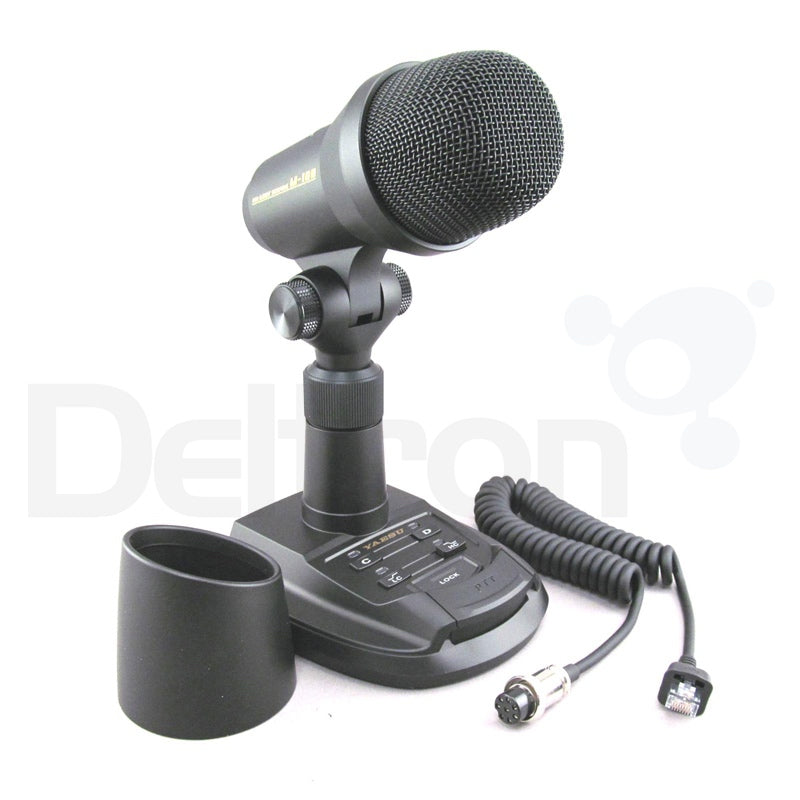

For use with most modern Yaesu transceivers that have the 'modular' or '8-pin' microphone connection. A 'modular' to '8-pin' microphone cable is included, which can be used in both ways by turning it over. So no additional microphone cable is required.

If your transceiver is not listed, please contact us to check compatibility for you.

The Yaesu M-100 table microphone is suitable for the models below

• Yaesu FT-450


• Yaesu FT-817


• Yaesu FT-847


• Yaesu FT-857


• Yaesu FT-891


• Yaesu FT-897


• Yaesu FT-900


• Yaesu FT-920


• Yaesu FT-950


• Yaesu FT-991A

Features Yaesu M-100

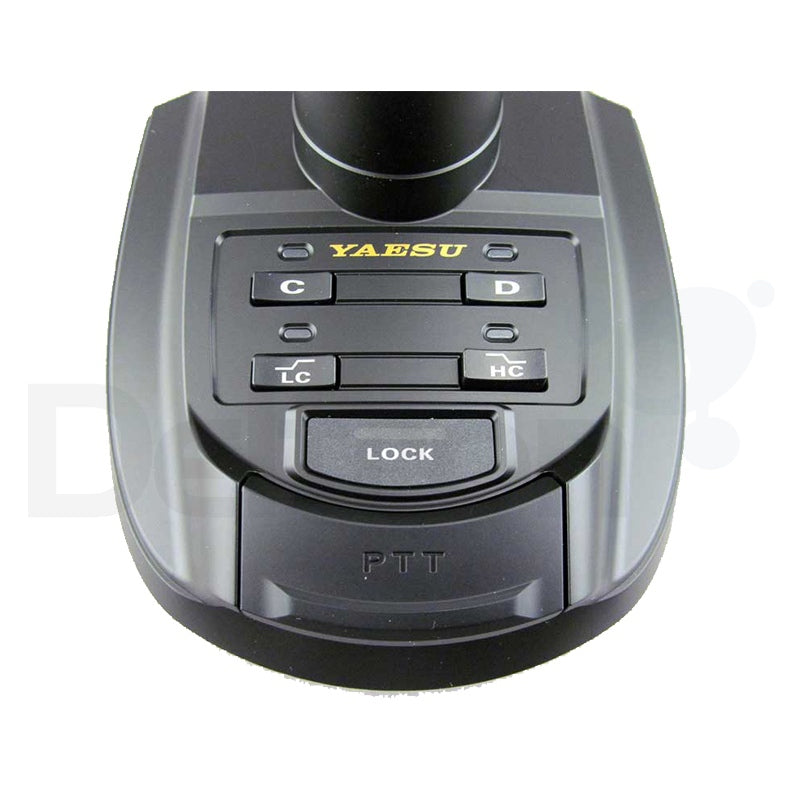

• With key lock (button lock)


• Dynamic and condenser microphone


• Low Cut switch: cut-off frequency 340 Hz, -6 dB


• High Cut switch: cut-off frequency 2 kHz, -6 dB


• With "On Air" indicator

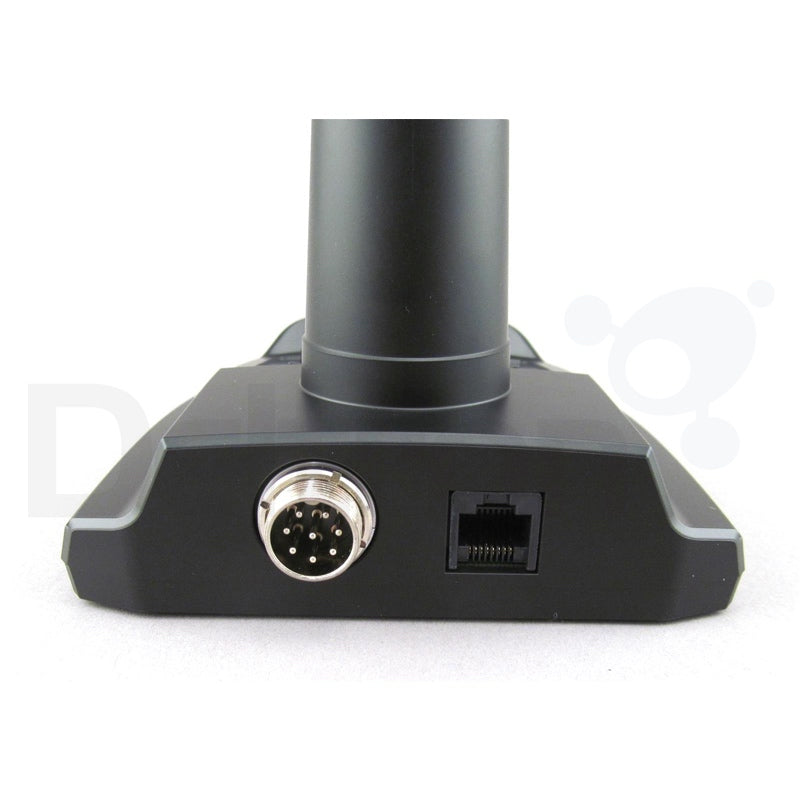

• Microphone connector: 8-Pin / RJ45


• Frequency response: 30 - 17000 Hz


• Impedance: 600 Ohms


• Sensitivity: -60 dB


• Current consumption: 35 mA


• Voltage: DC 5.0 V ±10 %


• Dimensions: L 140 mm x H 280 mm x W 152 mm


• Weight: 960 grams

Package contents

• 1x Yaesu M-100 desktop microphone


• 1x Manual in English
