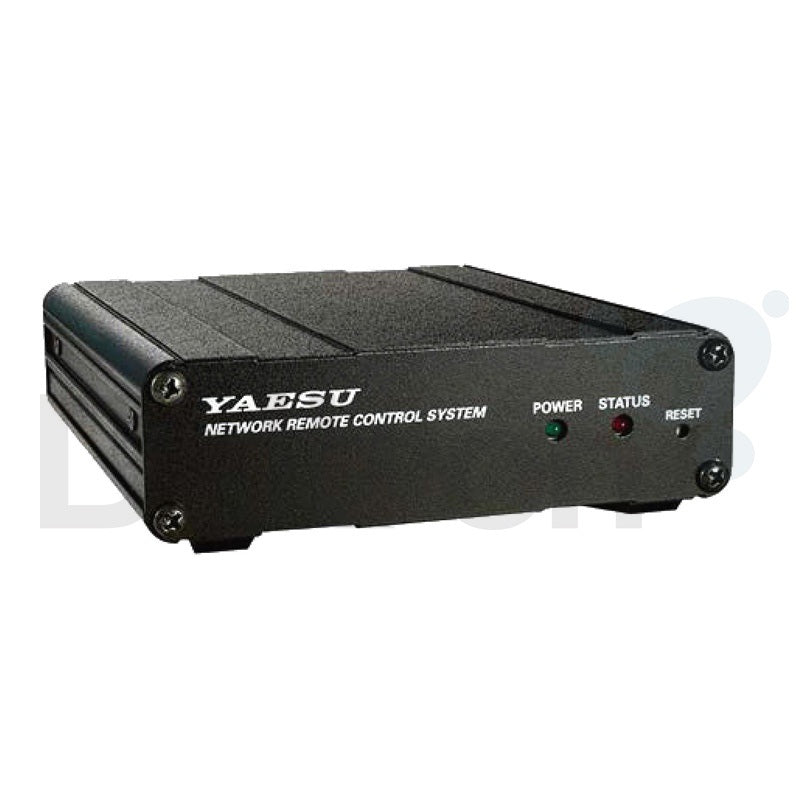

Yaesu SCU-LAN10 interface

The Yaesu SCU-LAN10 opens up a whole world of control for your Yaesu transceiver from anywhere in the world! Most transceivers require a computer to operate over the Internet.

Yaesu has deliberately not built a network interface in its top-range transceivers. Instead, there is now the SCU-LAN10 interface that allows you to control your transceiver from anywhere in the world. The Yaesu SCU-LAN10 can easily be connected to the Yaesu FT-DX10, FT-DX101D, Yaesu FT-710* or the Yaesu FT-DX101MP using a USB cable and a LAN port with ethernet cable on the router. the House. Using the free Yaesu Remoter control software (for Windows 7/8/19, 32 and 64 bits, remote access to the transceiver is possible from anywhere in the world.

*Note for use with Yaesu FT-710: Check the firmware of both devices and update the firmware if necessary.

Yaesu remote control software

With Yaesu's 'Remote Control Software' you can control your transceiver as if you were sitting right next to it, while perhaps operating it from a hotel room in Tokyo. The only thing you need is a standard PC headset. The PTT control on a computer works with the mouse and the large computer screen can be optimally used because the waterfall layout and display of both bands can be cleverly combined and divided with the controls. If you only want to listen to the received audio, the bandscope can be displayed in full screen.

NB !

The FT-DX101D and FT-DX101MP transceivers must be equipped with the software versions below (or newer) to use the SCU-LAN10 interface;

• MAIN V01-14


• DISPLAY V01-06


• IF DSP V01-05


• SDR V02-03

Features Yaesu SCU-LAN10 interface

• This is suitable for



  • Yaesu FT-DX10


  • Yaesu FT-DX101


  • Yaesu FT-DX101MP


  • Yaesu FT-710 - provided both devices have good firmware






• Voltage: 13.8 Volts


• Power consumption: 800 mA


• Operating temperature: 0° to 50° C


• Dimensions: L 135 mm x H 31.5 mm x W 111 mm


• Weight: 420 grams

Package contents

• 1x Yaesu SCU-LAN10 interface


• 1x 13-pin DIN plug connection cable


• 1x USB AB cable


• 2x Ferrite core


• 1x Manual in English
